Description

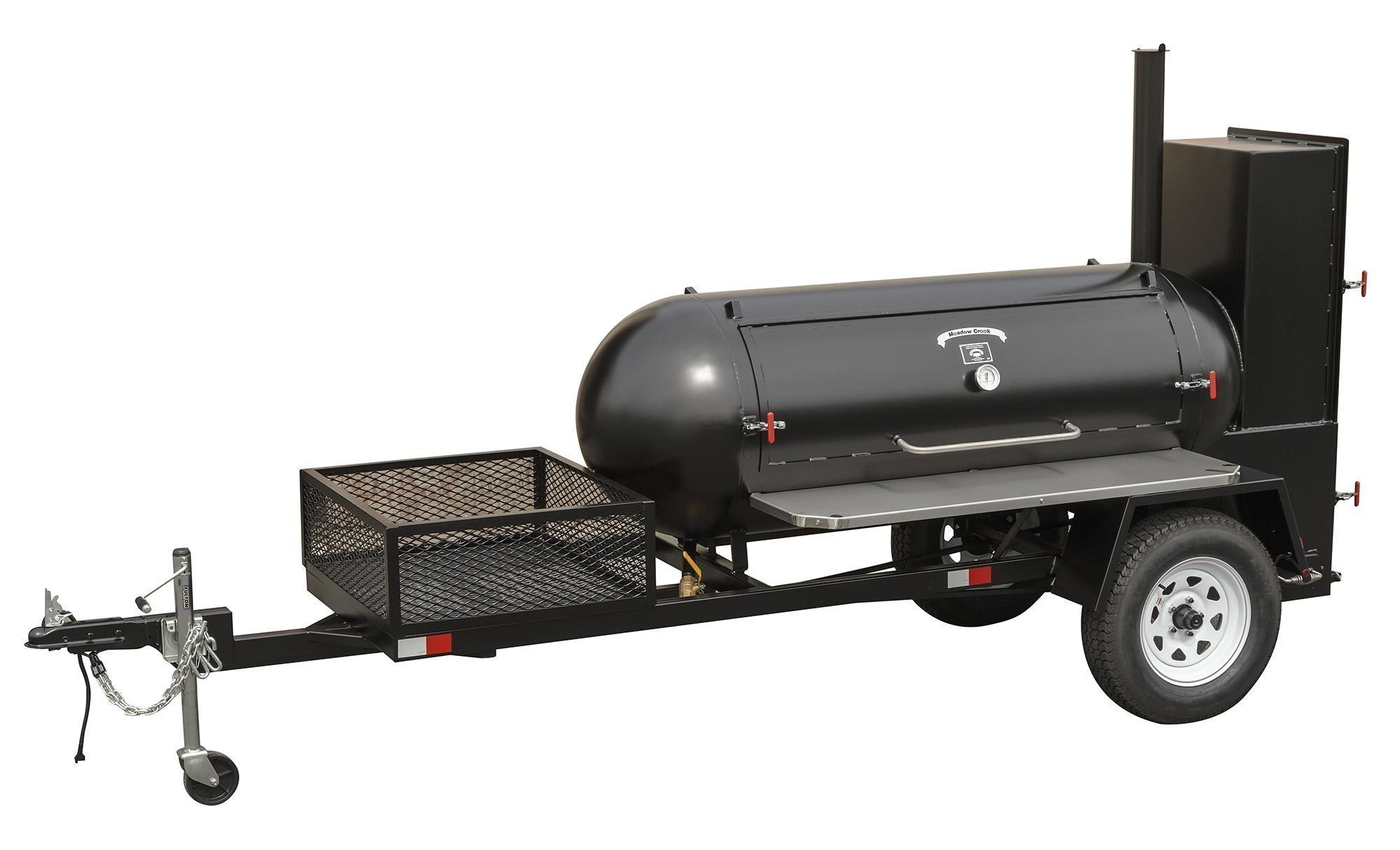

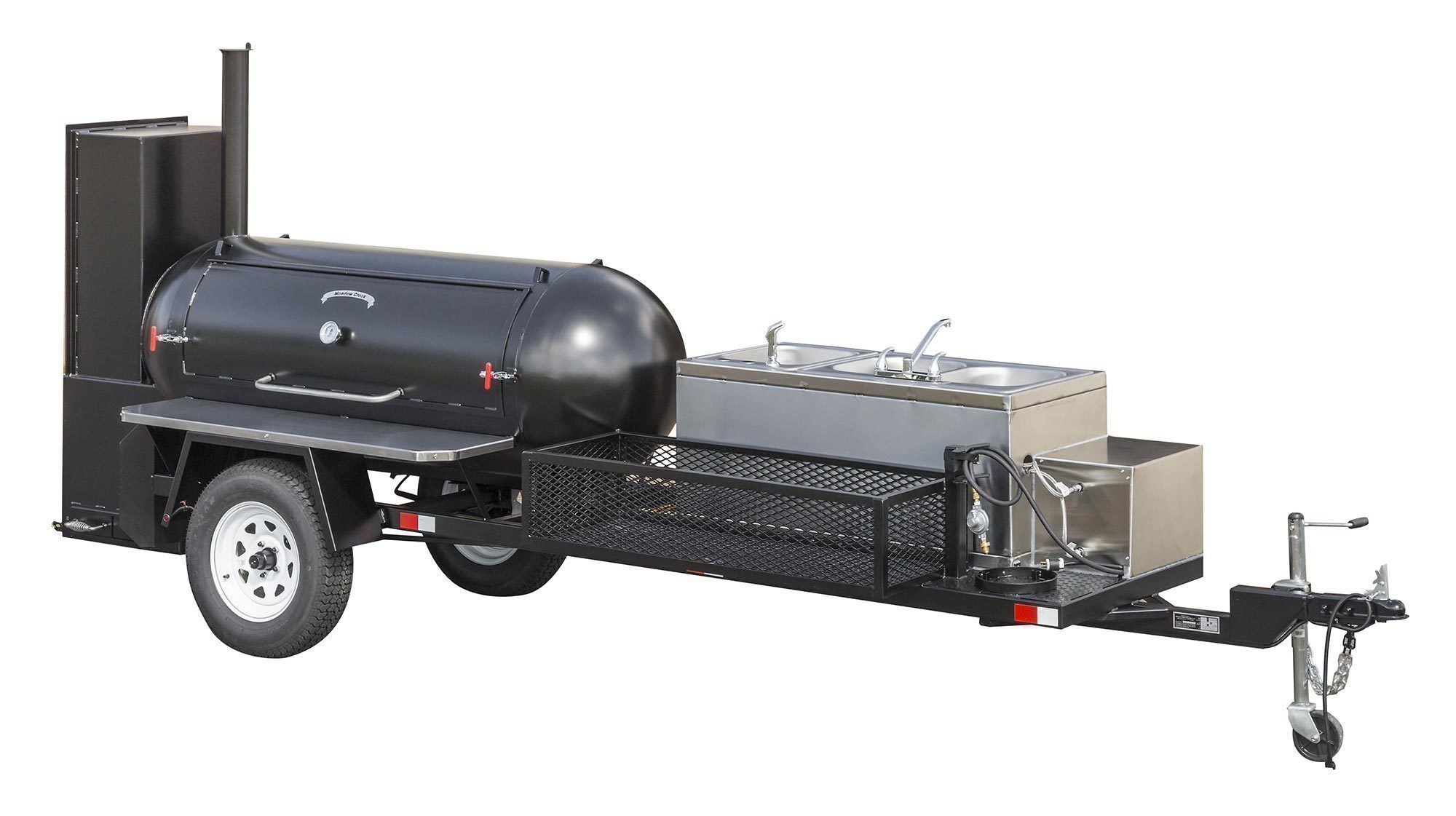

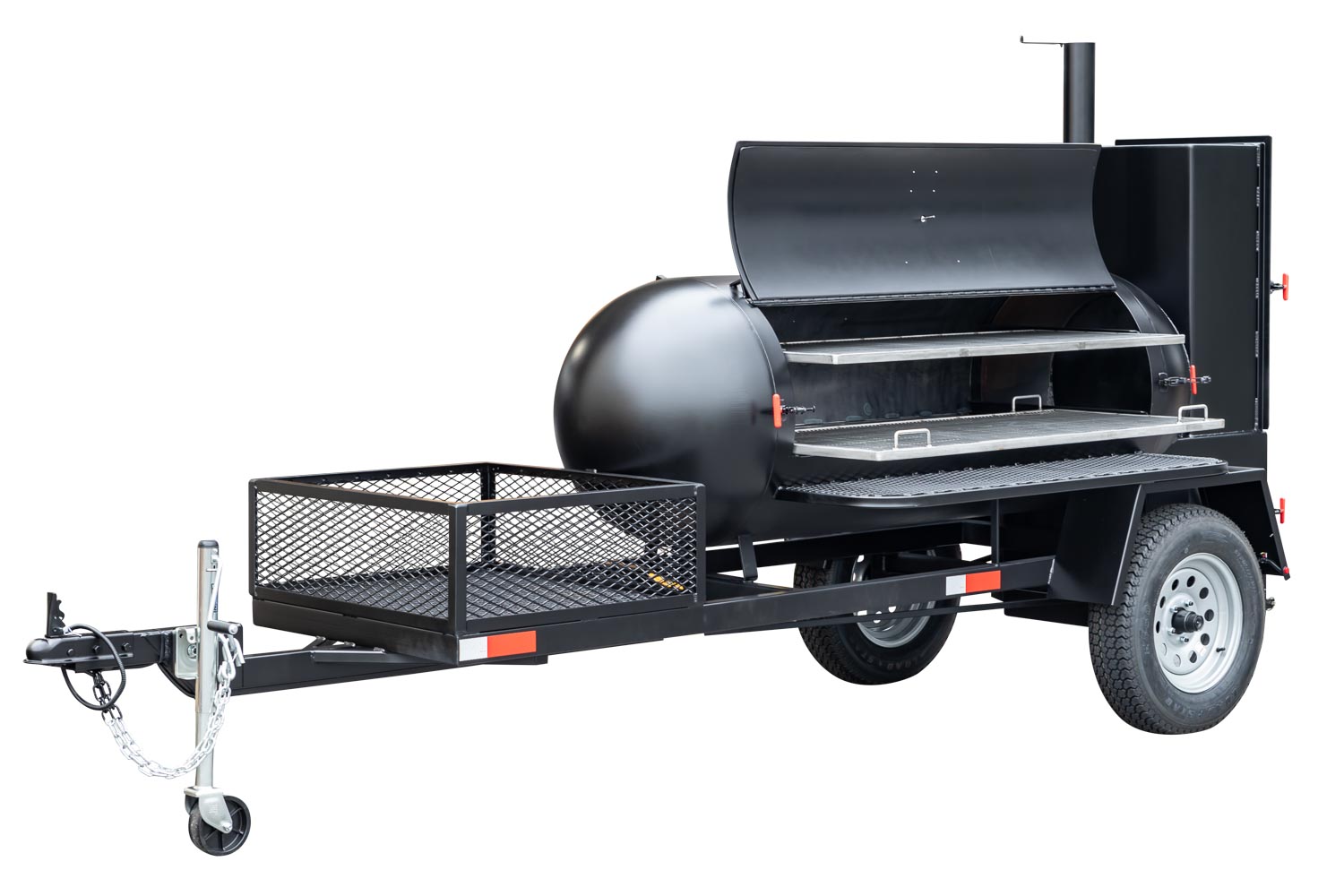

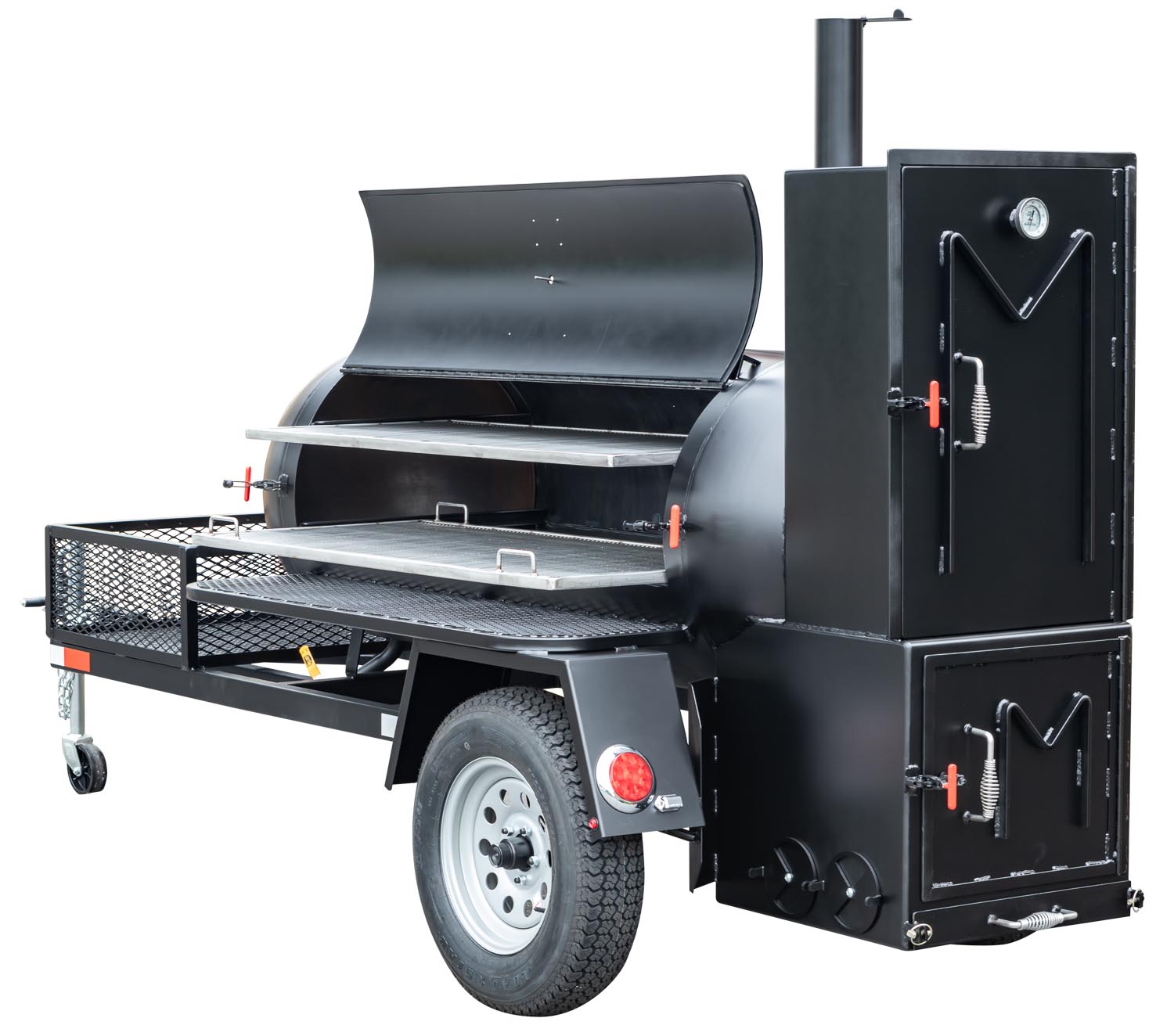

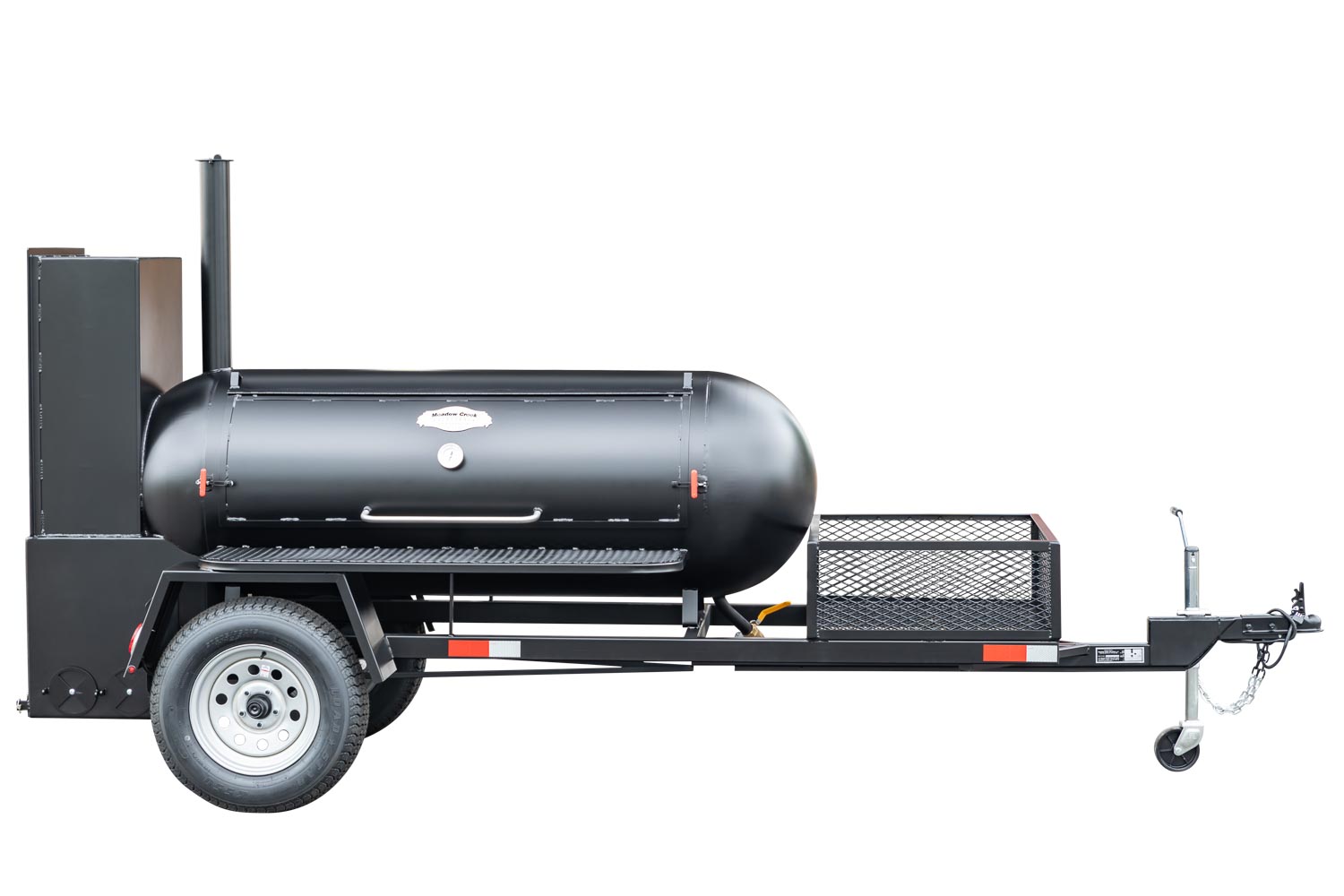

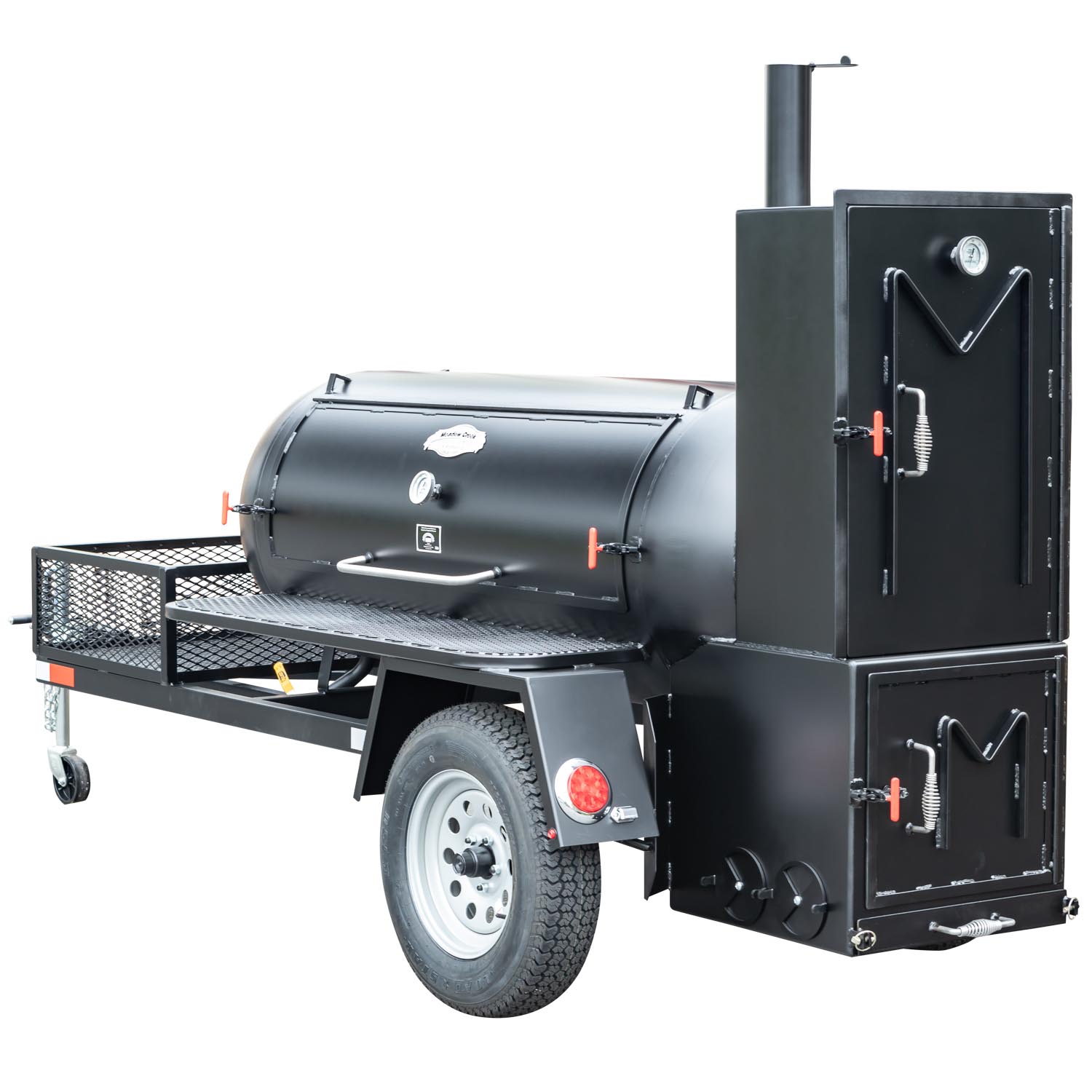

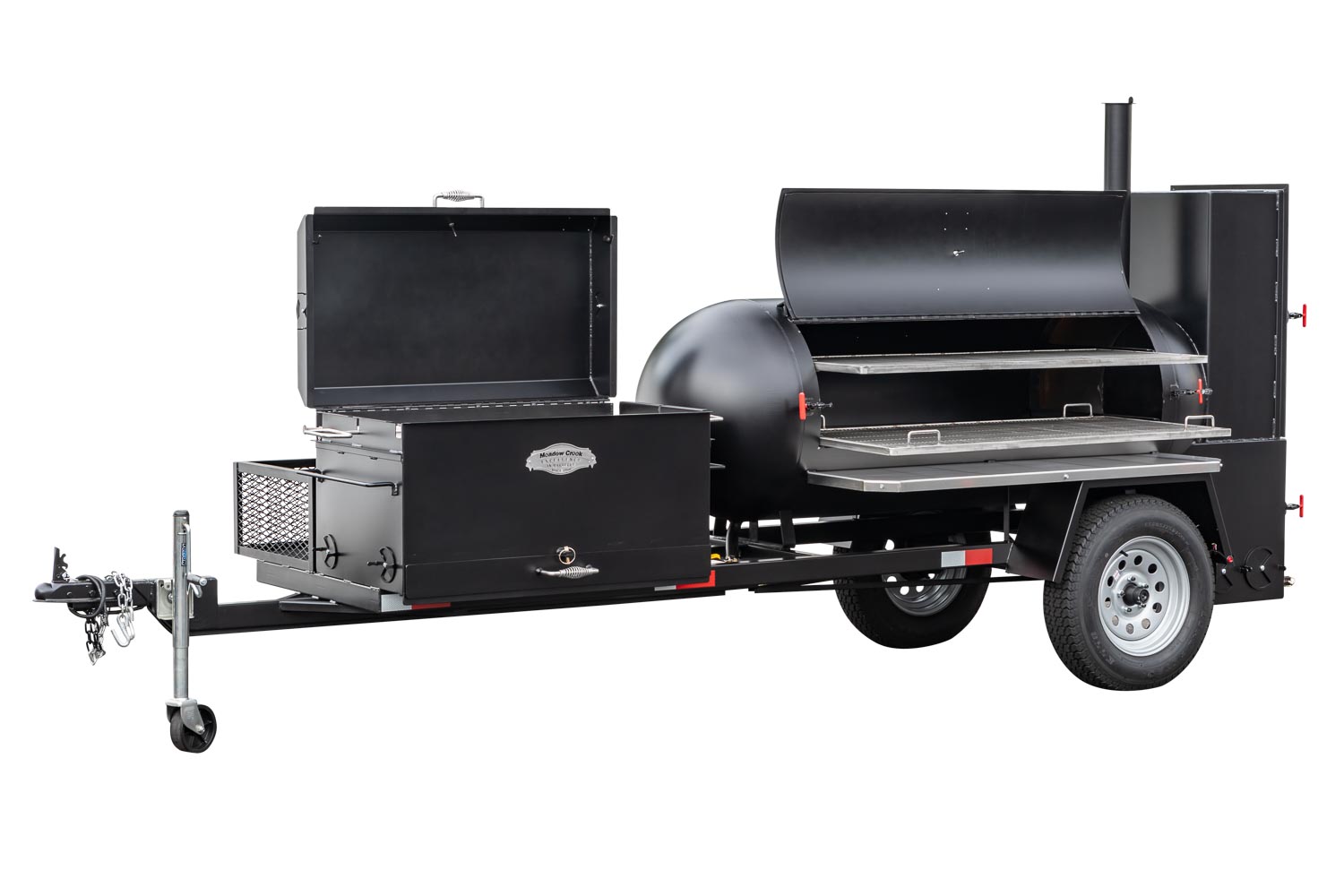

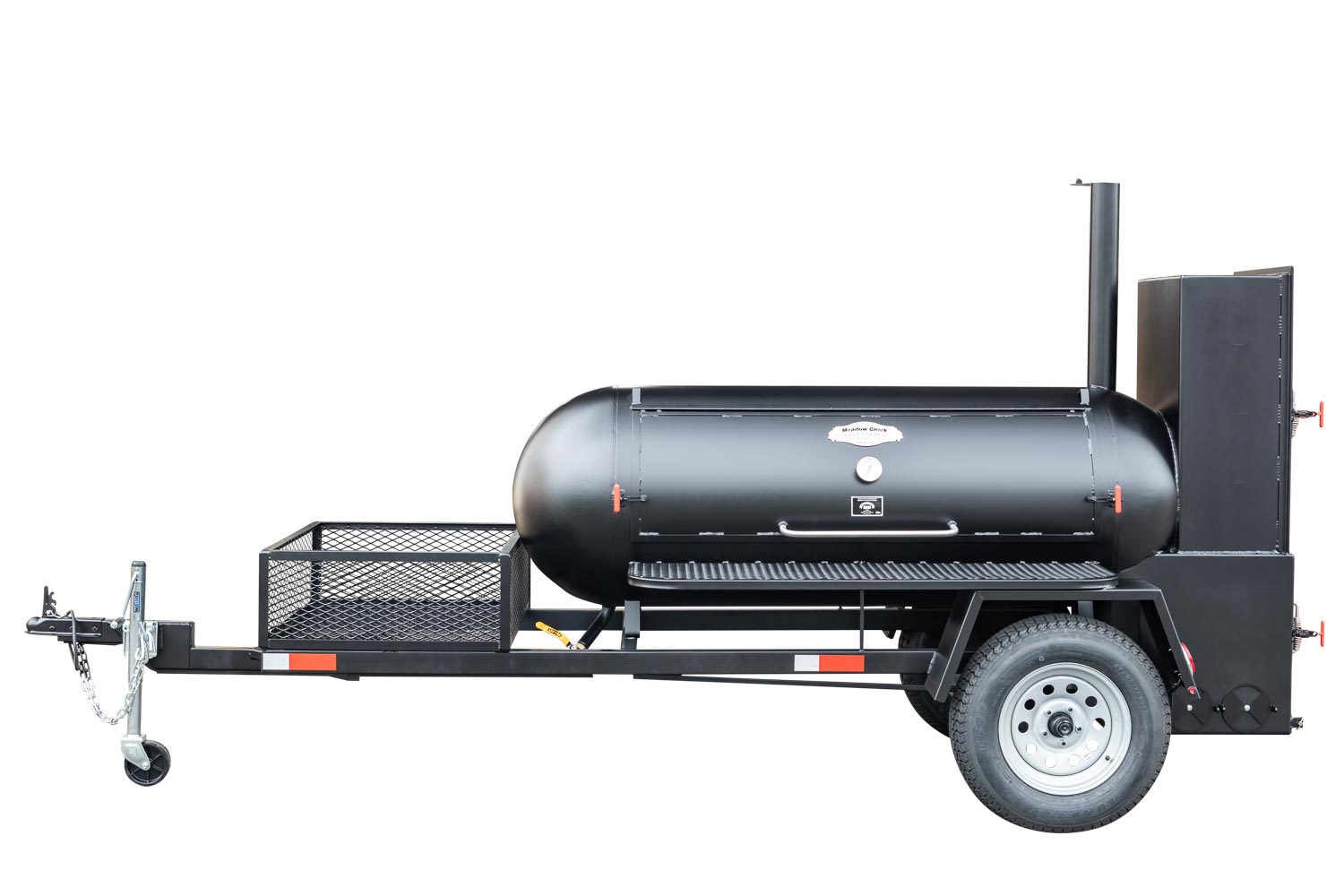

TS250 Tank Smoker Trailer with Optional BBQ42, Trim Package, and Stainless Steel Exterior Shelves

Barbecue purists know the best part of barbecue is low and slow smoking… low temperatures and slow cooking allow flavor to develop in a natural, delicious way. This high end reverse flow smoker makes it a breeze to crank out amazing barbecue while still giving you the fun of poking coals in an offset firebox.

As with all Meadow Creek equipment, the workmanship on the TS250 BBQ Smoker is outstanding—from the heavy duty doors and lids to the non-rusting food grade stainless steel grates and the rounding of otherwise sharp and unhandy corners. Everything is built to give you the best cooking experience possible on an offset smoker.

Deck it out with a chicken cooker grill, stainless steel work shelves, insulated firebox, and a trim package, and you’re ready to roll smoke and crank out amazing barbecue for your clients and friends in class!

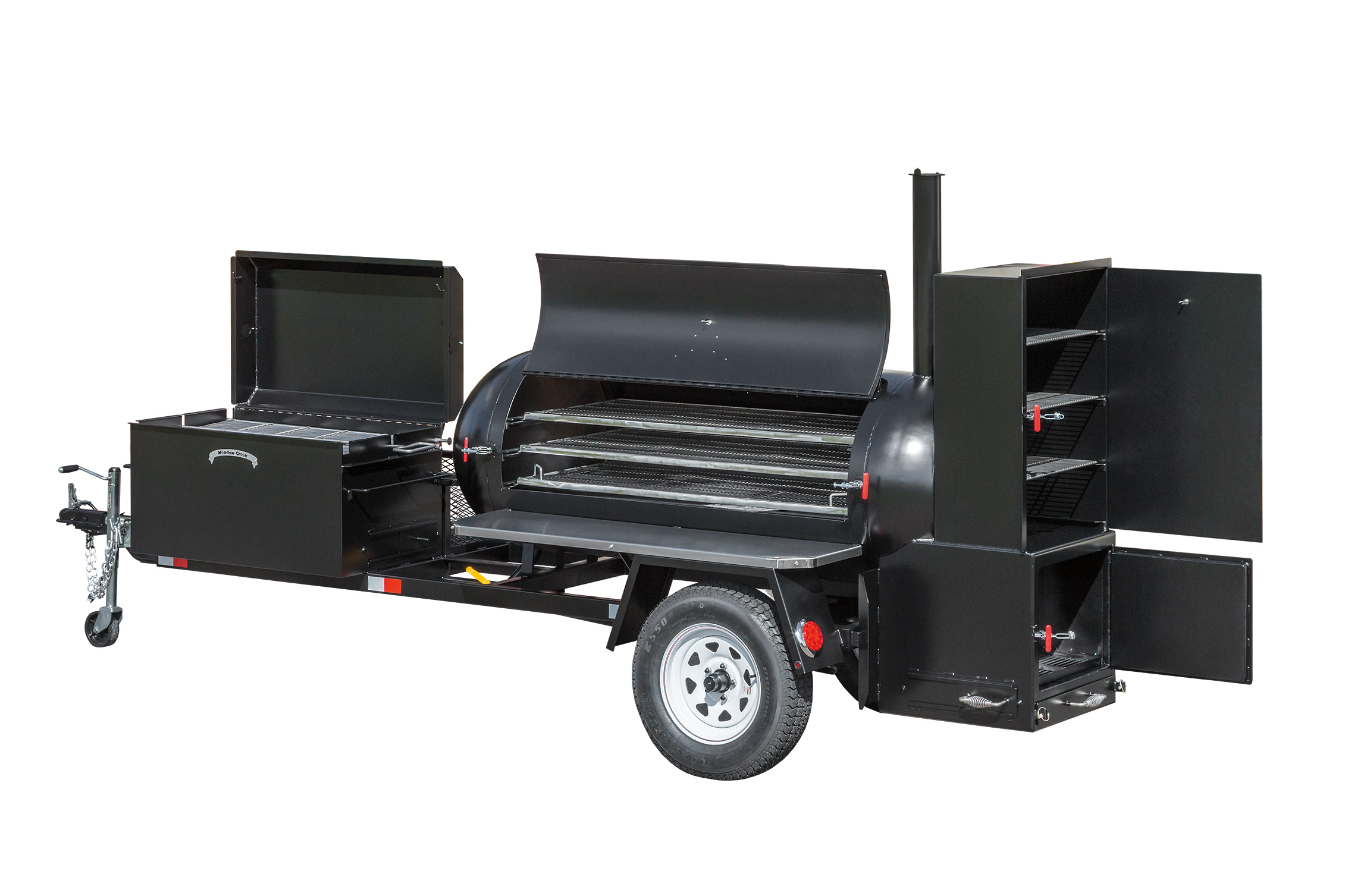

The TS250 BBQ Smoker is like the Meadow Creek TS120 BBQ Smoker except it offers 17 square feet of cooking space instead of 11.

The TS250 is a fine option for mobile chefs and serious barbecue enthusiasts. Whether you are cooking for clients or friends and neighbors, this rig will help make your dream of cranking out delicious, mouth-watering barbecue a fun and fulfilling reality.

SPEC sheet

ABOUT Meadow Creek Smokers

owners manual

Videos of the TS250 Tank Smoker Trailer, also knows as "Big Black"

Equipped with a BBQ42 Chicken Cooker and the optional Insulated Firebox, Charcoal Slide-Out Basket, Stainless Steel Exterior Shelves, Trim Package, and Live Smoke in Warming Box.

Tomahawk Steaks, Beef Short Ribs, and More on the Meadow Creek TS250 Tank Smoker

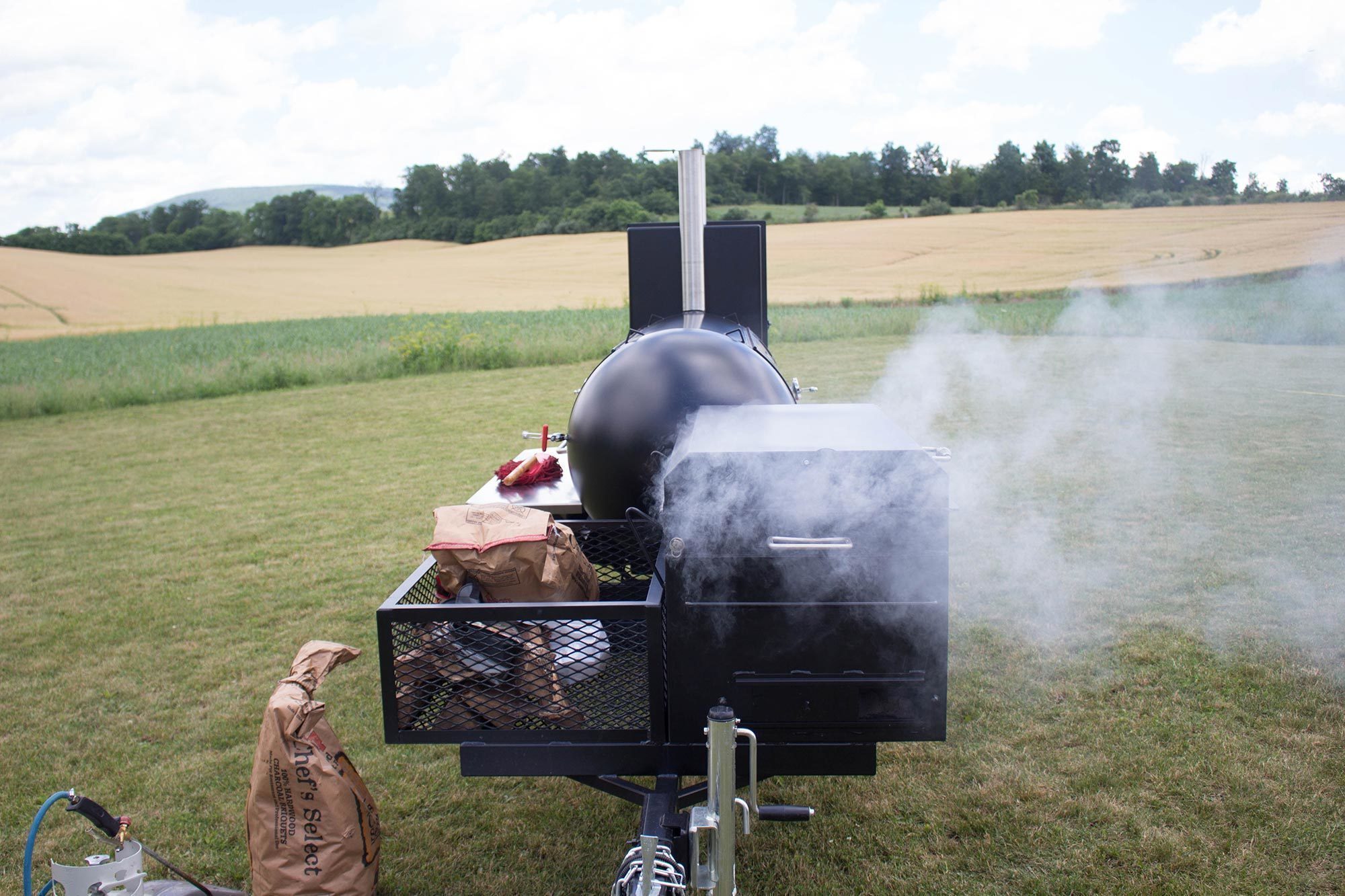

Grilling and Smoking on a Meadow Creek Barbecue Smoker Trailer

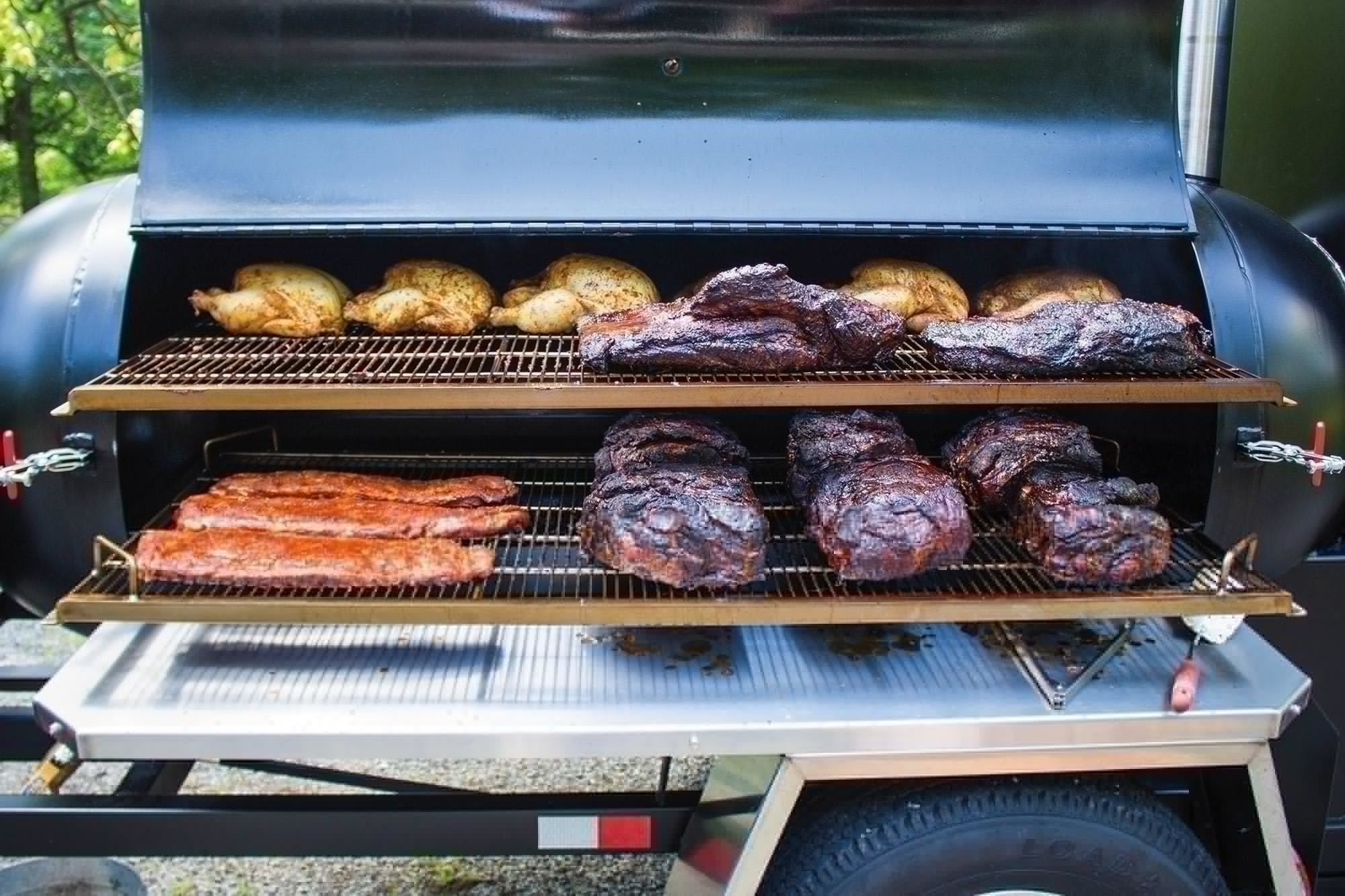

Ribs, Sausage, and Chicken on a Meadow Creek TS250 Smoker Trailer

Cooking for Hundreds on a Meadow Creek TS250 Offset Smoker

Key Features of the TS250 Tank Smoker Trailer

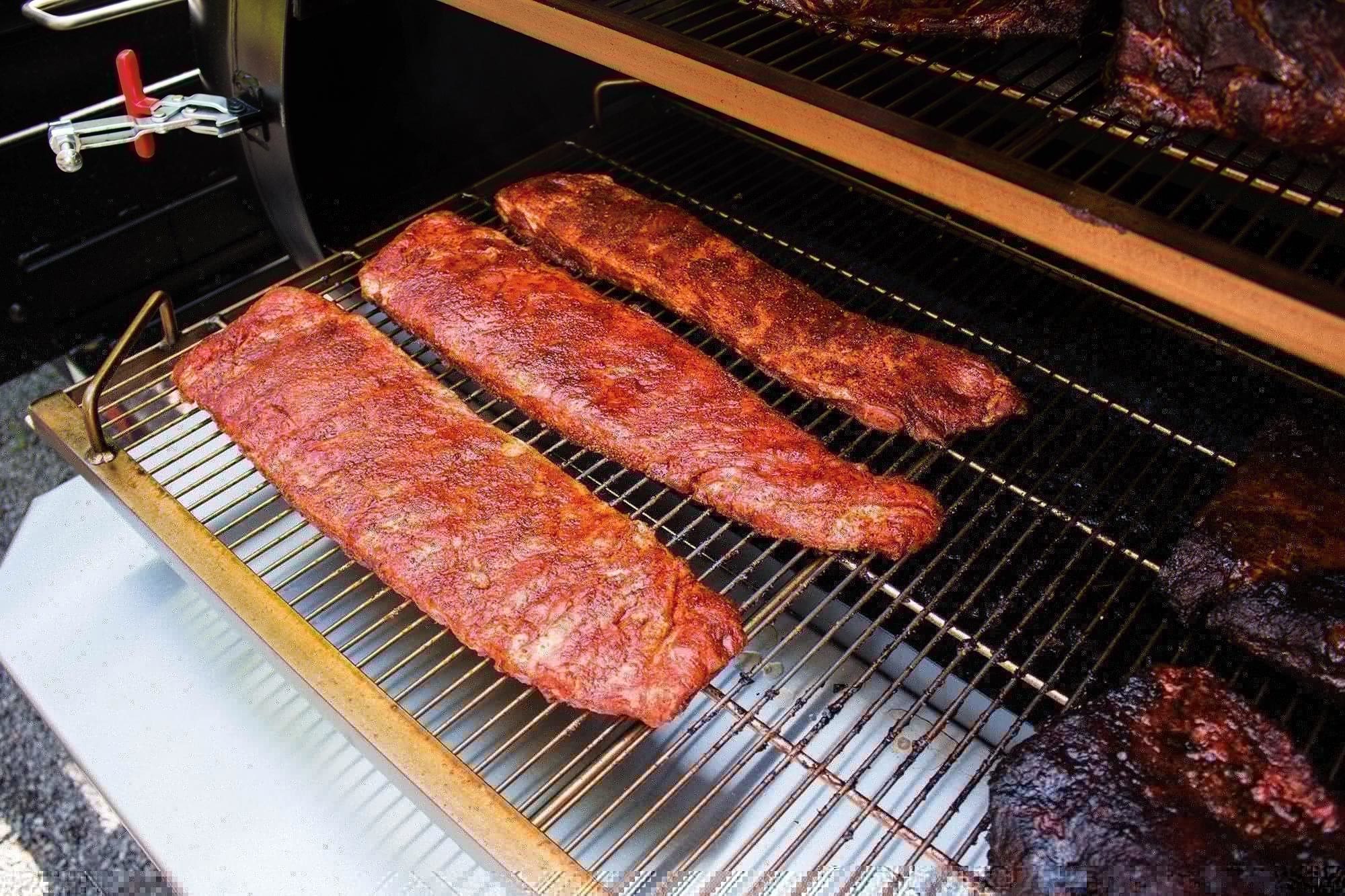

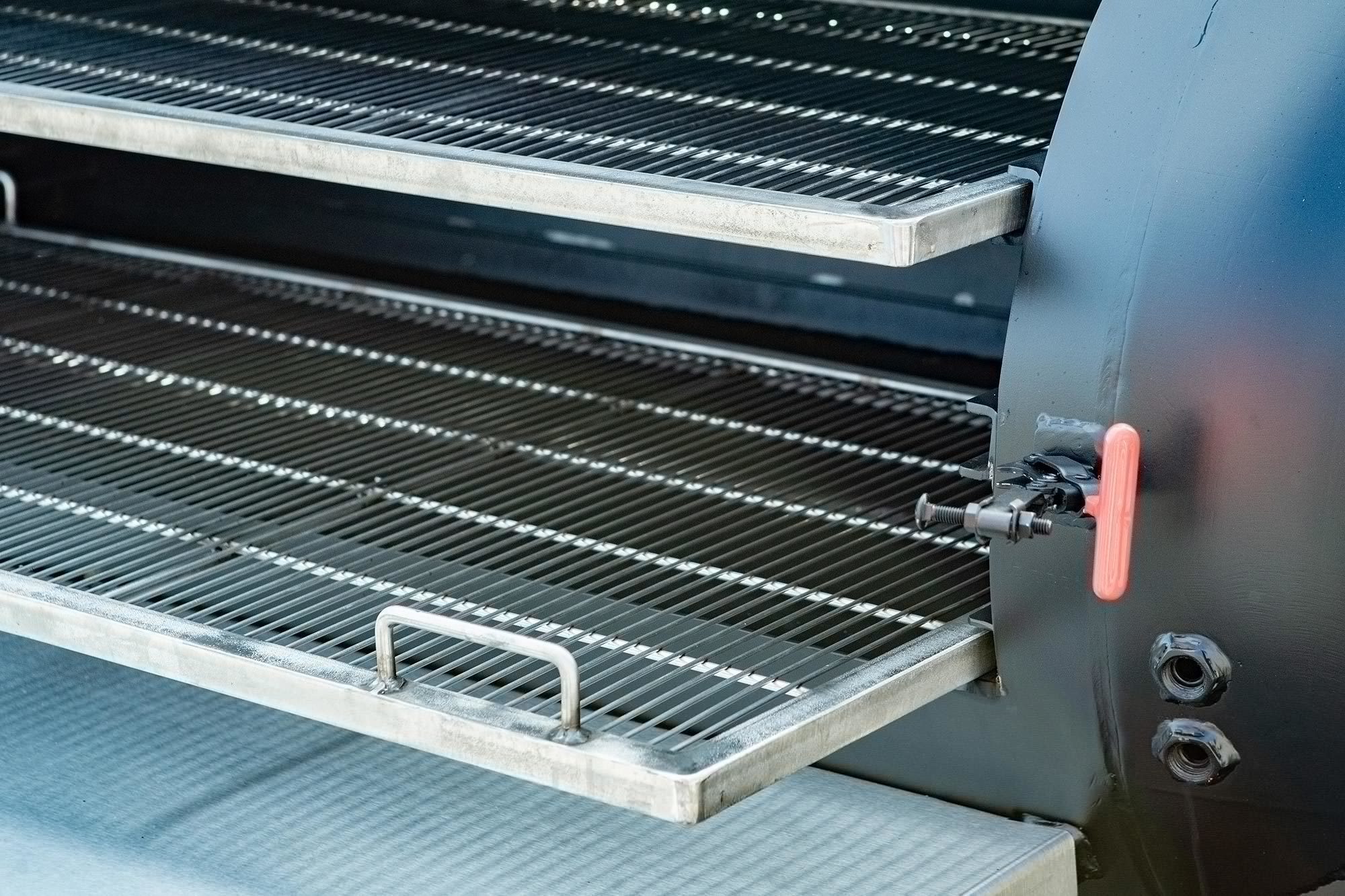

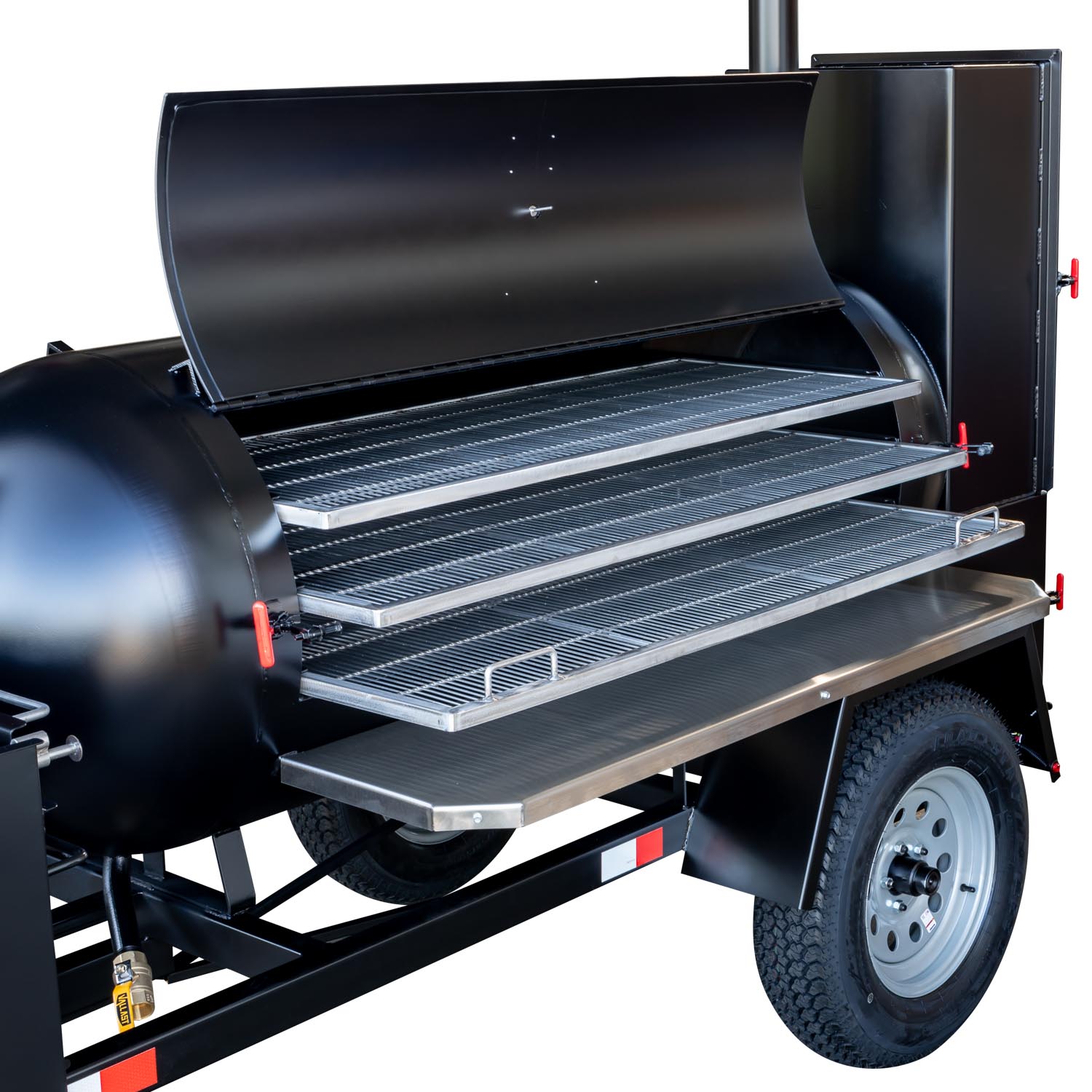

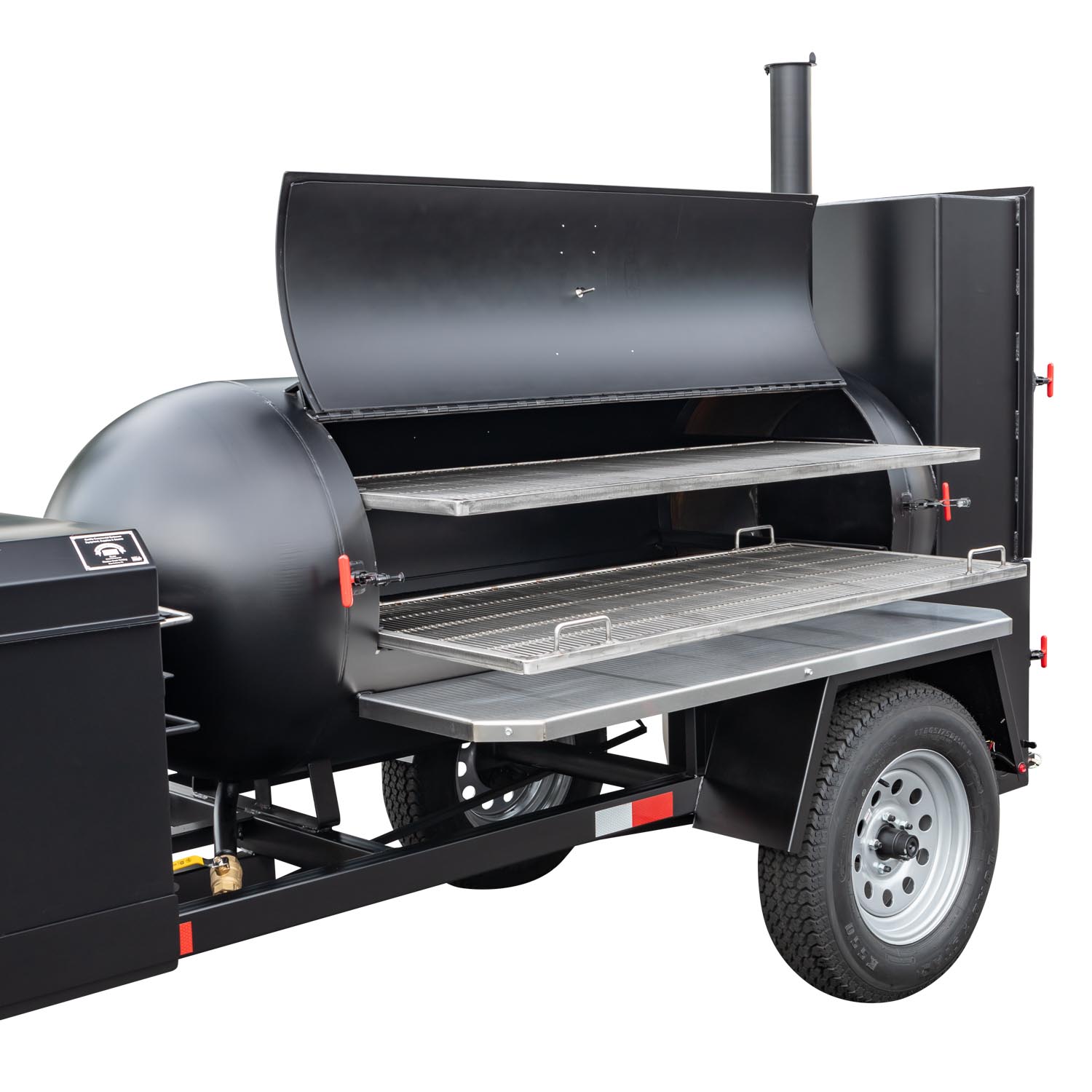

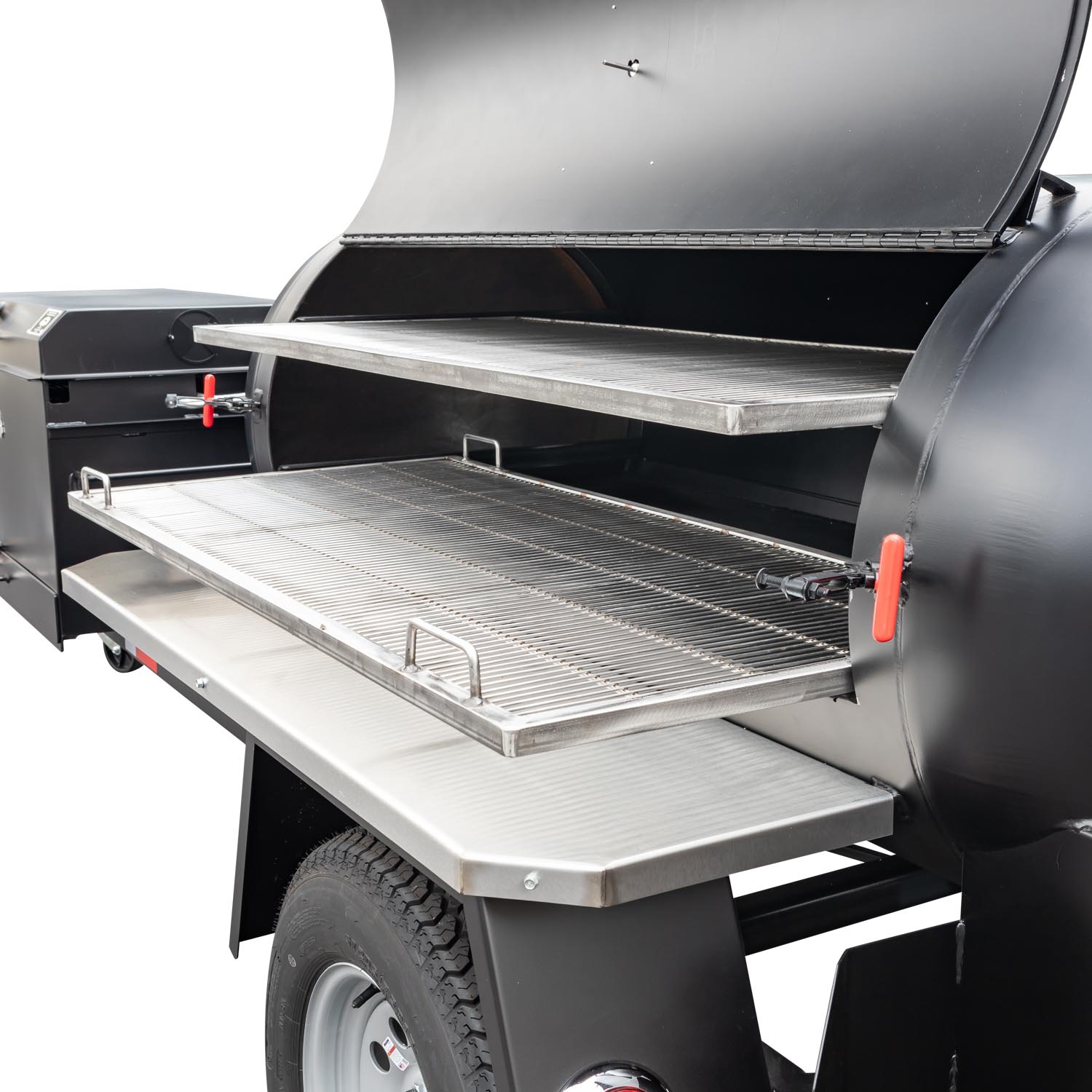

Sliding Stainless Steel Grates

High capacity stainless steel grates are easy to clean and will never rust.

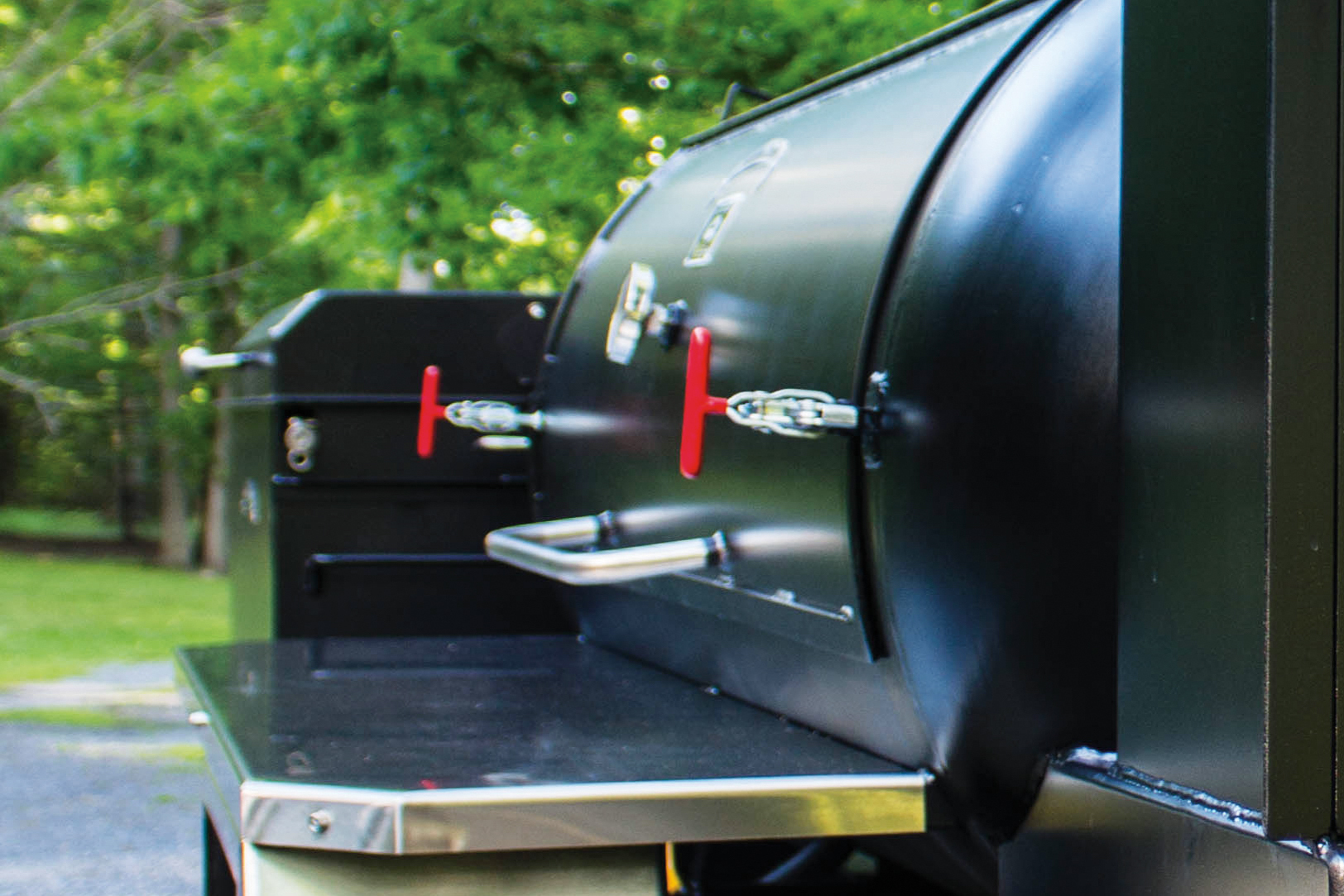

Positive Lock Latches

Securely hold the lid shut with convenient adjustable positive lock latches.

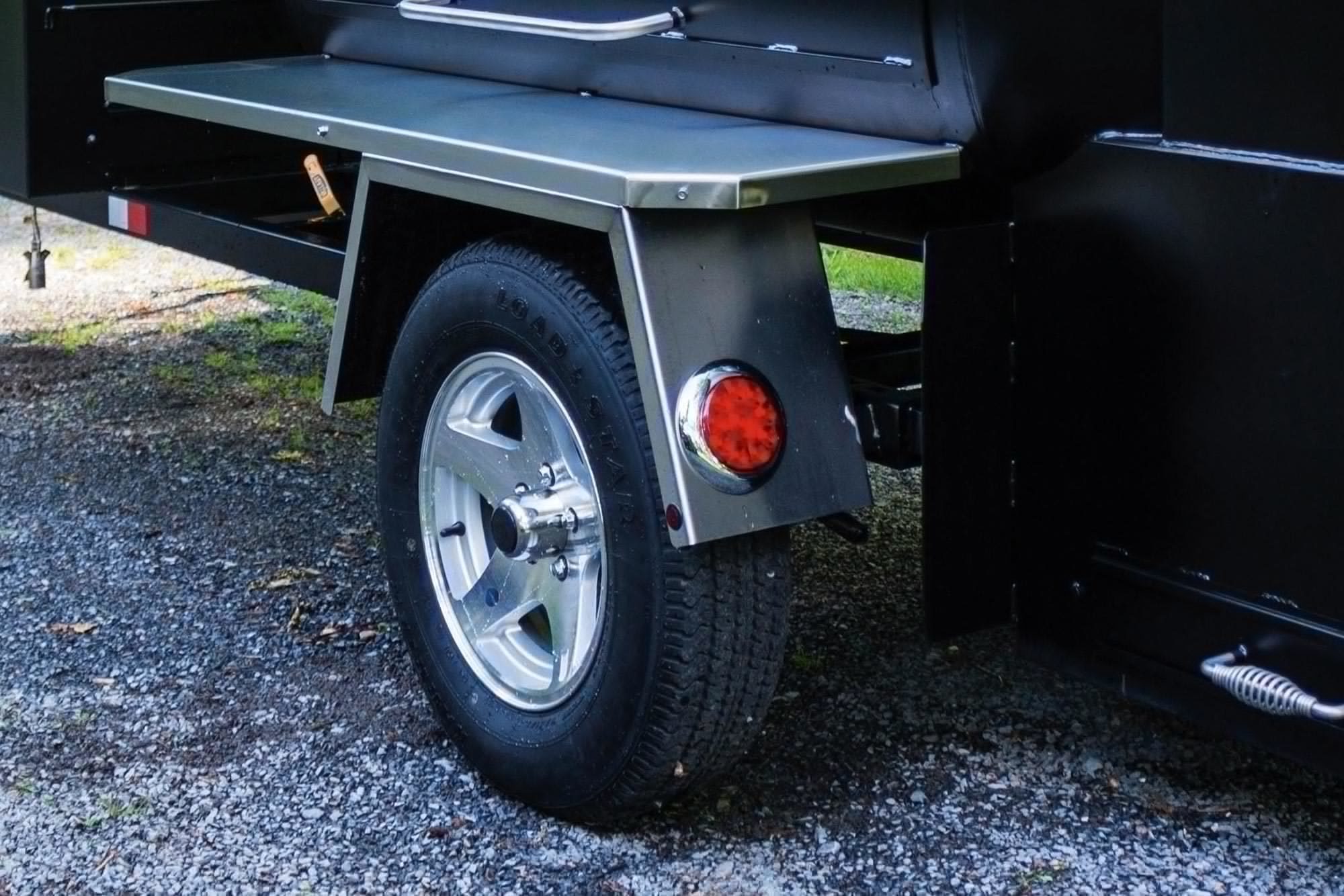

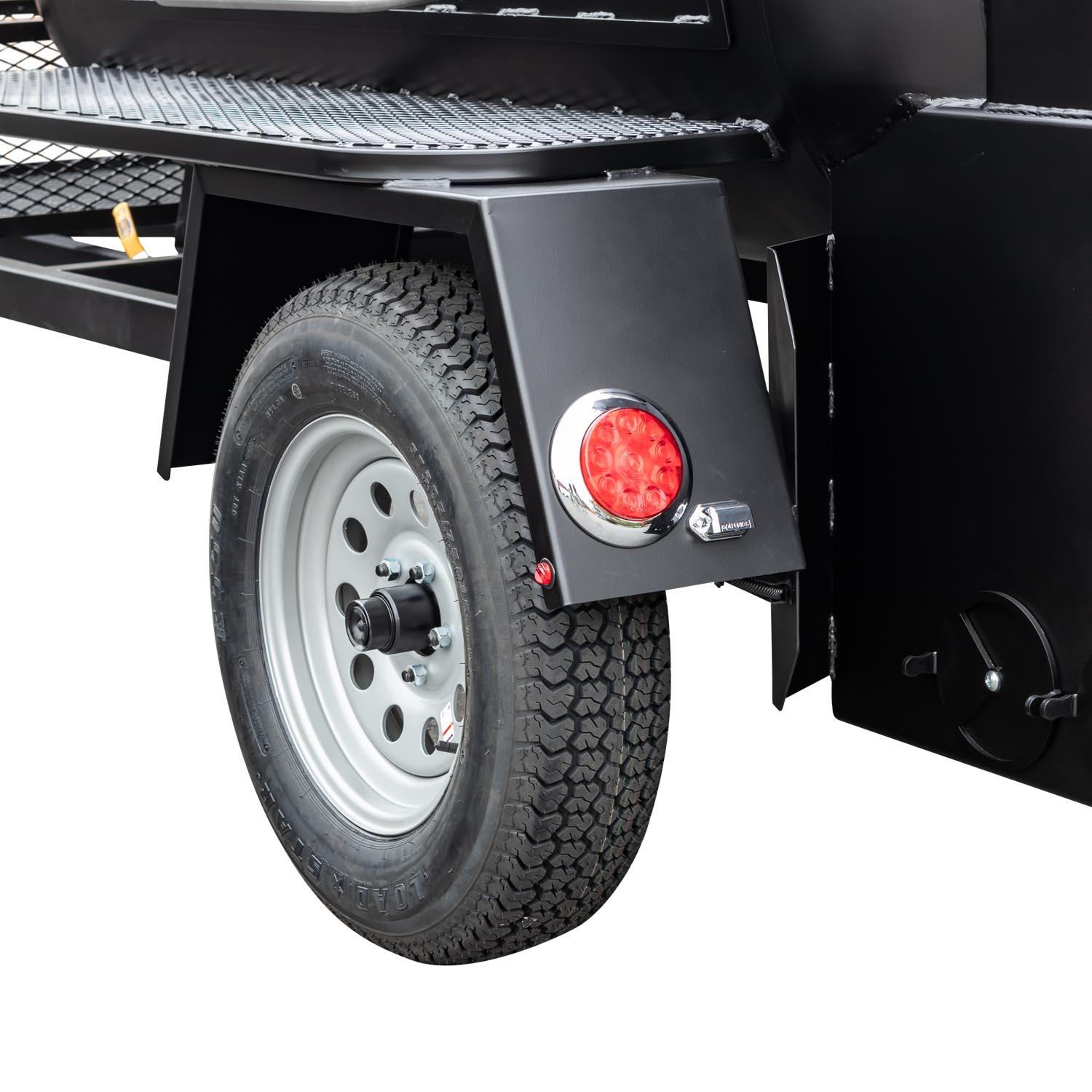

LED Lighting

Bright, flush-mount LED lights give your trailer a clean, safe, and modern touch.

Smoked Ham Loaf on Meadow Creek SQ36 Offset Smoker

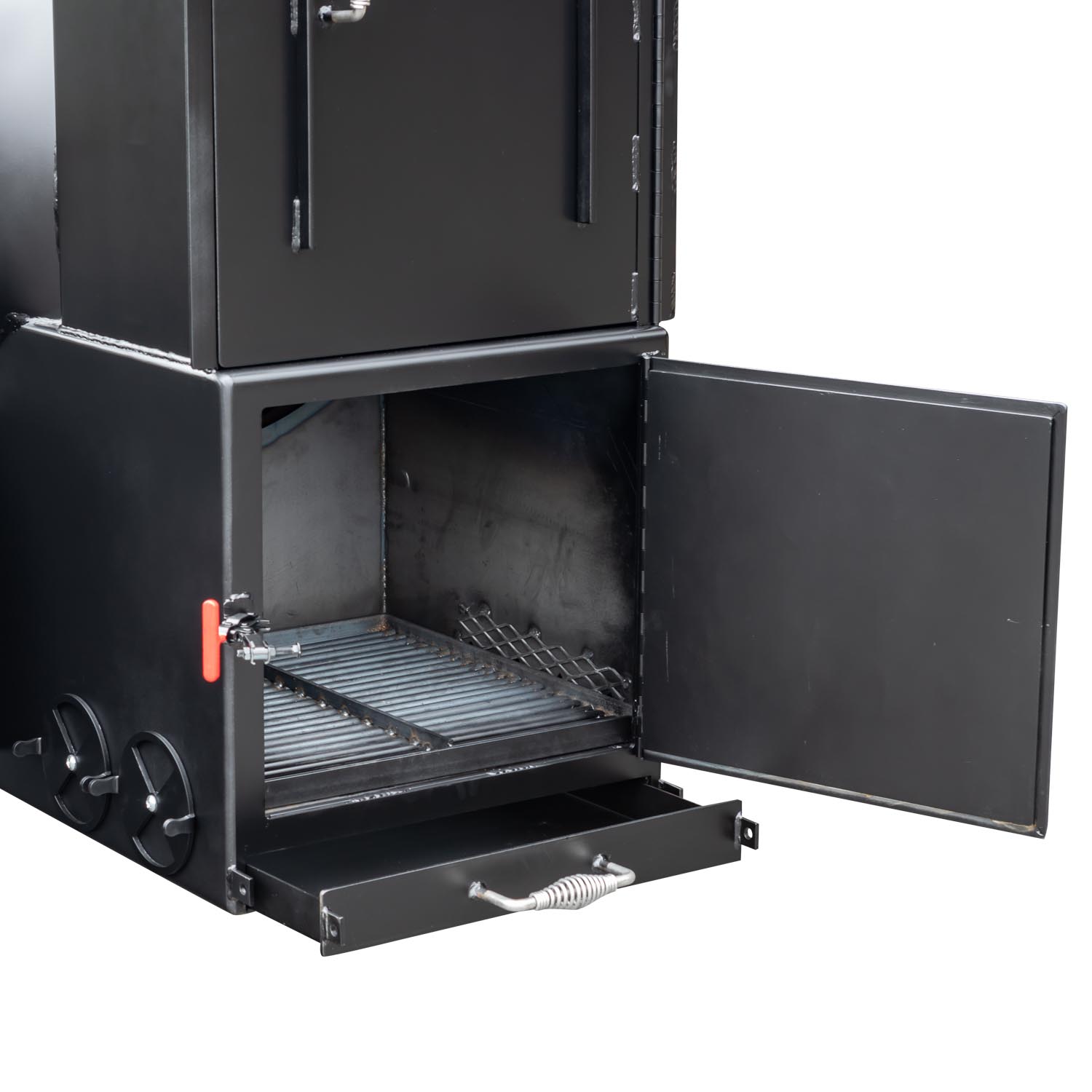

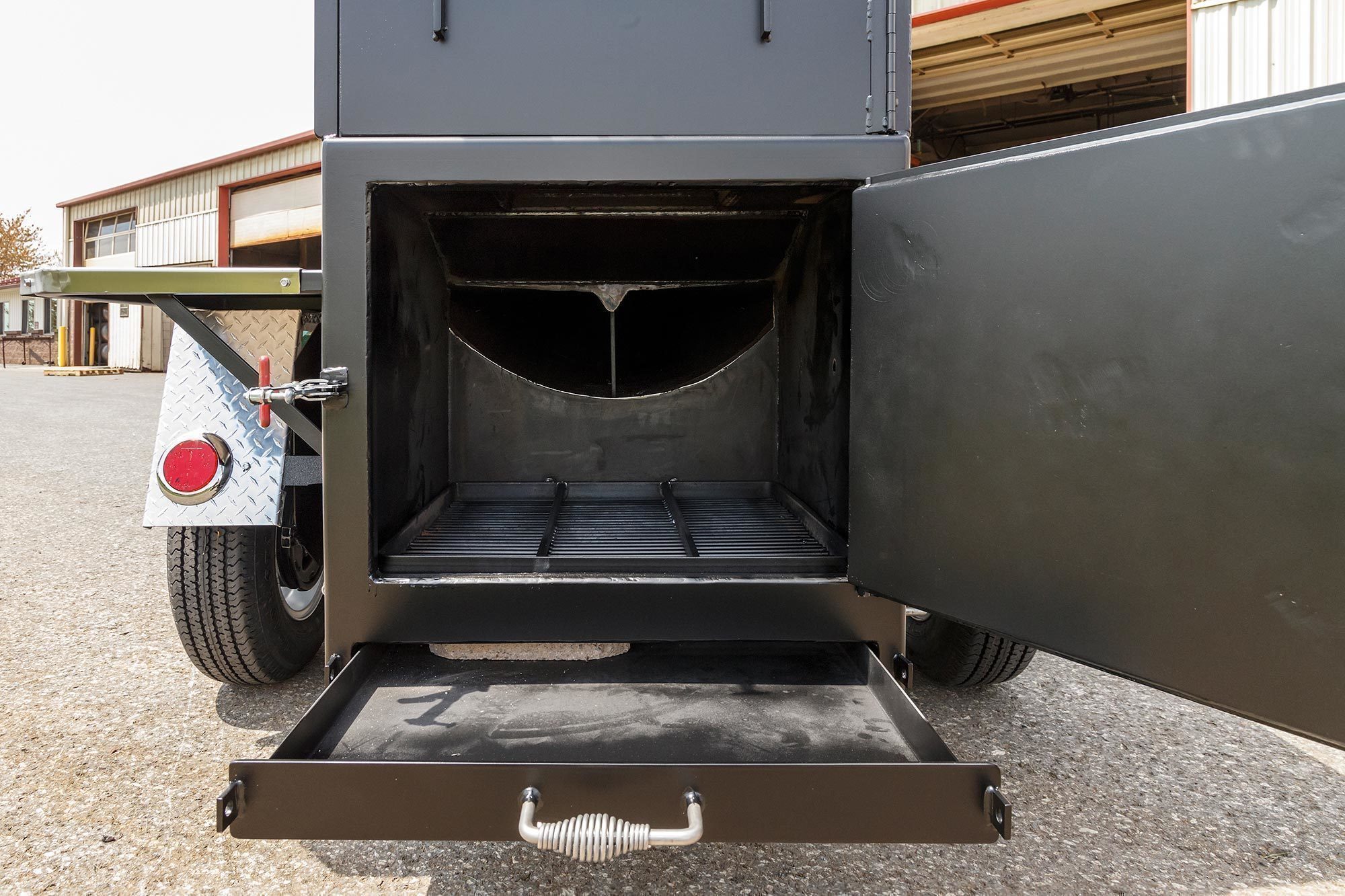

Firebox Grate

Heavy duty firebox grate gives your fire even air circulation and lets the ash fall to the slide-out ash pan below (shown on a SQ36 Barbeque Smoker.

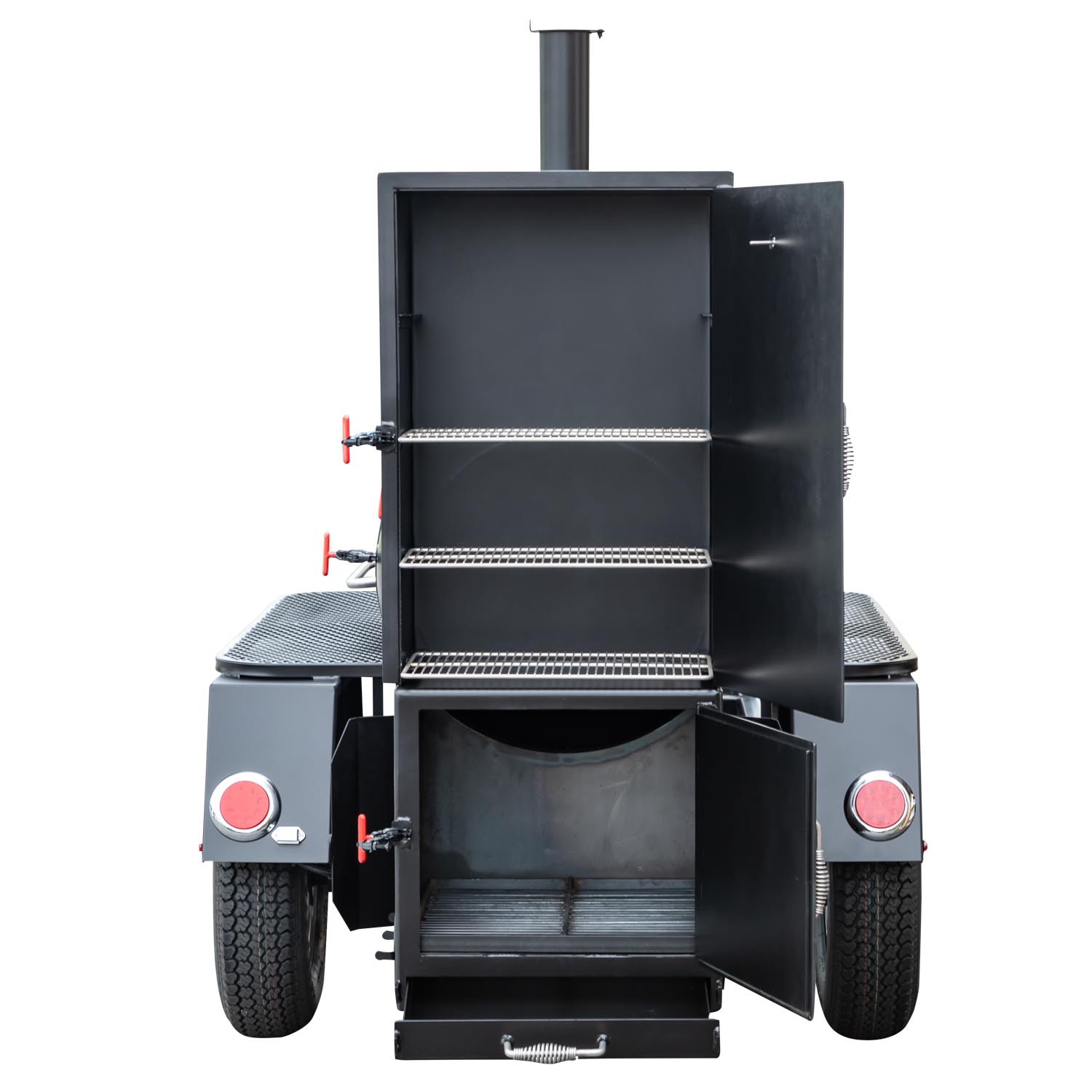

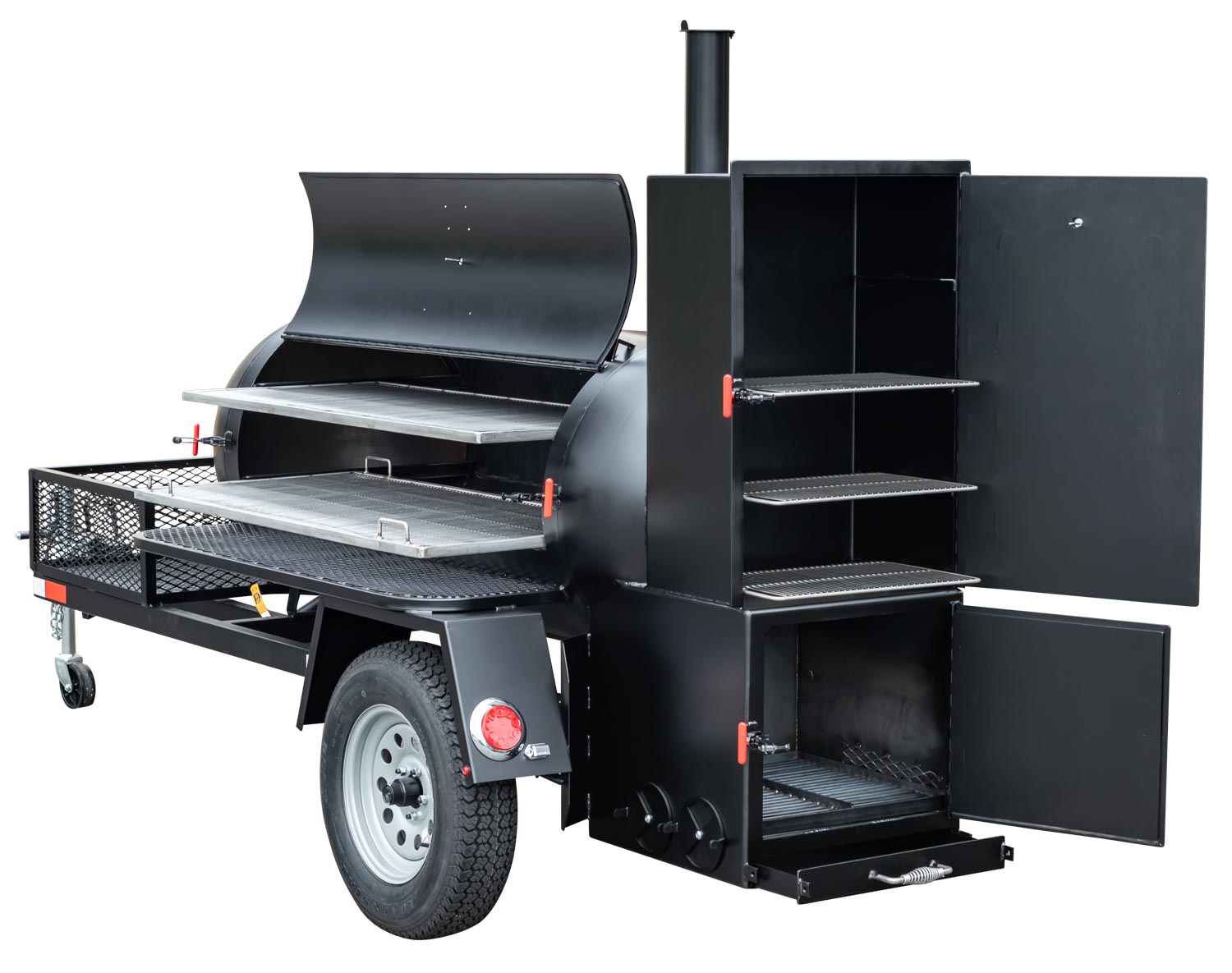

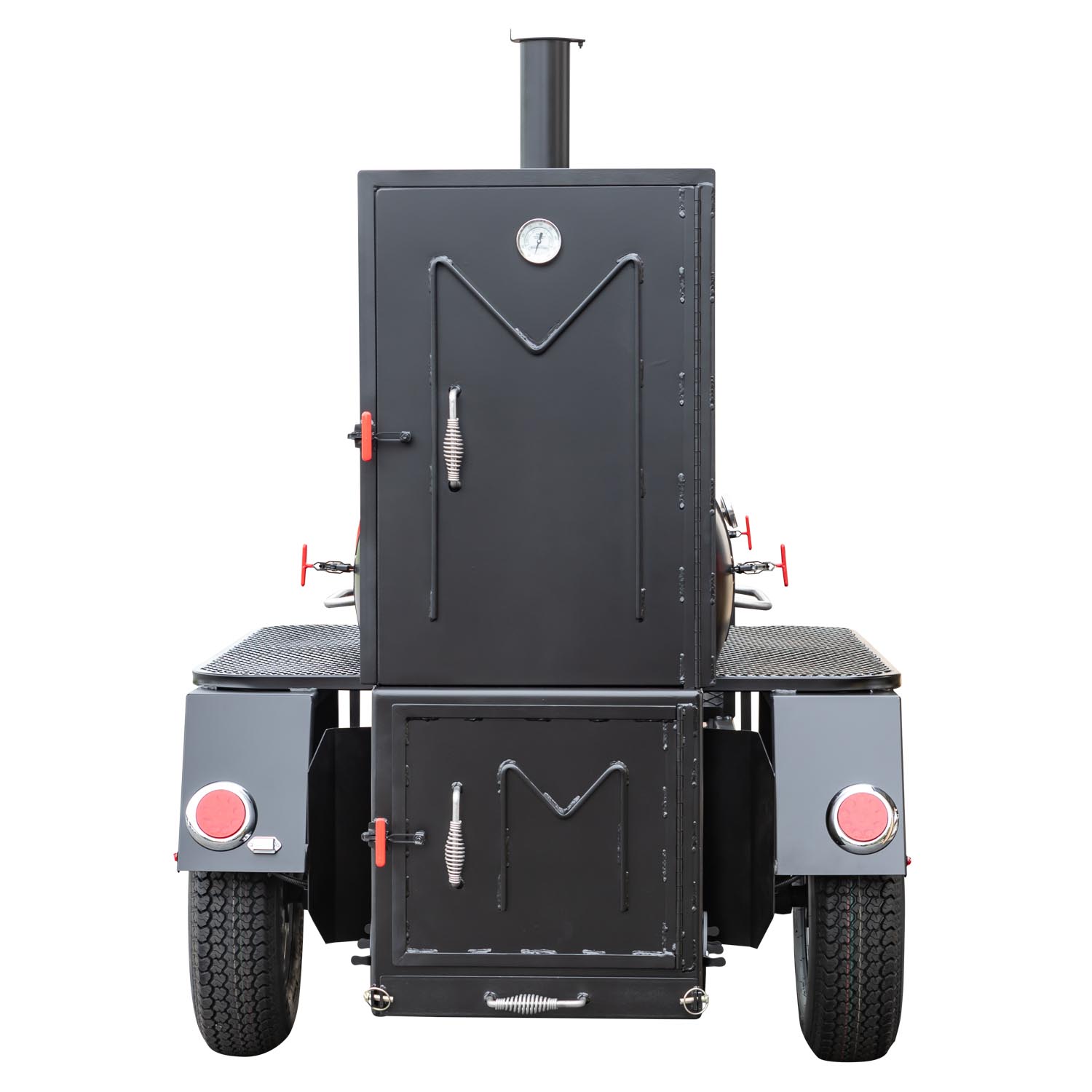

Warming Box

The warming box above the firebox is a great place to keep your food warm or even bake if the temp is right.

Calibratable Thermometer

Equipped with a stainless steel calibratable thermometer for easy and accurate temperature readings.

Best-Selling Options for the TS250 Tank Smoker Trailer

Click the "Customize" button above to select options

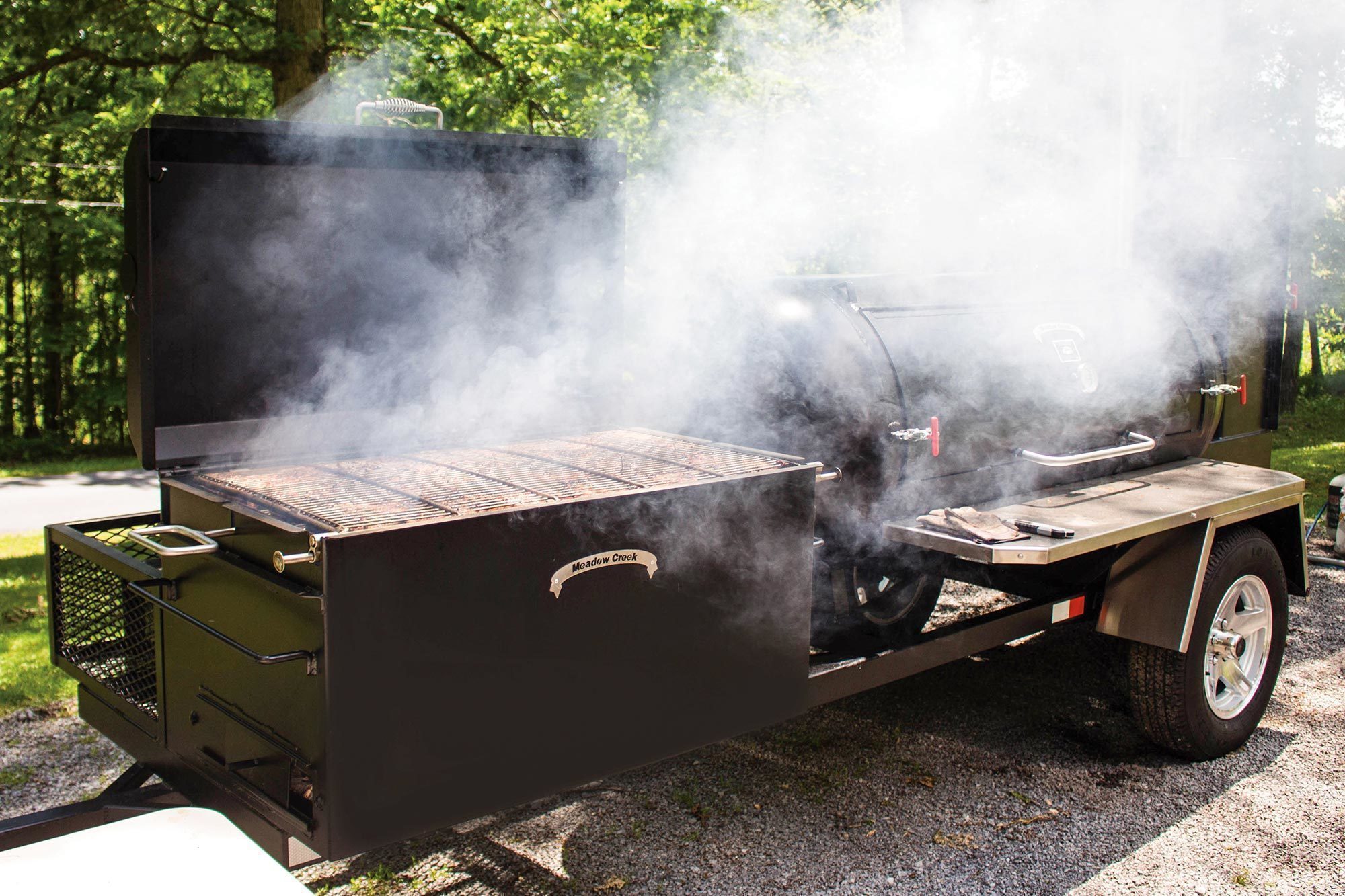

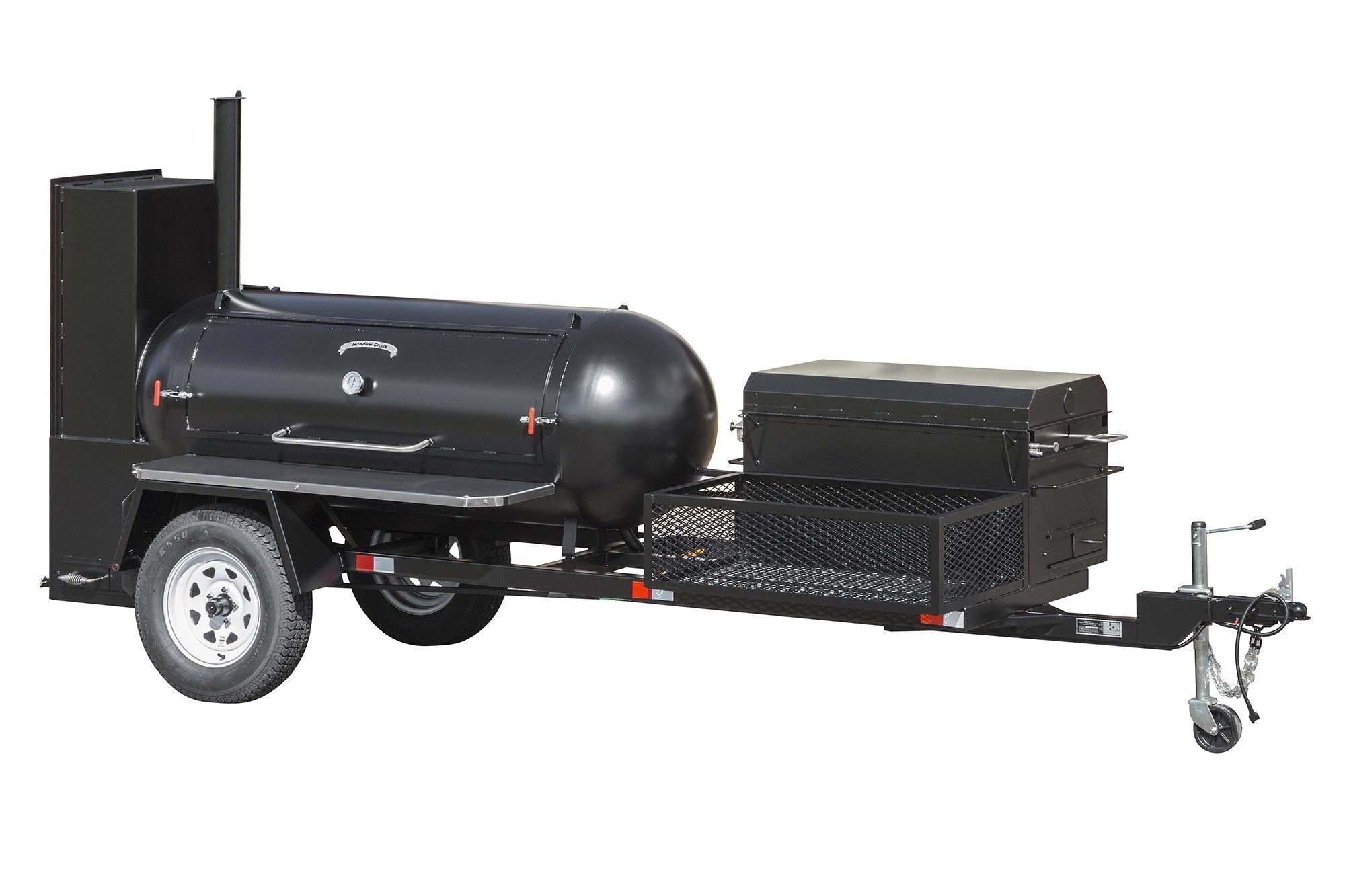

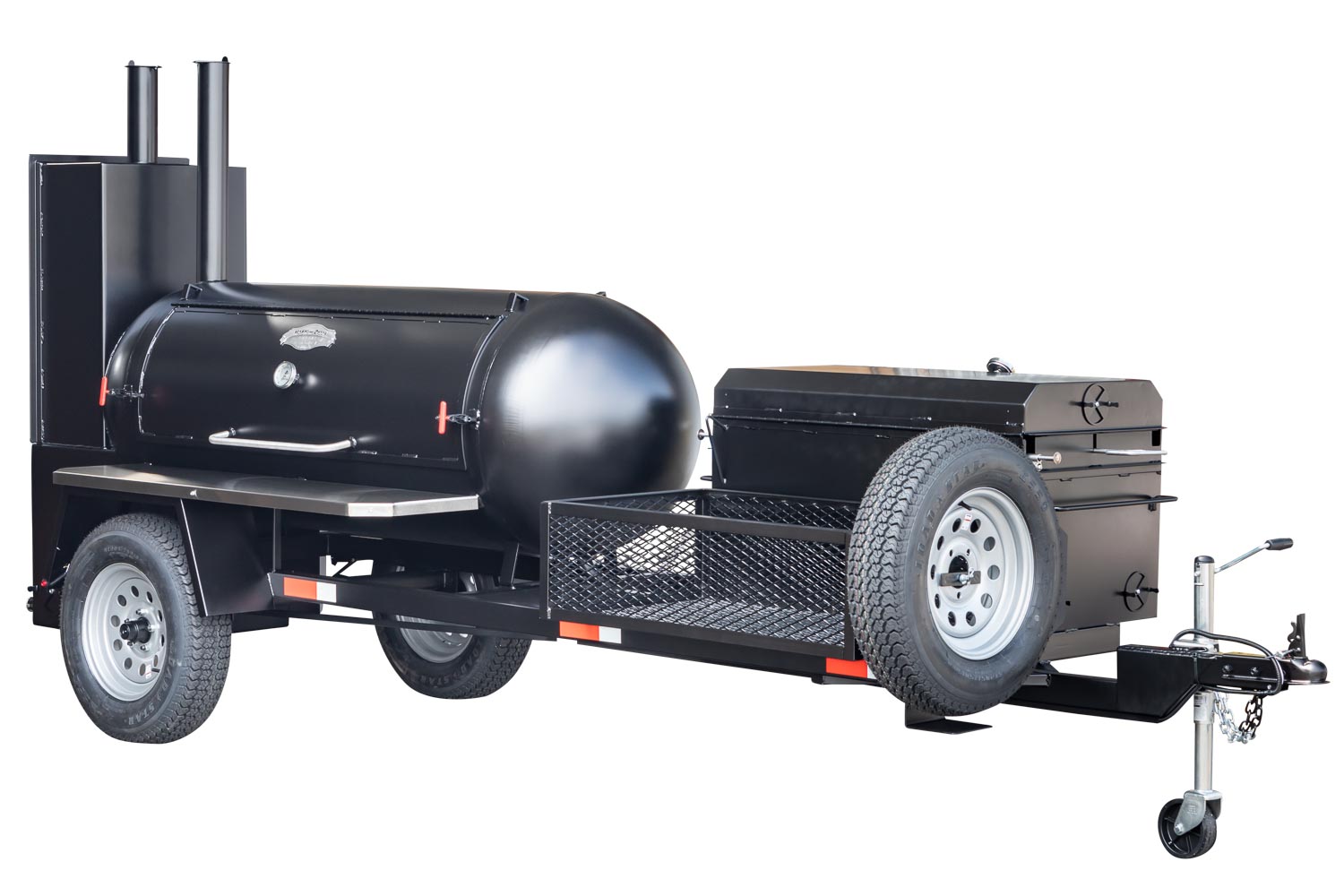

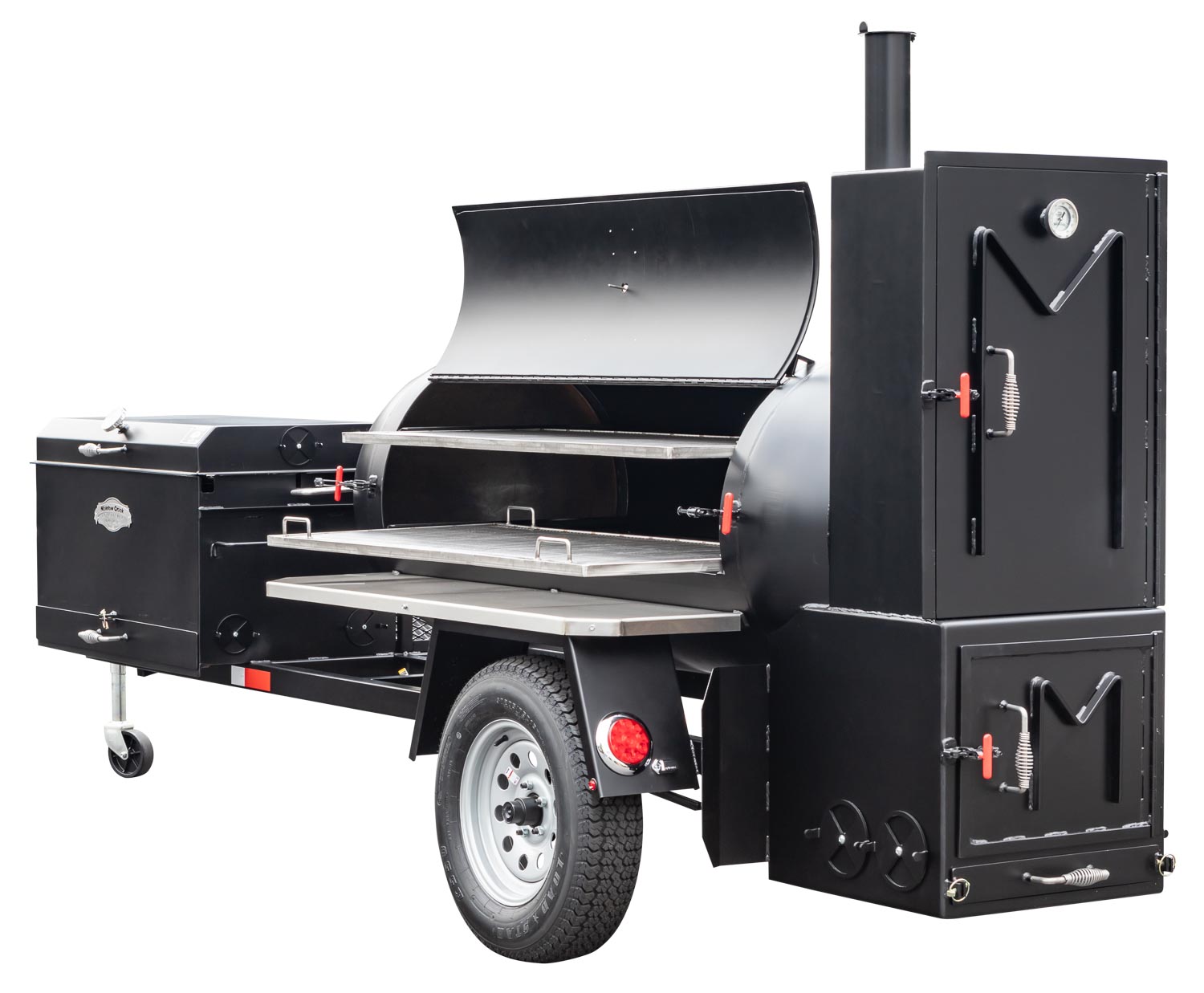

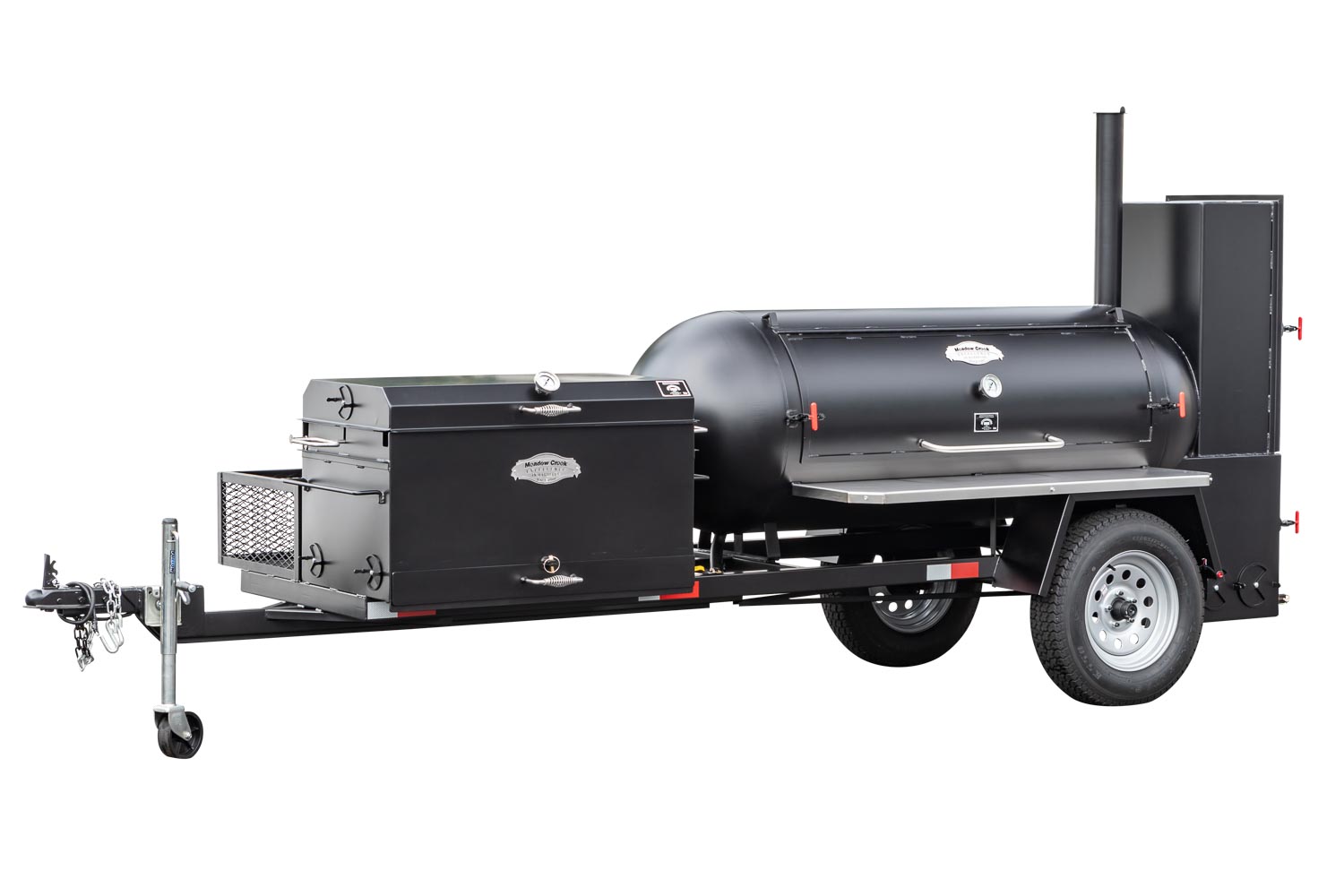

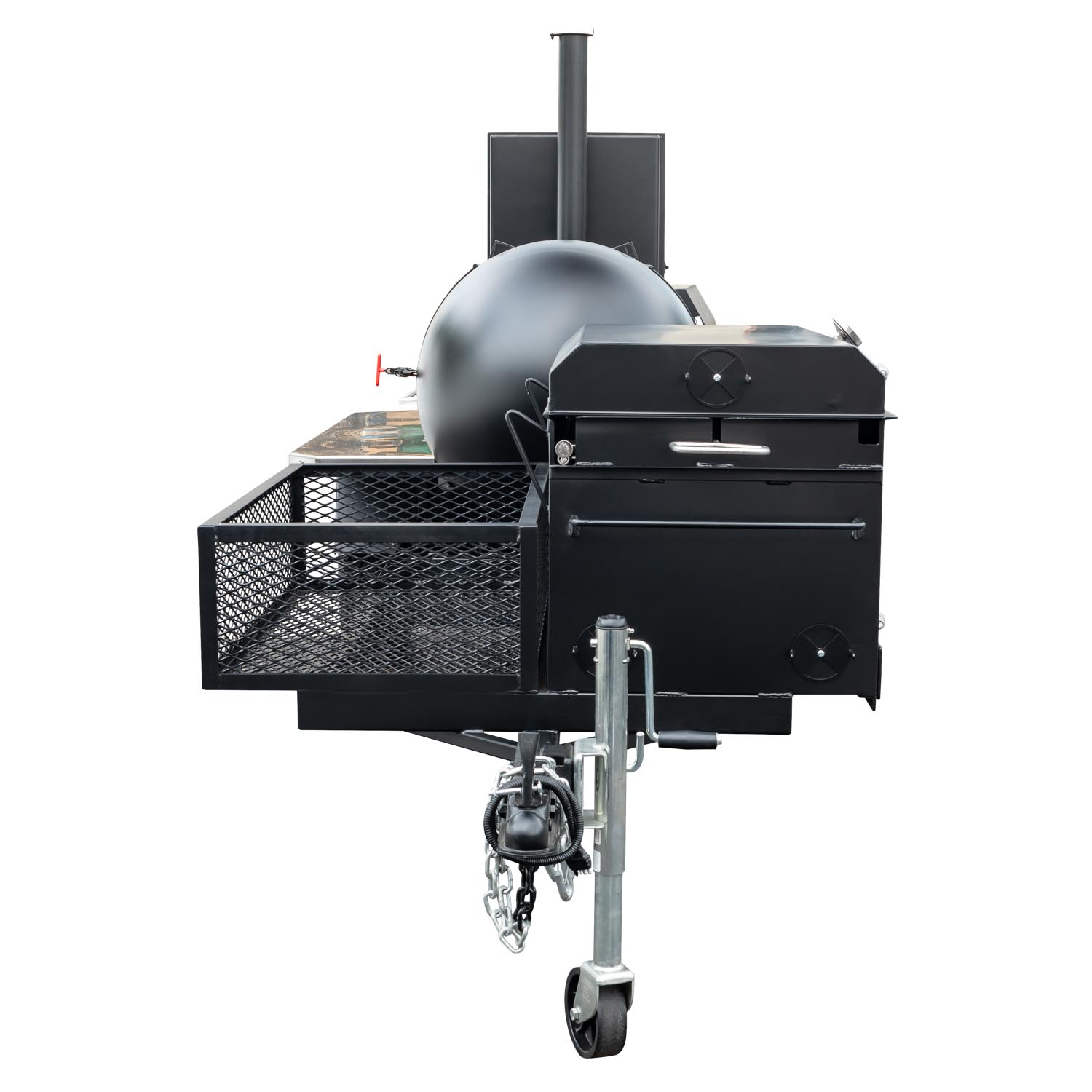

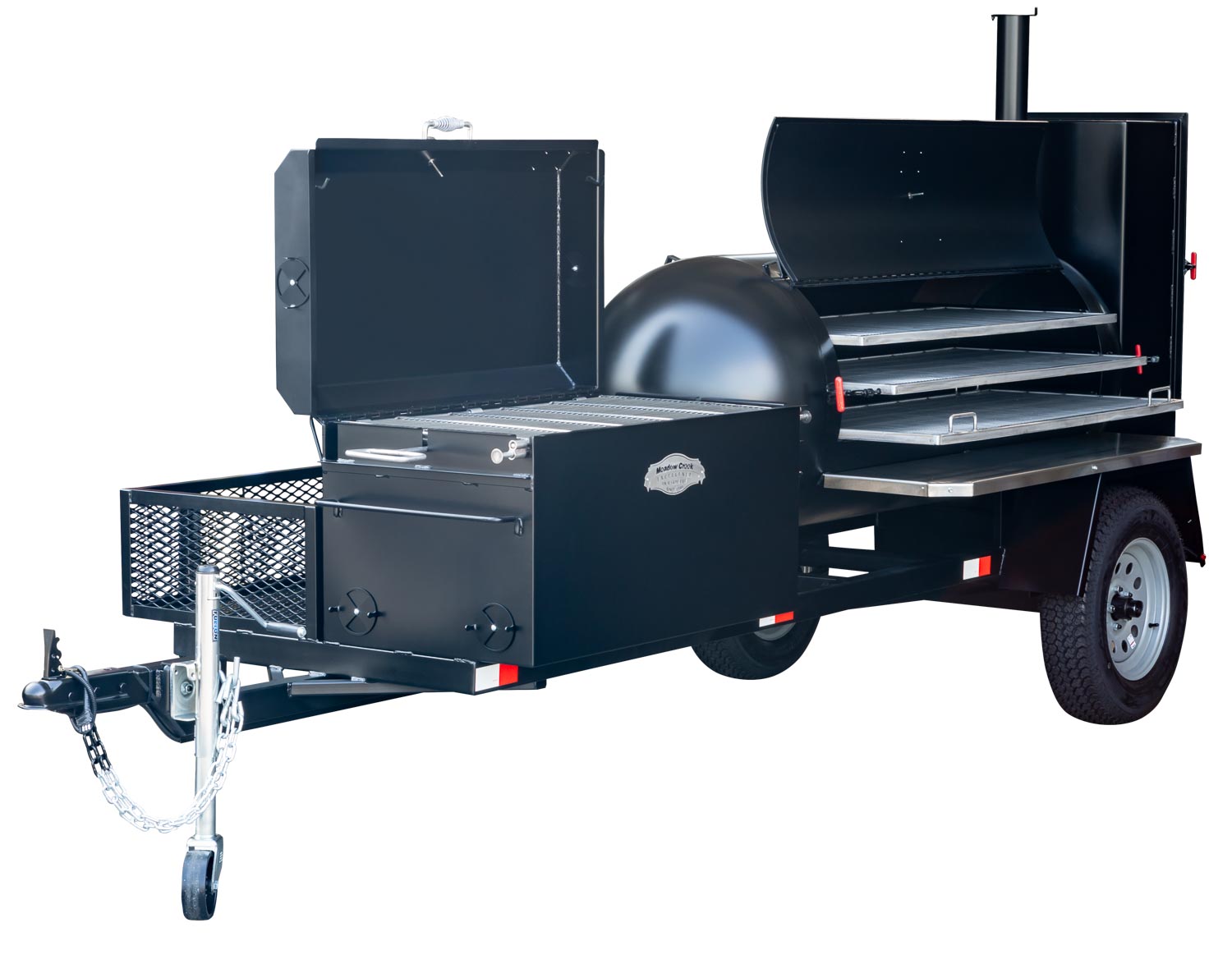

BBQ42 Chicken Cooker

Maximize the versatility of your tank smoker trailer by adding a BBQ42 Chicken Cooker in front of the tank and grill things like chicken or sausage while you cook low and slow.

TS250_Tank_Smoker_26_Pork_Belly_Burnt_Ends

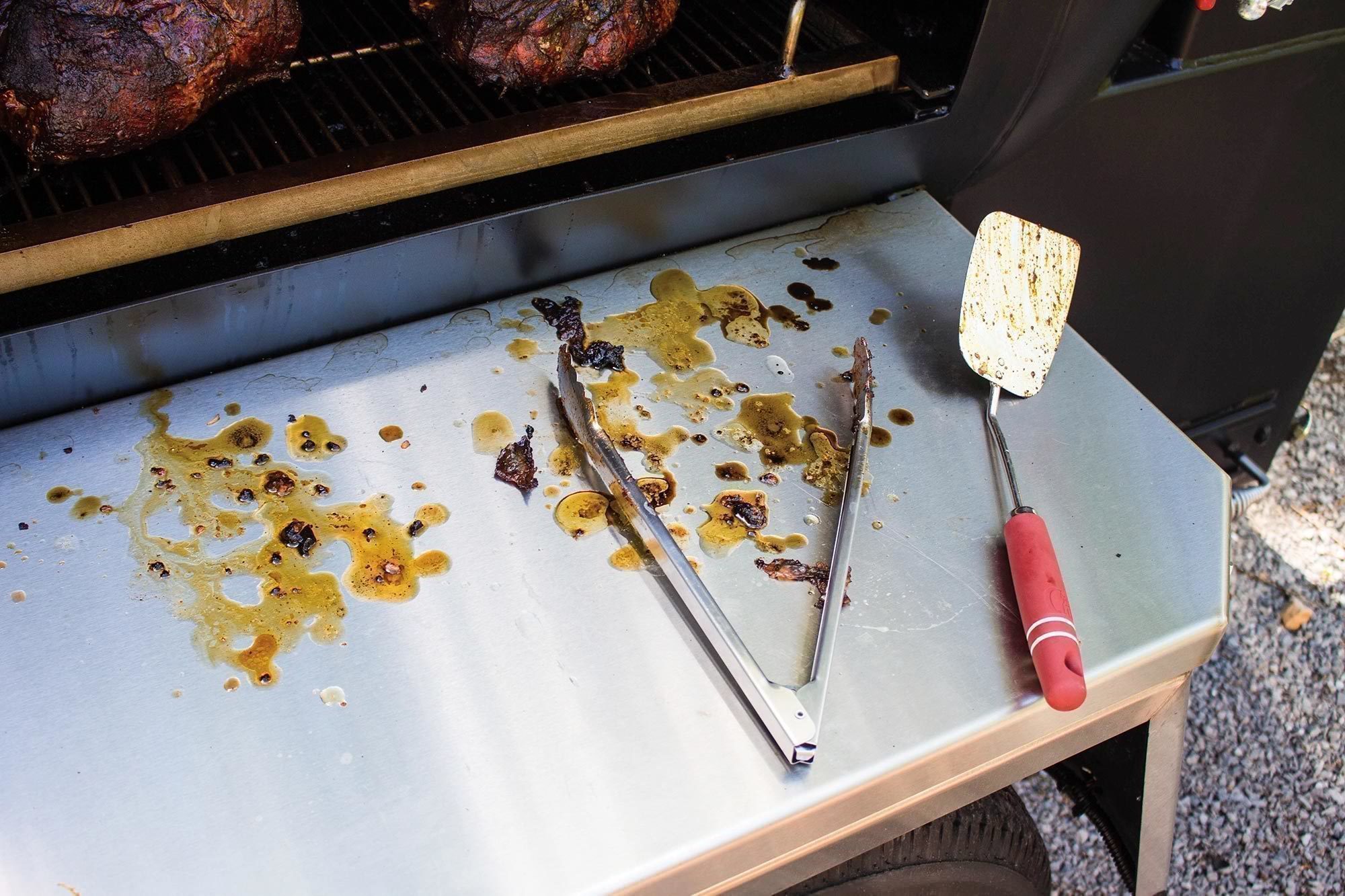

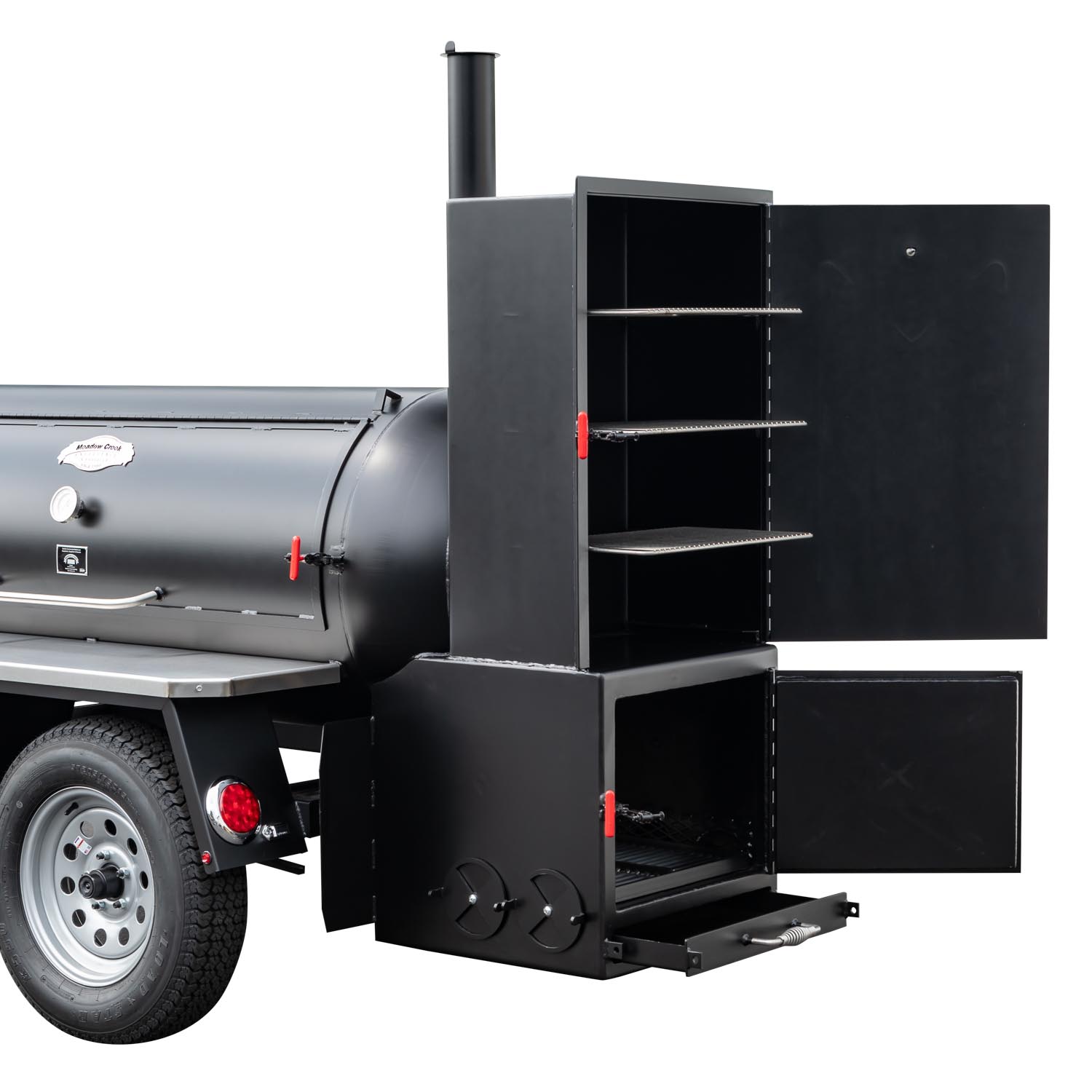

Stainless Steel Shelves

Upgrade your smoker with these rust-free, stainless steel exterior shelves that keep juices from dripping down into hard to reach areas and are easy to clean.

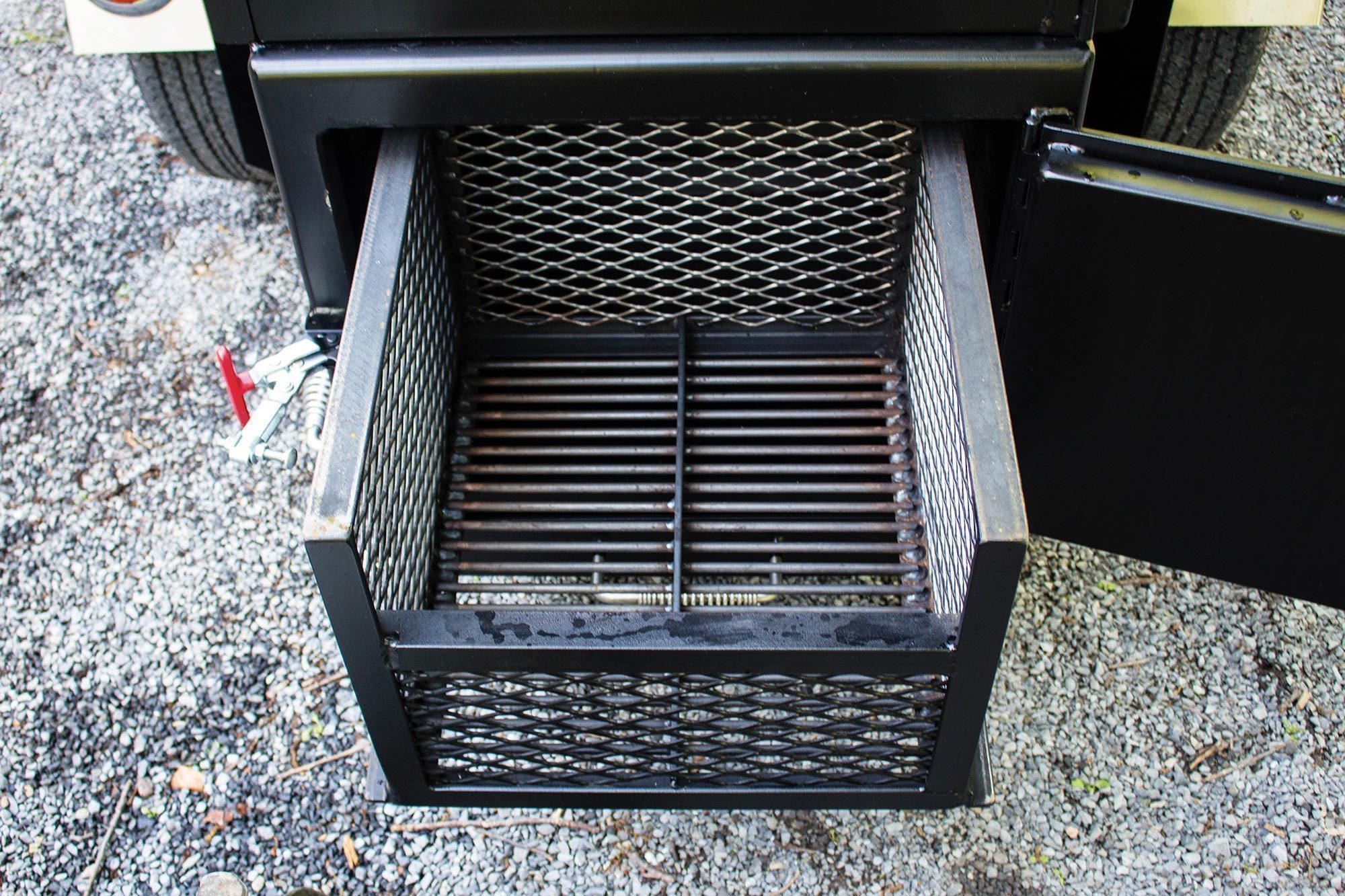

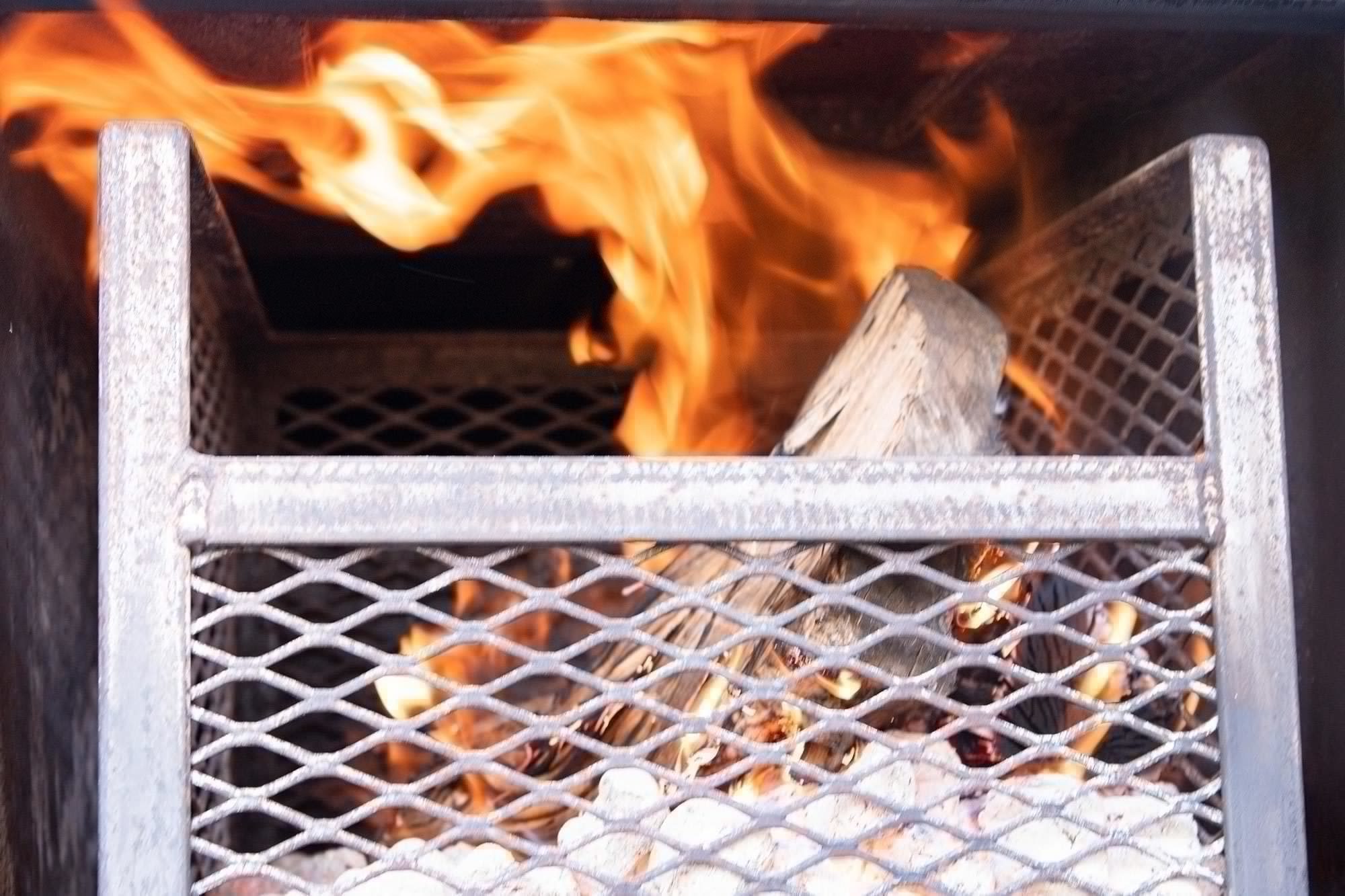

Charcoal Slide-Out Basket

Increase the fuel capacity of your firebox and keep hot coals which can damage the exterior paint away from the walls of your firebox.

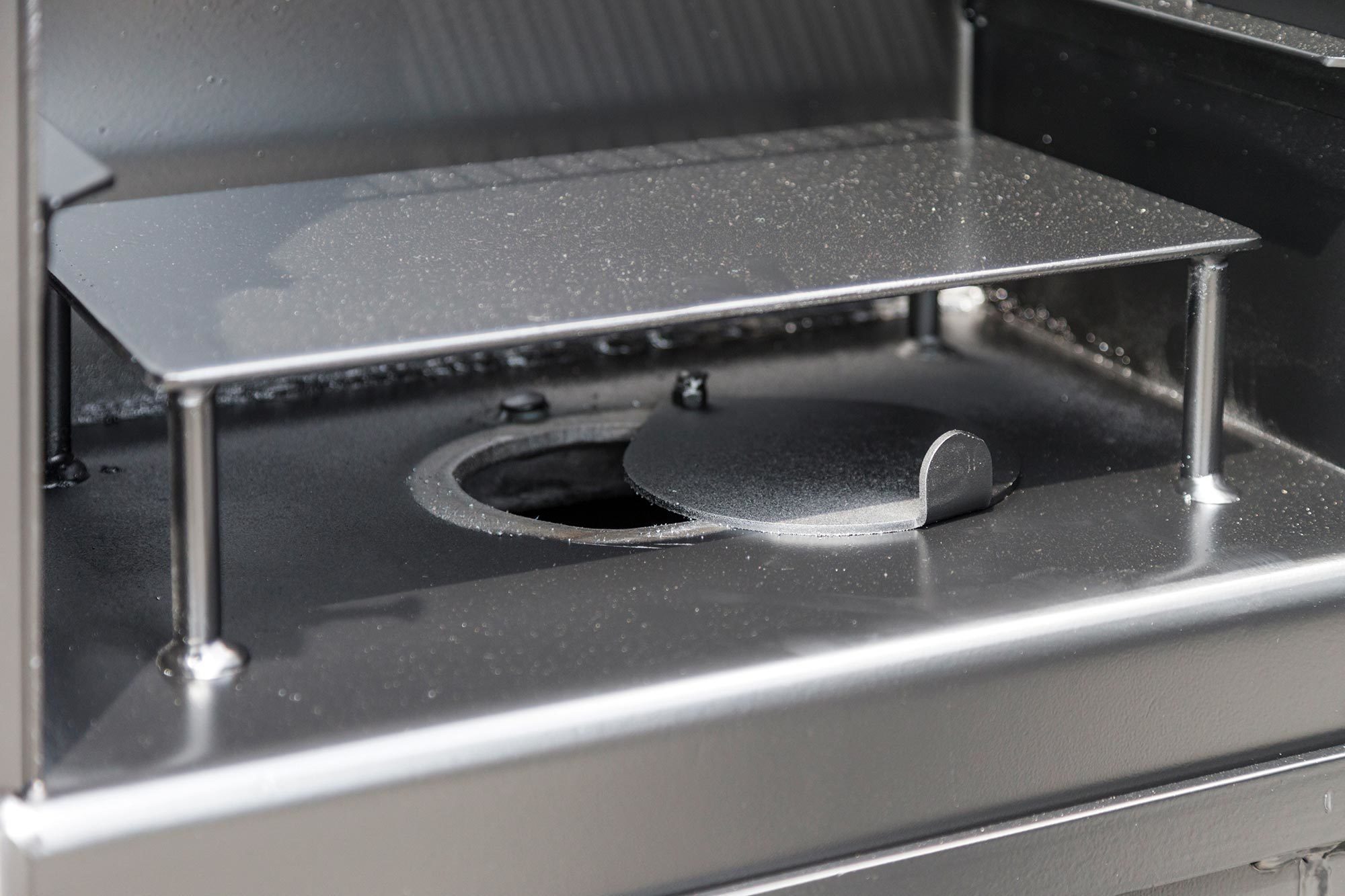

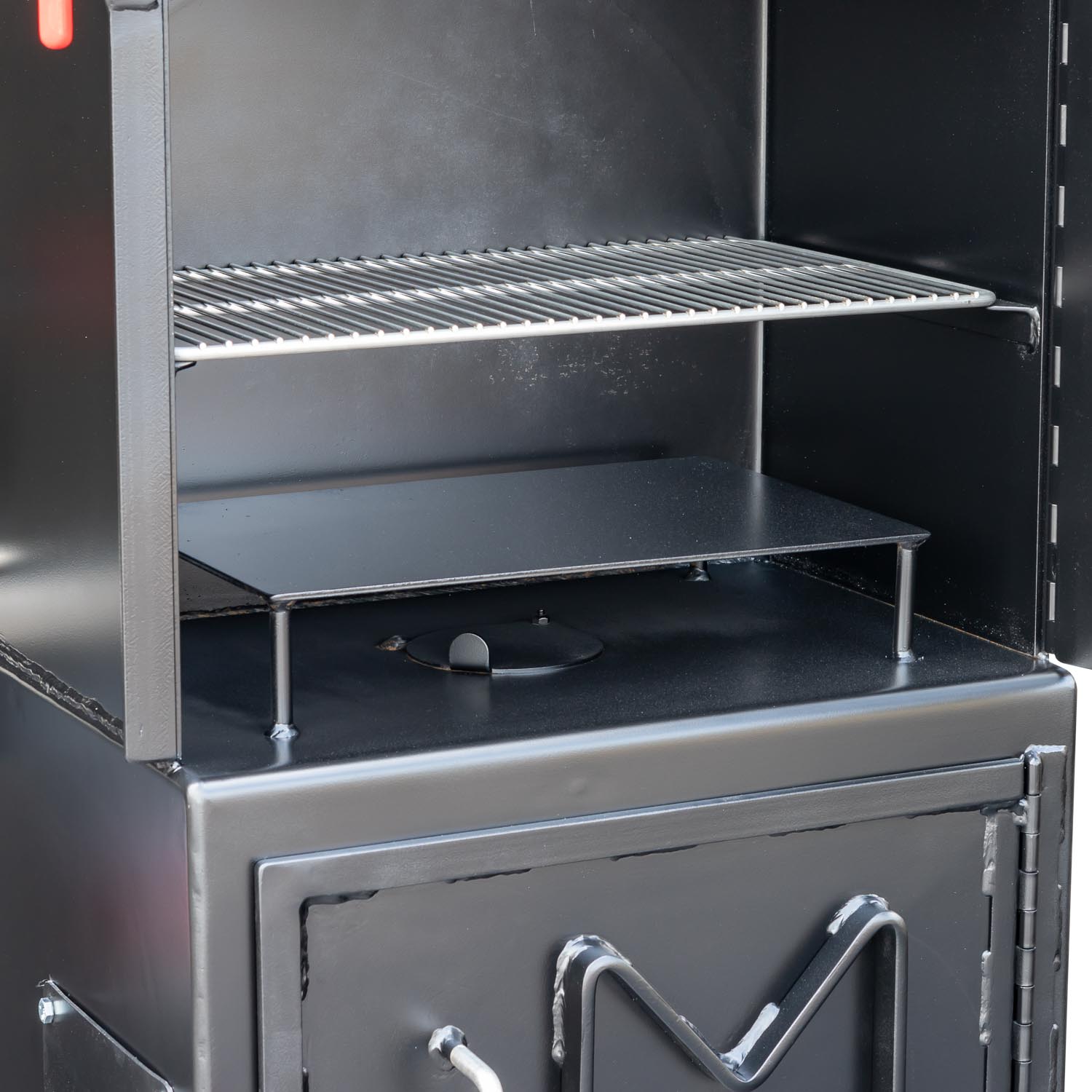

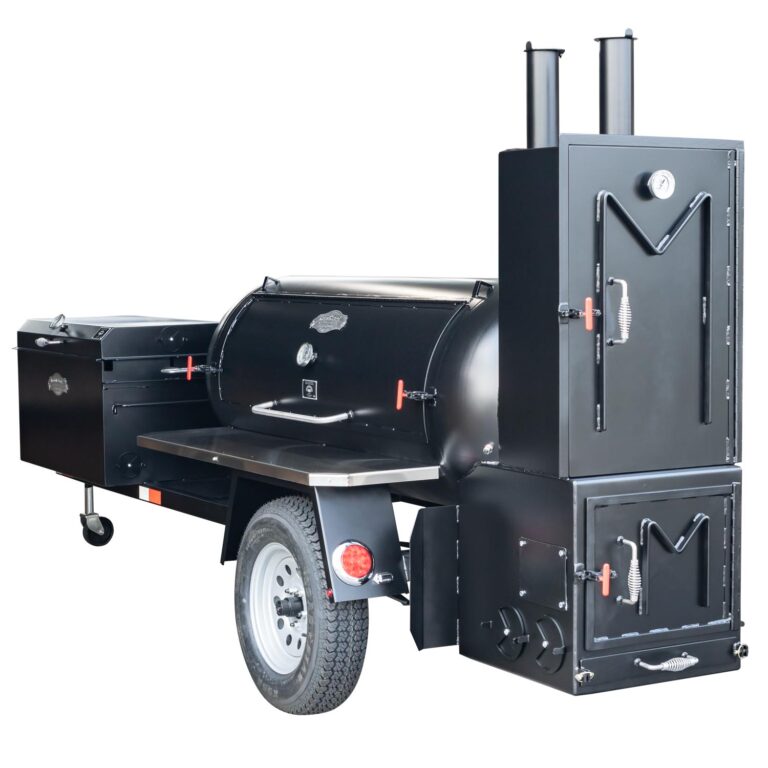

Live Smoke in Warmer

This option converts your warming box into a basic box smoker with an adjustable vent from the firebox to the warming box and a stack on top of the warming box, so you can cook meat with smoke in the warming box.

meadow_creek_ts250_reverse_flow_smoker_1

Trim Package

Add a touch of class with aluminum wheels and fenders and a stainless steel smoke stack.

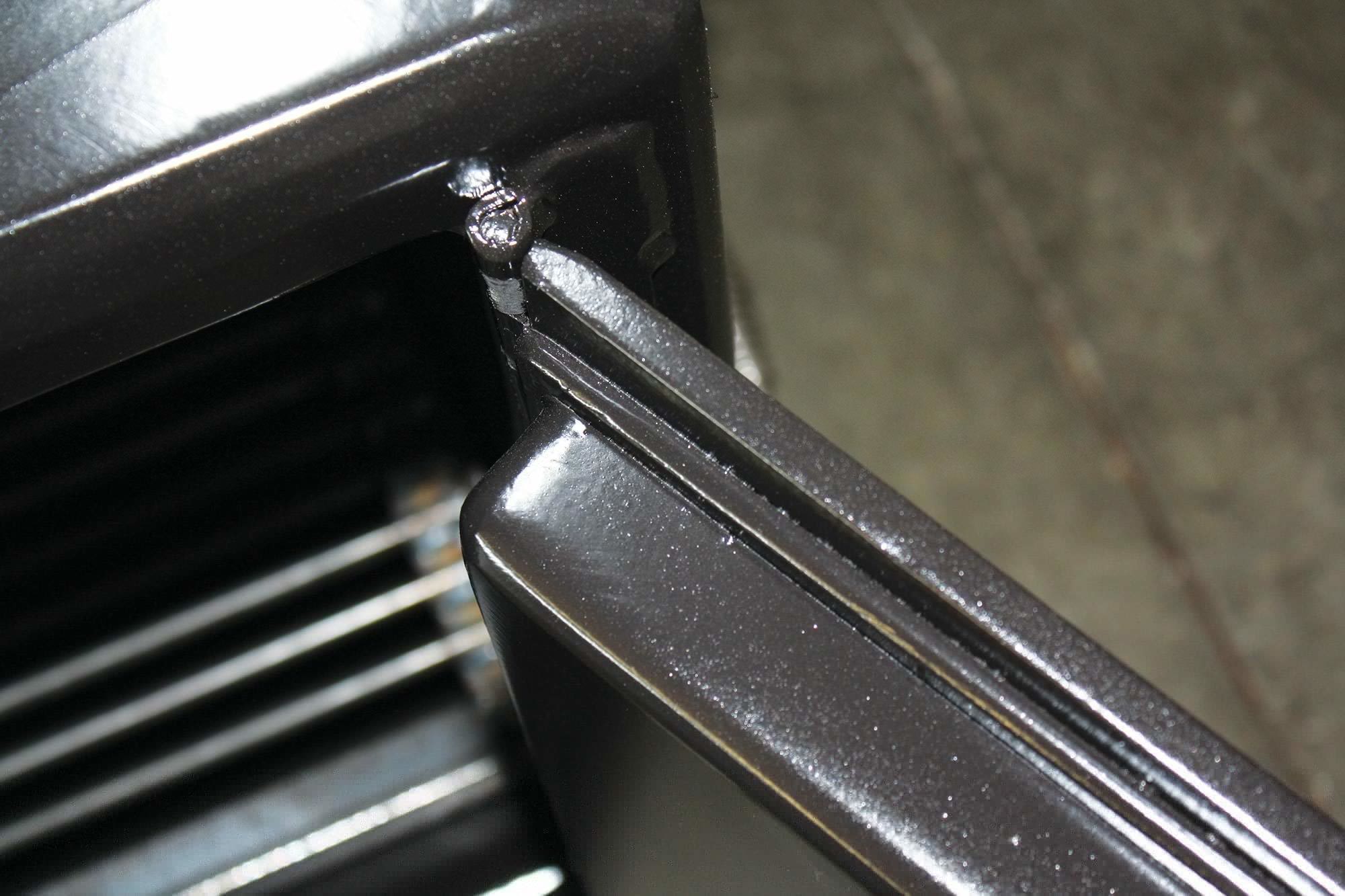

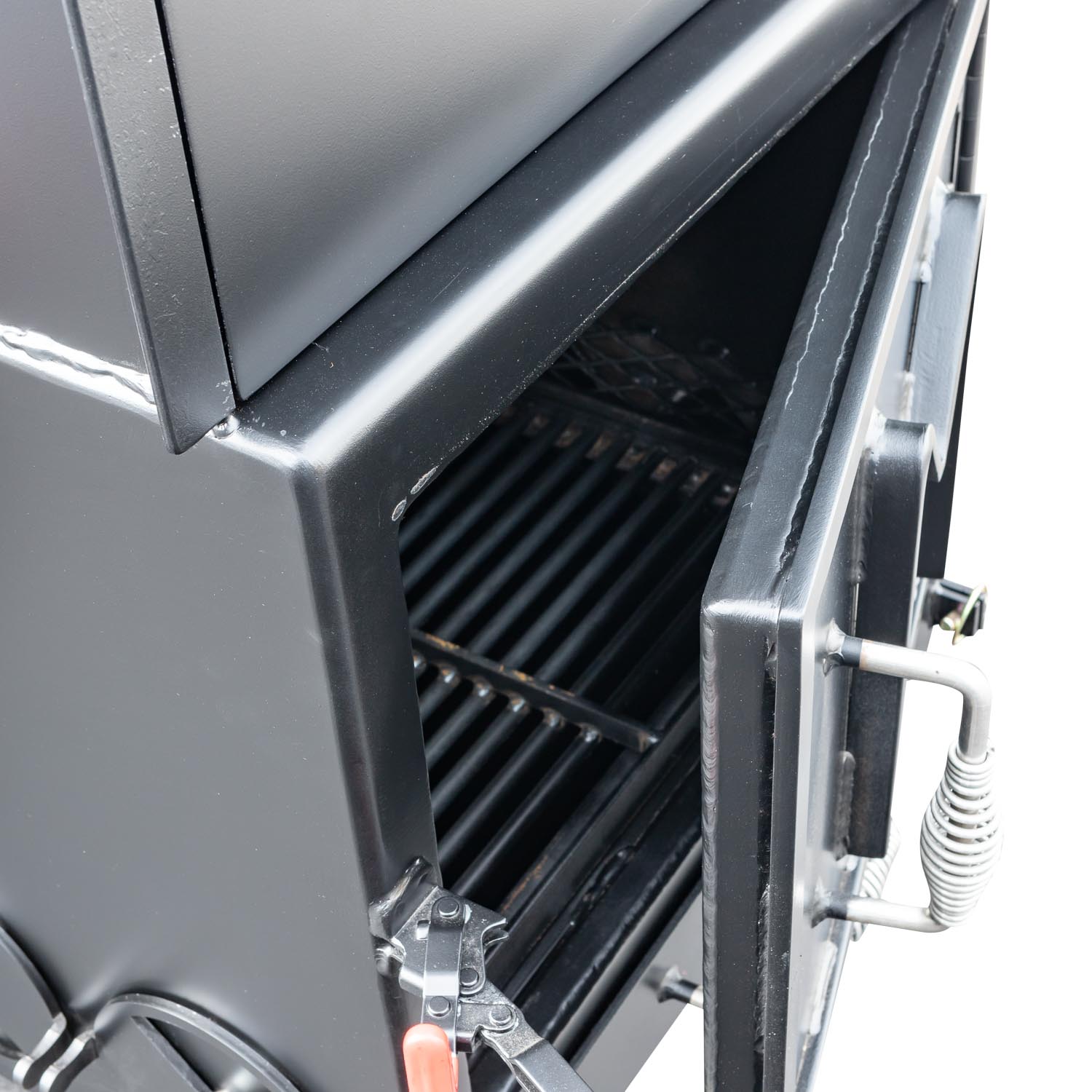

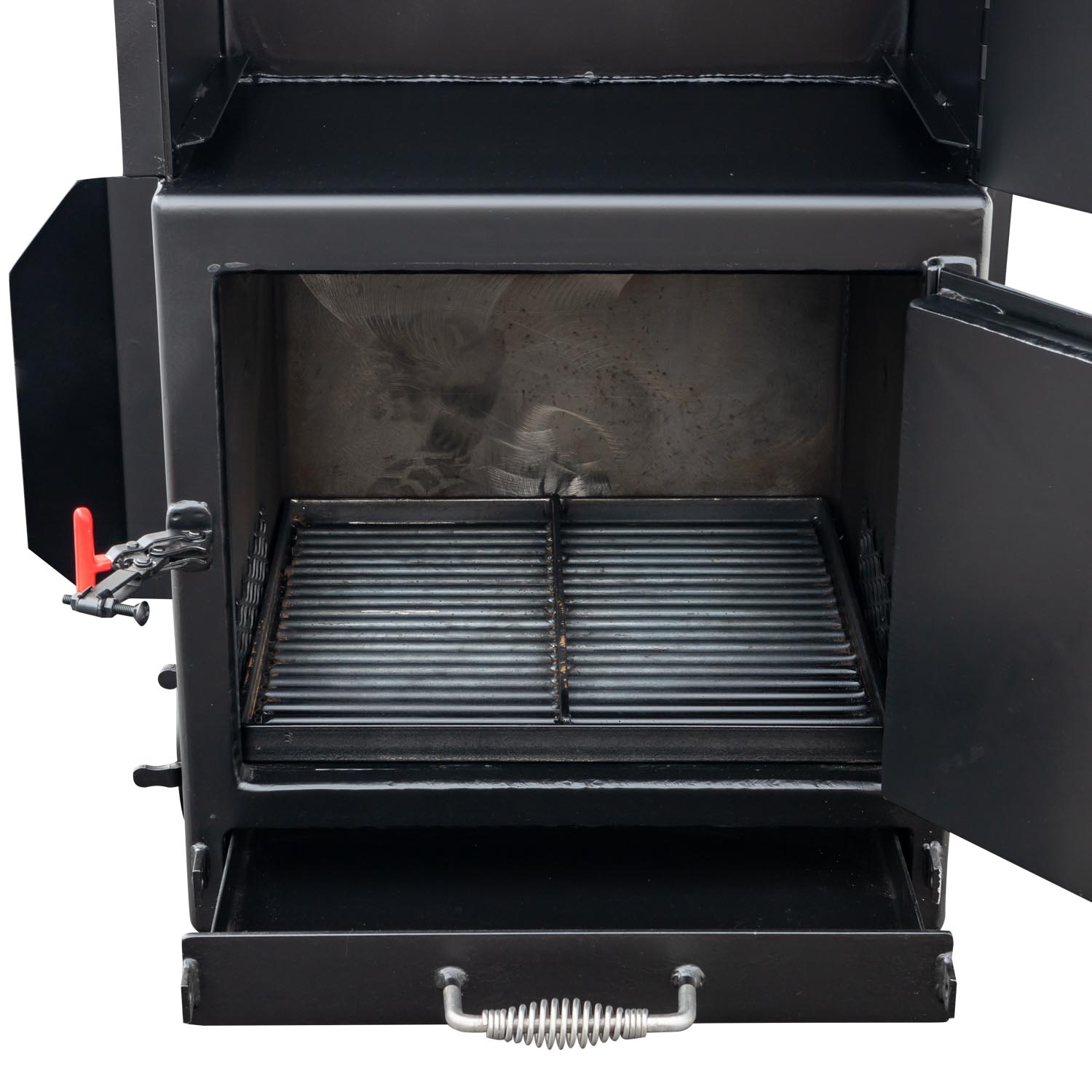

Insulated Firebox

If you’ll be using your smoker a lot, you can pay off the insulation in a short time by charcoal savings alone. The amount of charcoal you save varies, but normally it will take 40–50% less charcoal.

Tomahawk Steaks, Beef Short Ribs, and Pork Belly Burnt Ends on a Meadow Creek Tank Smoker

A Delicious Spread of Appetizers and Meats on a Meadow Creek Reverse Flow Smoker

An Epic Feast of Prime Rib, Ham Loaf, Jalapeno Poppers, and Other Goodies on “Big Black”

Feeding Hundreds With a Meadow Creek Offset Smoker

Additional information

Overall Dimensions	83”h x 175.5”l x 58”w
Cooking Area	19.81 sq. ft. (2,853 sq. in.)
Top Grate Dimensions	24” x 56.5”
Space Above Top Grate	5.5”
Bottom Grate Dimensions	26.5” x 56.5”
Space Between Grates	8.5”
Grate Style	Wire Grid With 1/2” Spacing
Tank Dimensions	29.5” x 85” (250-gallon)
Metal Thickness on Tank	0.1875”
Fire Box Dimensions	24.5” Cube (Inside: 24” x 24” x 19”)
Metal Thickness on Fire Box	0.25”
Warming Box Dimensions	13.5” x 22.5” (Inside)
Warming Box Grate Dimensions	13.5” x 22.5”
Space Between Grates in Warmer	8.5”
Axle Rating	3,000 lbs.
Net Weight	1,630 lbs.
Shipping Weight	1,950 lbs. (if skidding is required)
Capacity of Pork Butts	31-32
Capacity of Baby Back Ribs	26-34
Capacity of Spare Ribs	18-22
Capacity of Whole Briskets	19-22
Capacity of Whole Chickens	45-47
Capacity of Whole Pigs	200 lbs.

Features of the TS250 Barbeque Smoker Trailer

Reverse flow draft

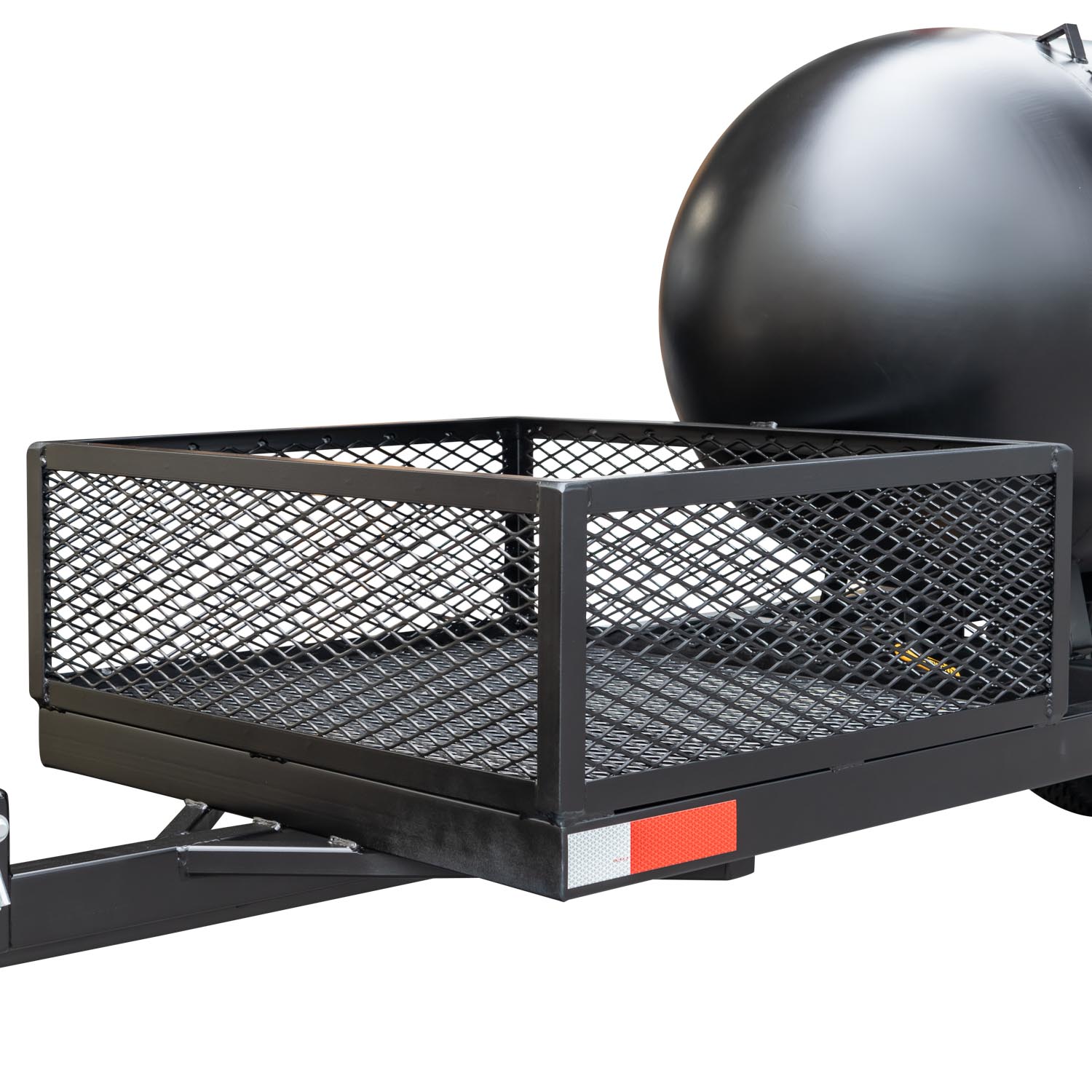

Wood box
Positive-lock latches on all doors
Grate in firebox with slide-out ash pan

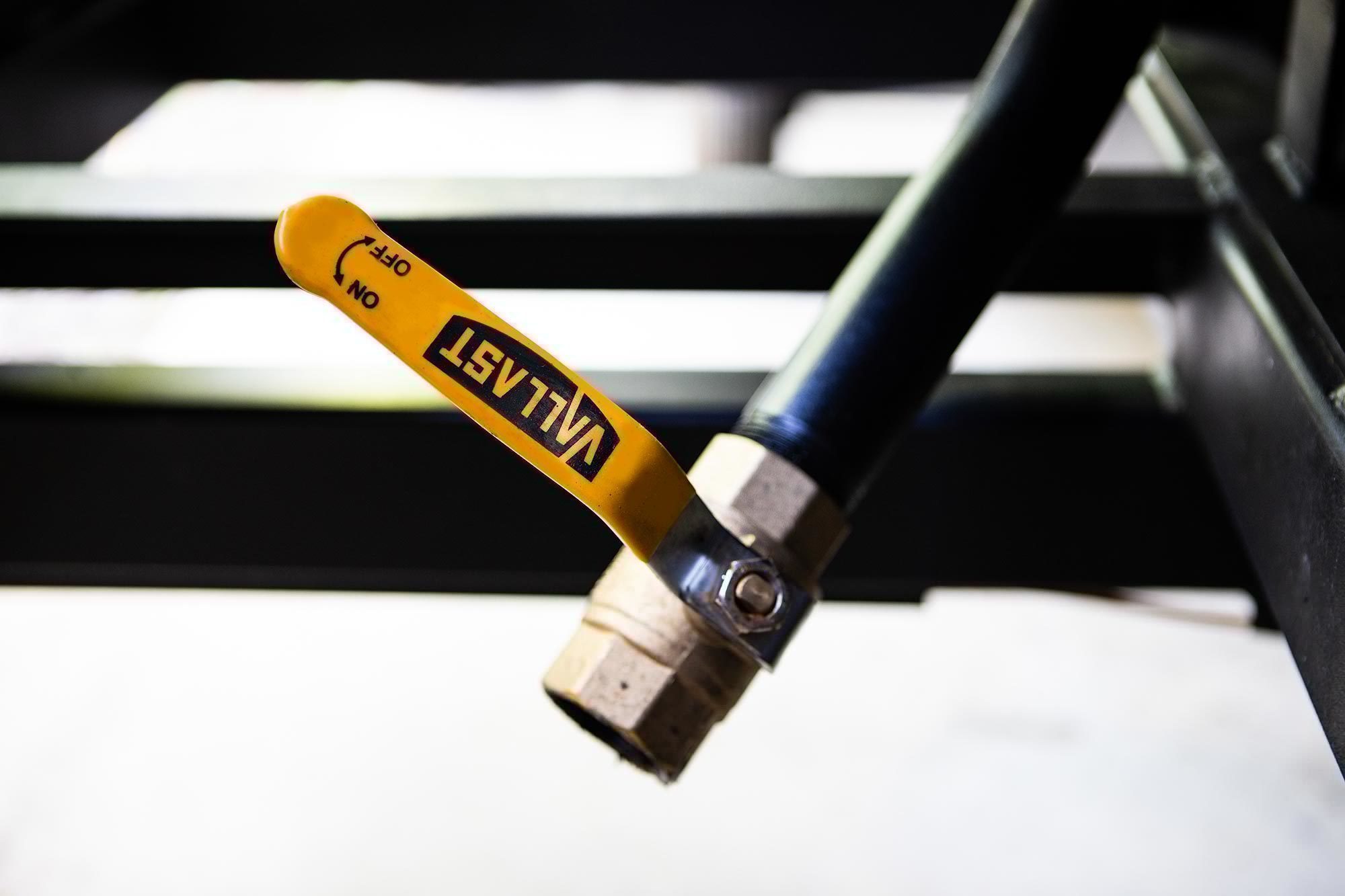

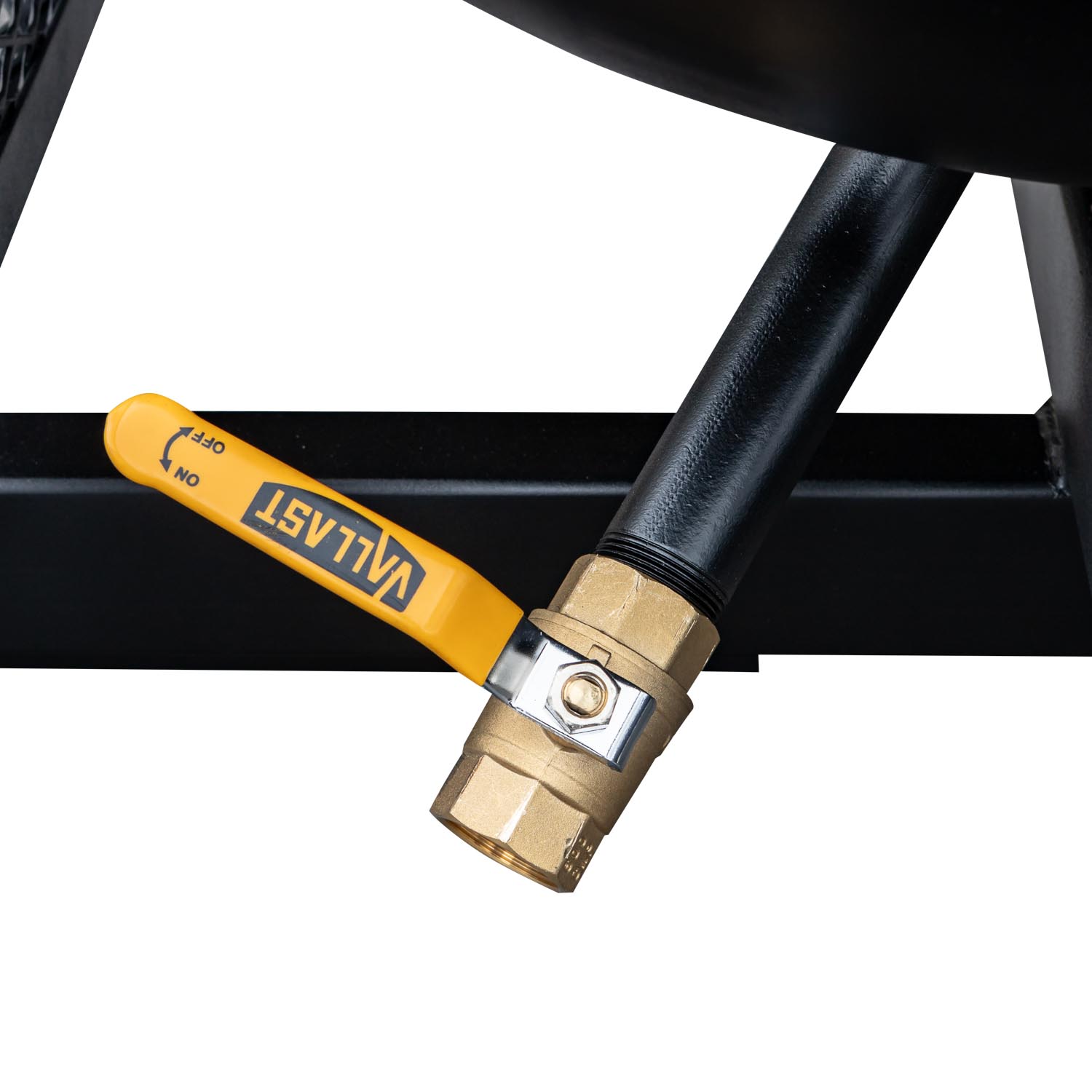

Drain with ball valve for draining the tank
Stainless steel handles

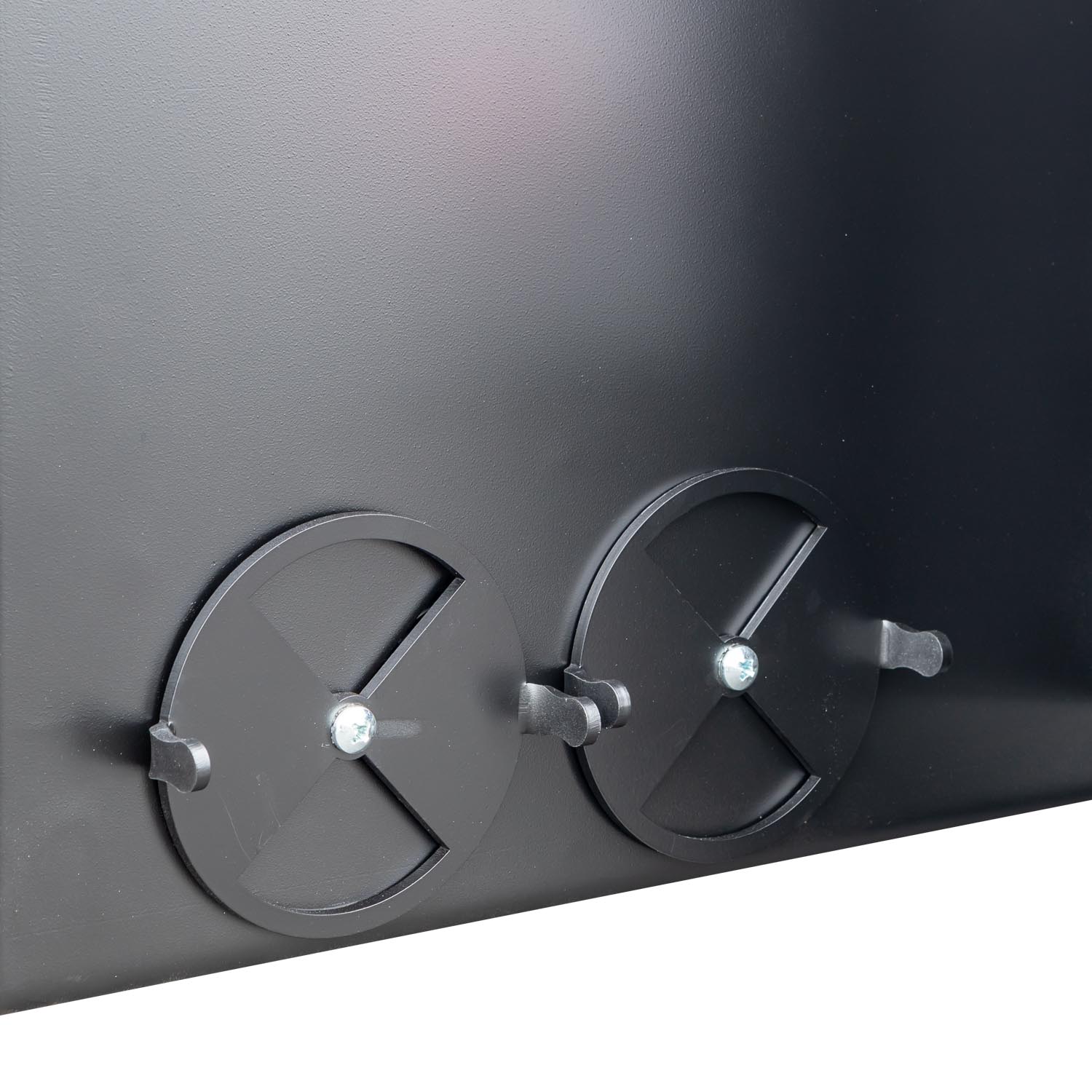

Stay cool handles on slide vents, firebox door, and warming box door
2 exterior work shelves
Warming box with 3 shelves
Stainless steel calibratable thermometer on smoker and warming box doors
Heat baffles on firebox protect the tires from excessive heat.
Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.

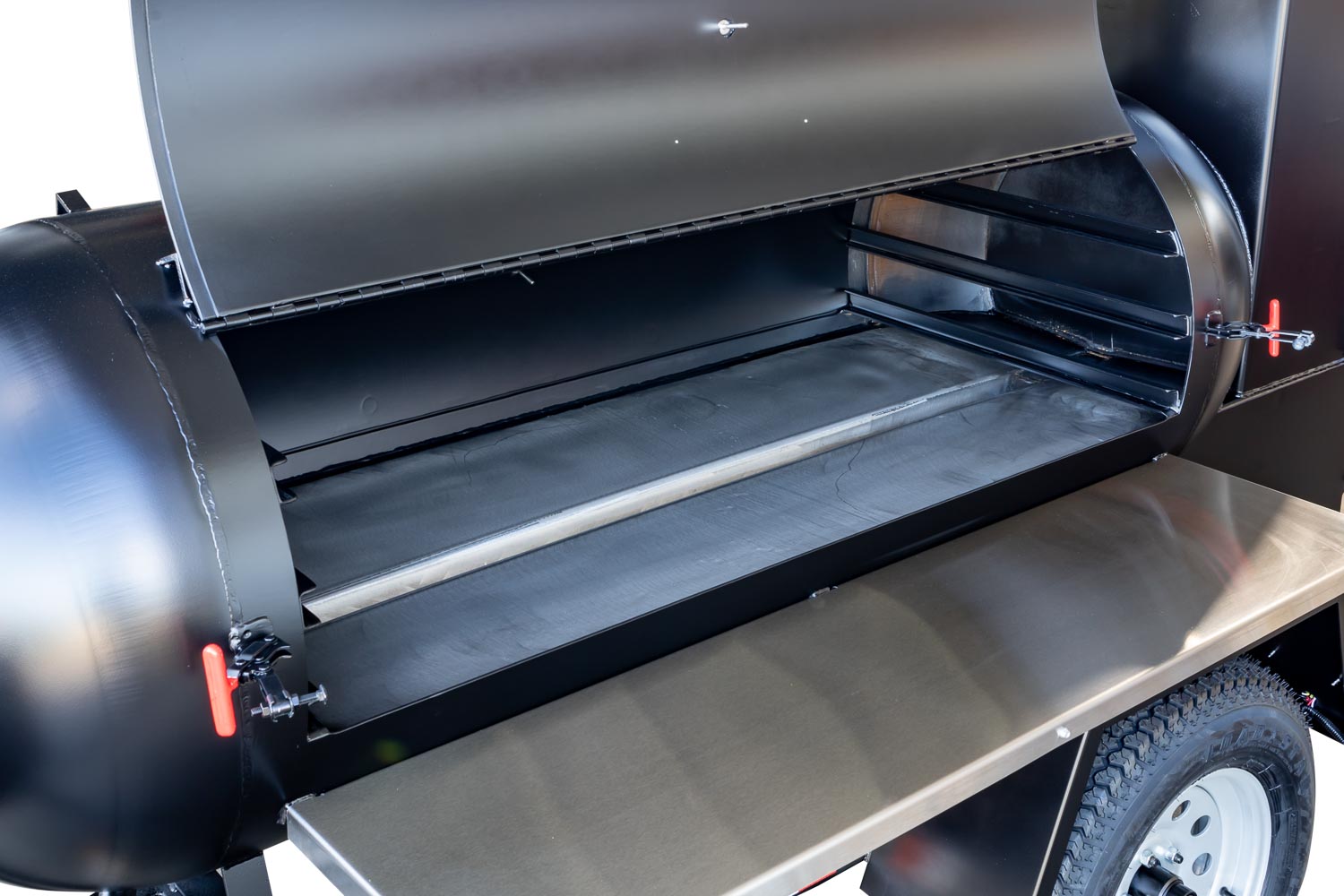

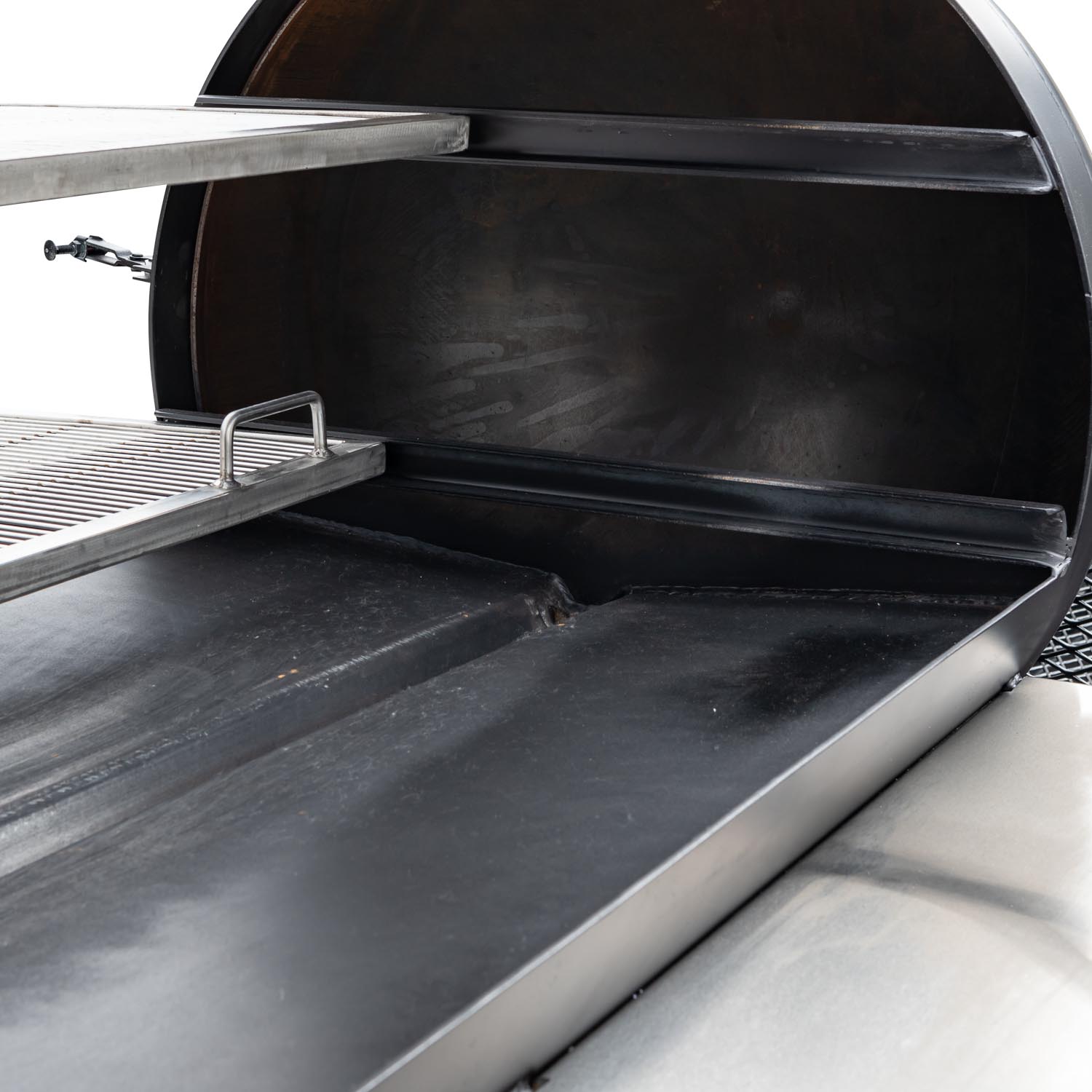

Built in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
2 exterior shelves
Door on each side of smoker

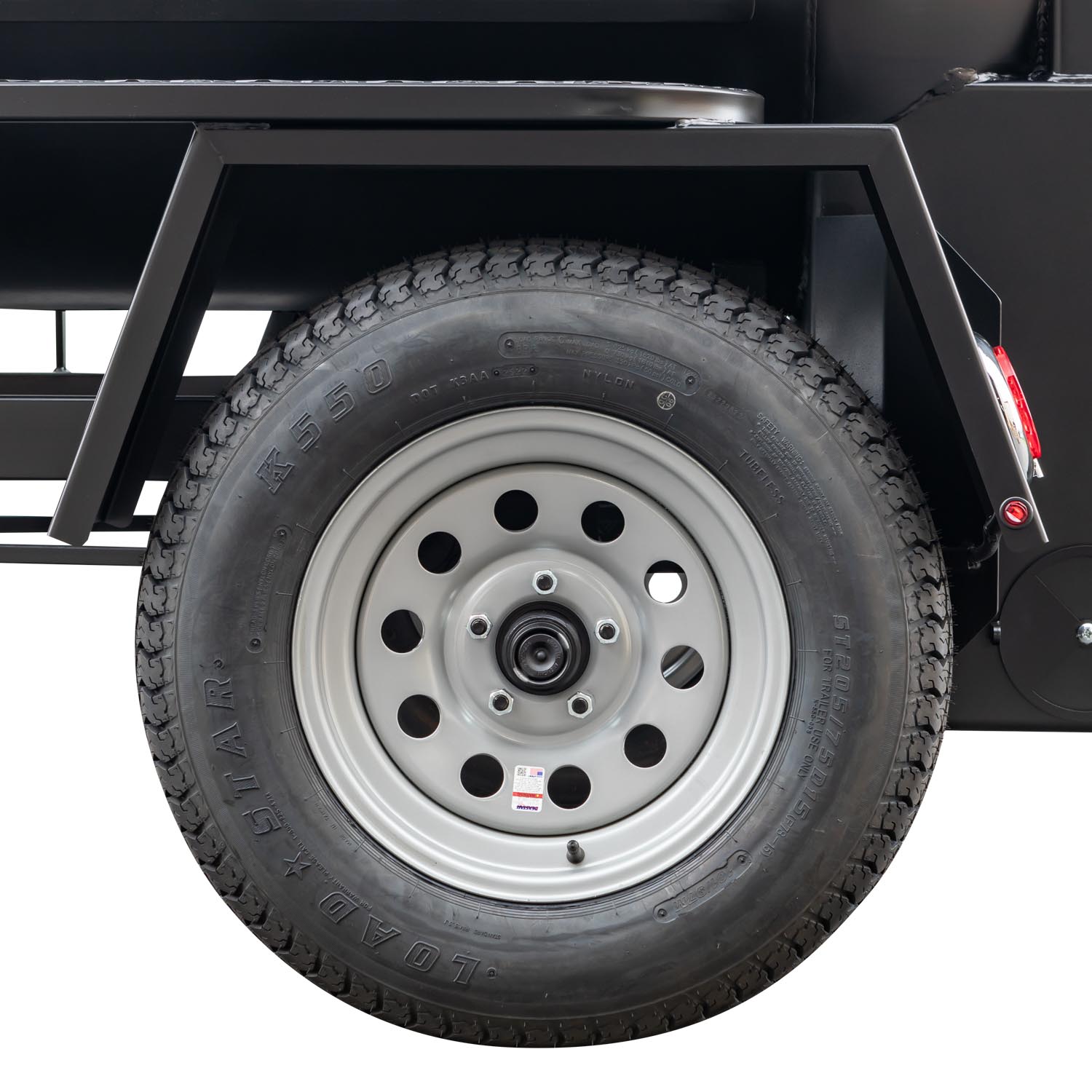

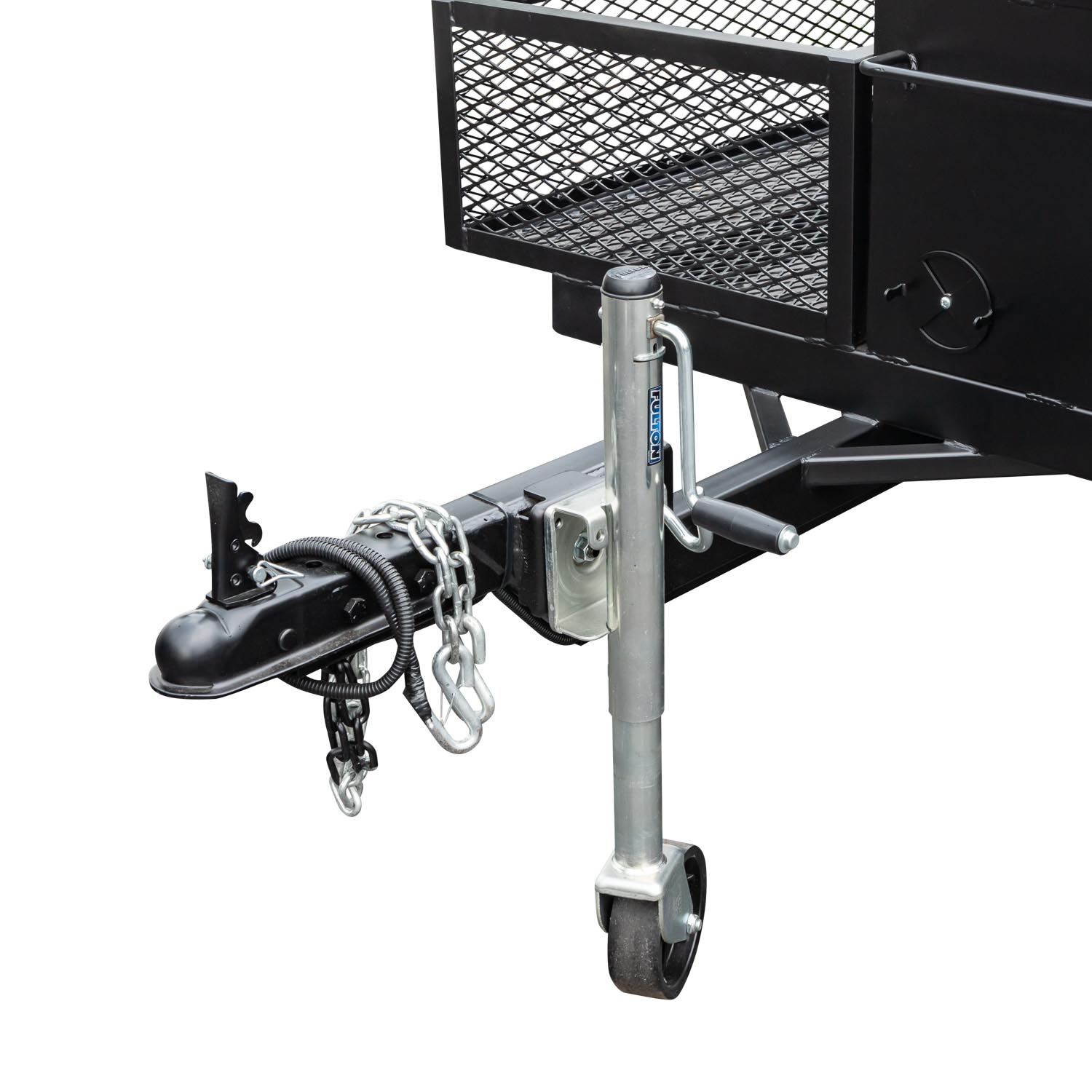

Trailer is built on a tubular frame and features a 2” ball hitch and safety chains, heavy-duty wheel jack, rubber torsion axle, road-worthy tires, and DOT-compliant flush-mount LED lights, reflector strips, and VIN plate.
We are a licensed trailer manufacturer and can provide a certificate of origin the trailer.

Usage Recommendations

For Smoking - we recommend using non petroleum based starters. Residue in the smoke from these starters can contaminate the cooking box with the potential to effect the flavor of the meat. The use of a torch or paper and kindling is most effective. Use approximately 25-30 lbs. of charcoal in fire box to get started. Once meat is placed in smoker, you can add wood in fire box for smoking. You can continue to use wood or charcoal (your choice). Add wood or charcoal as needed to maintain temperature where you want it. Optional charcoal basket holds approximately 40 lbs. of charcoal briquettes and ensures efficient even temperatures.

For Grilling - remove bottom grate from smoker and slide in optional charcoal pan. Put in your desired amount of charcoal and slide top grate above charcoal pan.

6 reviews for Meadow Creek TS250 Barbeque Smoker Trailer

Rated 5 out of 5
Steve Kwasnik – August 2, 2017
Absolutely the best and easiest to use cooker I have ever used!! 140# pigs, chickens, brisket….I have used it for all. Highly recommended.
[Reply]
Rated 5 out of 5
Paul Morgan (Smokee Bro’s of Halifax, Pa) – December 17, 2018
We just received our new Meadow Creek TS250 Smoker, complete with the BBQ-42 Chicken Cooker. We also loaded the build with other options like insulated fire box’s for the smoker and cooker, lot’s of stainless steel, third grate and the live smoke. Picking up the unit at RSS Distributors was a breeze as the crew was efficient and pleasant to deal with. The unit came shrink wrapped from the factory and we decided to remove the protective wrapping at RSS so we could all have a look. The finished product put a smile on everyone’s face, not just mine. The quality, attention to detail and color/appearance scheme is off the charts. The marketing at Meadow Creek is first class and put me at ease when placing the order for such a substantial piece of equipment. After receiving the product we couldn’t be happier with the build and quality. We now have three Meadow Creek Smokers (BX50 Water Smoker Trailer – PR72G Pig Roaster Trailer) and from a marketing standpoint, we believe that keeping the same brand of equipment is important for projecting professionalism to clients that expect first class food, presentation and equipment from top to bottom. Thank you Meadow Creek Welding, RSS Distributors in Manheim and the marketing efforts of Lavern and Henry for making it all possible!
[Reply]
Rated 5 out of 5
Calvin Keyes – December 25, 2018
The TS250 makes Bar-B-Queing easy and fun. I have owned my TS250 for over 2 years and learn something new every time I Que.
[Reply]
Rated 5 out of 5
Lee Jones – December 29, 2018
We love to BBQ, the last three years have mad our life’s so much easier using the T 250 smoker. We have a yearly Fourth of July family cookout, feeding roughly 125 family and friends. This unit has cut our cooking time down, and made it fun to cook so much meat. I love this unit, only change I might make is upgrade to the T 500!
Lee Jones from Michigan
Uploaded image(s):
[Reply]
Tony Currier – December 30, 2018
I purchased the TS 250 with bbq 42, insulated firebox stainless steel shelving and stacks. My two big cooks every year are cooking for my fire department and my sons lacrosse team. I also do beef jerky in the warming box . I also smoke goose duck blue fish bass and venison for my clubs game dinner every year.

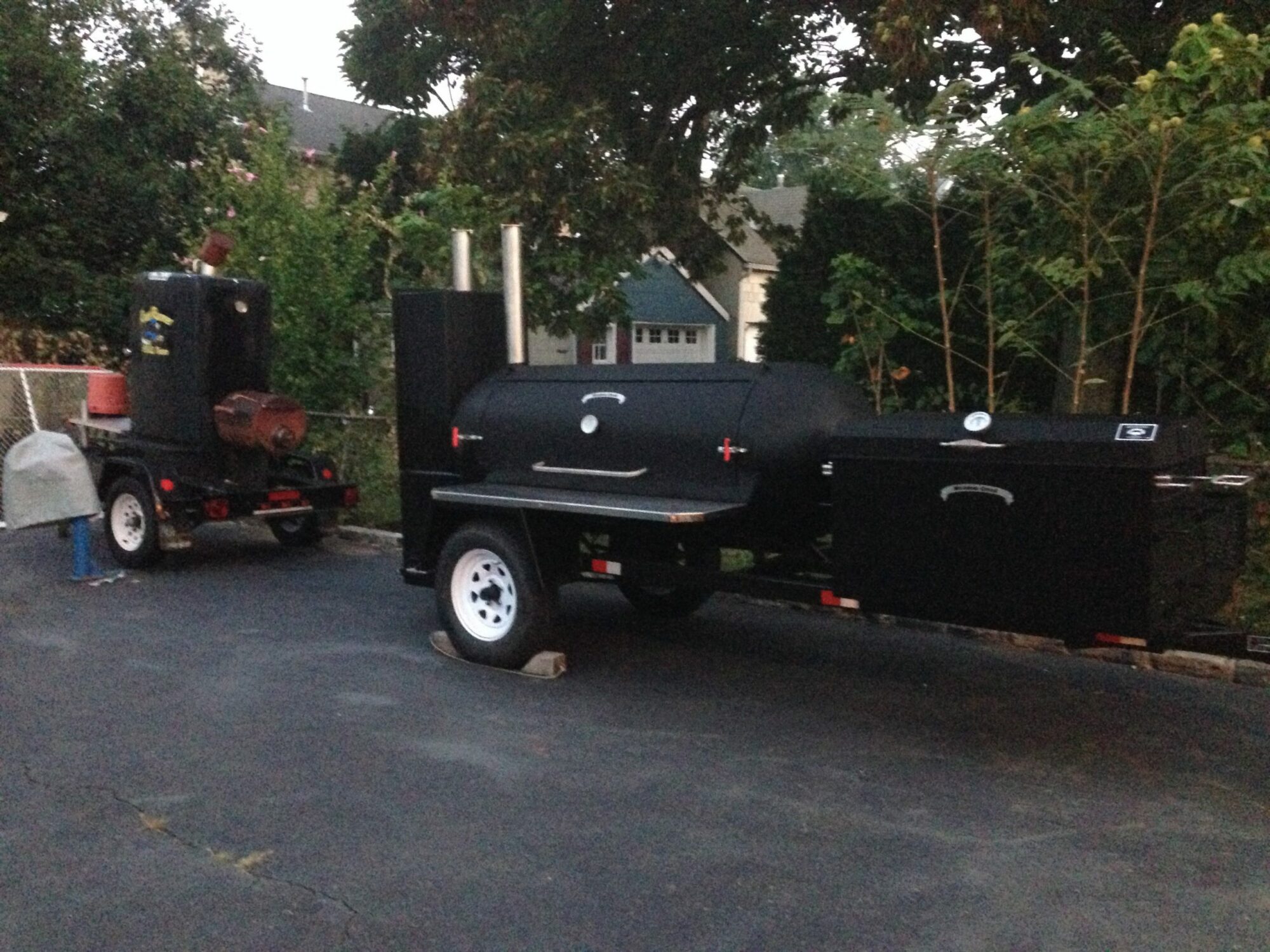

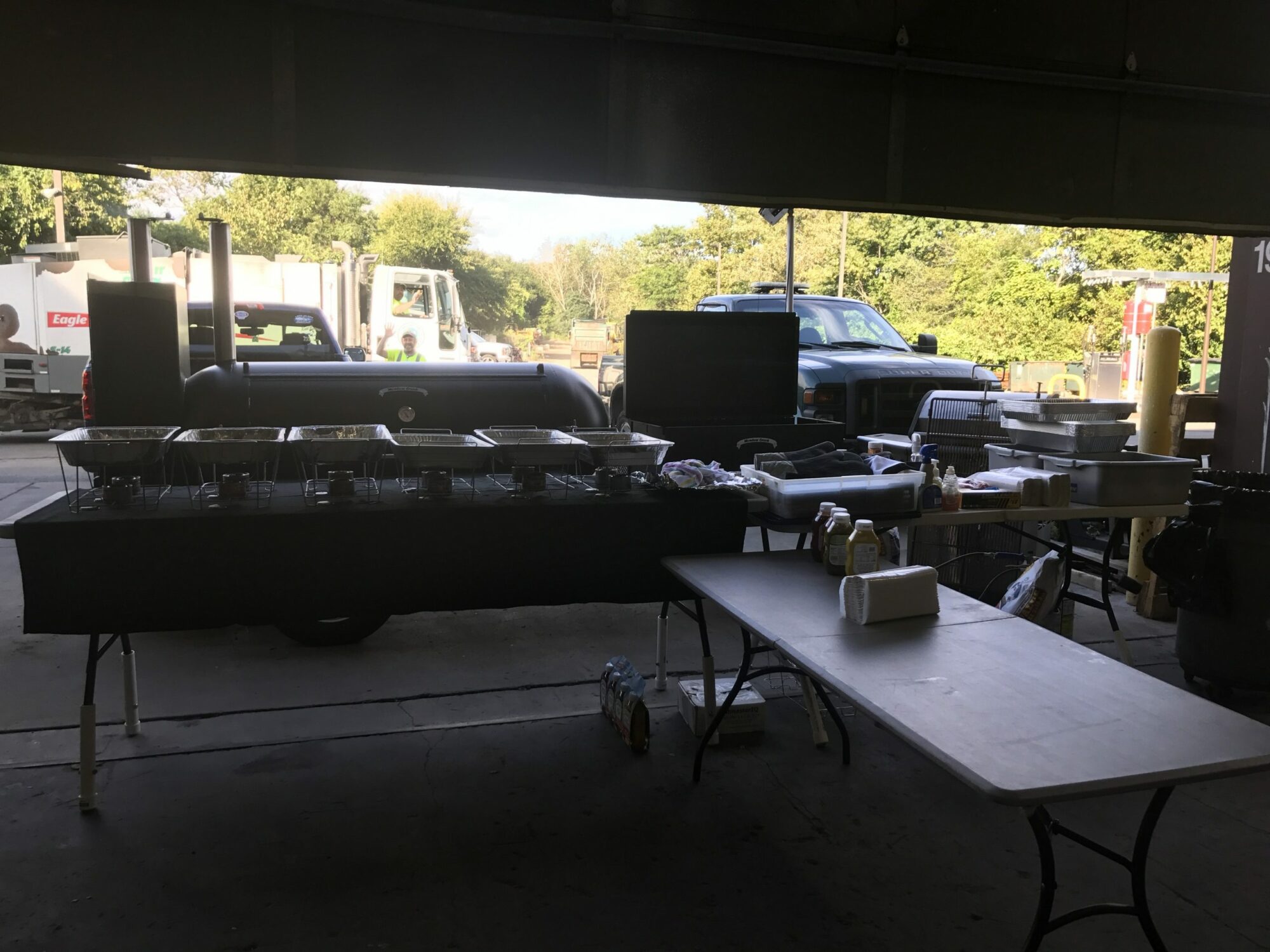

Uploaded image(s):
[Reply]
Rated 5 out of 5
Leonard S Tibbetts – December 31, 2018

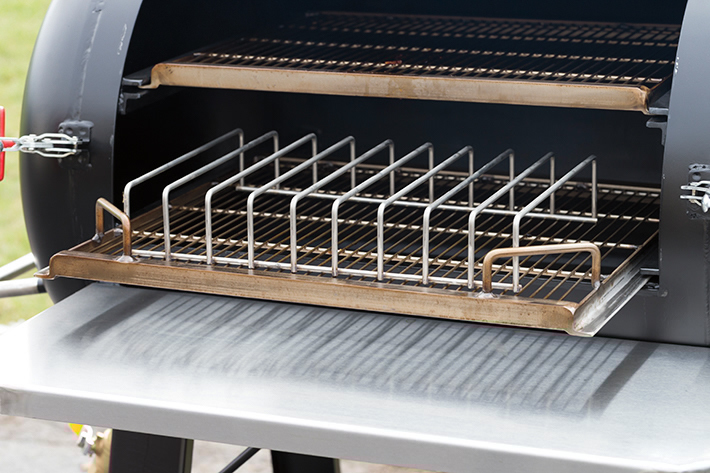

I have had a Meadow Creek TS250 P for a year. It is my third smoker & by far the best! It has an insulated stainless steel fire box & a stainless steel warming drawer. With three stainless steel racks & a stainless steel rib rack that holds 27 sides of ribs, I can smoke all the meat, ribs & salmon I want for my sons & their families, as well as for my bride of 55 years at one time. It is very efficient with the wood that is burned & hold temperatures extremely well. Everyone that sees it is very impressed with the quality of the workmanship of the smoker. The stainless steel shelves on both sides of the barrel make it very easy to place tools & my sprayers in close proximity to where they are needed and to remove the smoked food when it is ready. It is my third smoker, but also the last one I will ever need. The ash tray makes cleaning the ashes easy, and the removable racks much easier to clean. This smoker is a real WINNER!!!!
