Meadow Creek TS120P Barbeque Smoker

Meadow Creek TS120P Barbeque Smoker

(1 customer review)

$3,950.00 MSRP

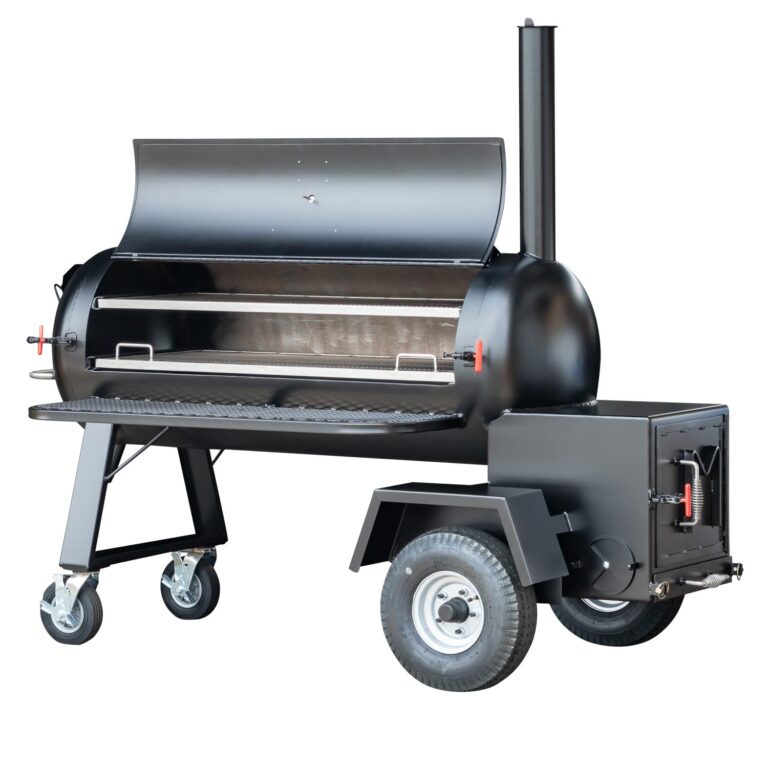

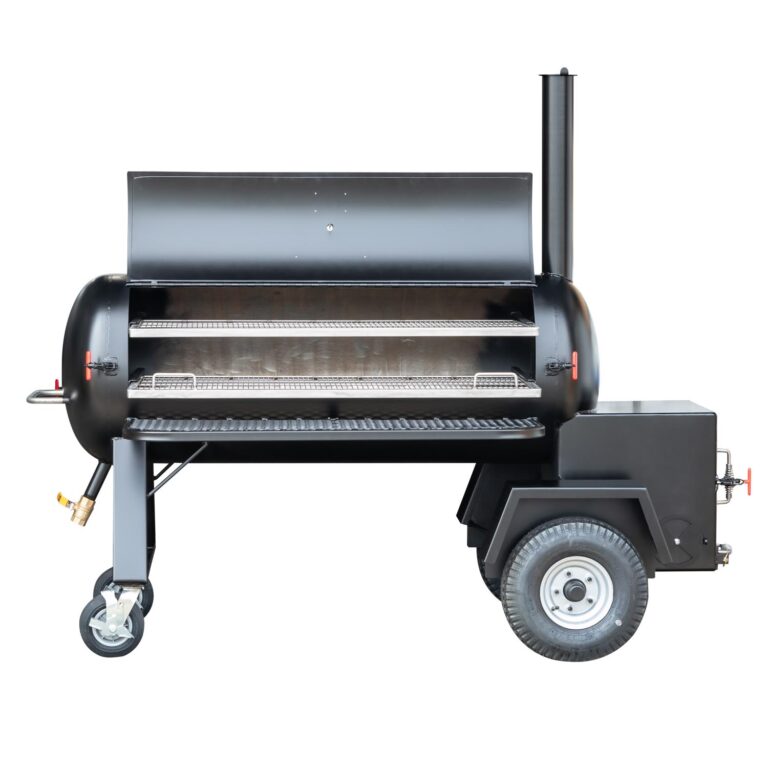

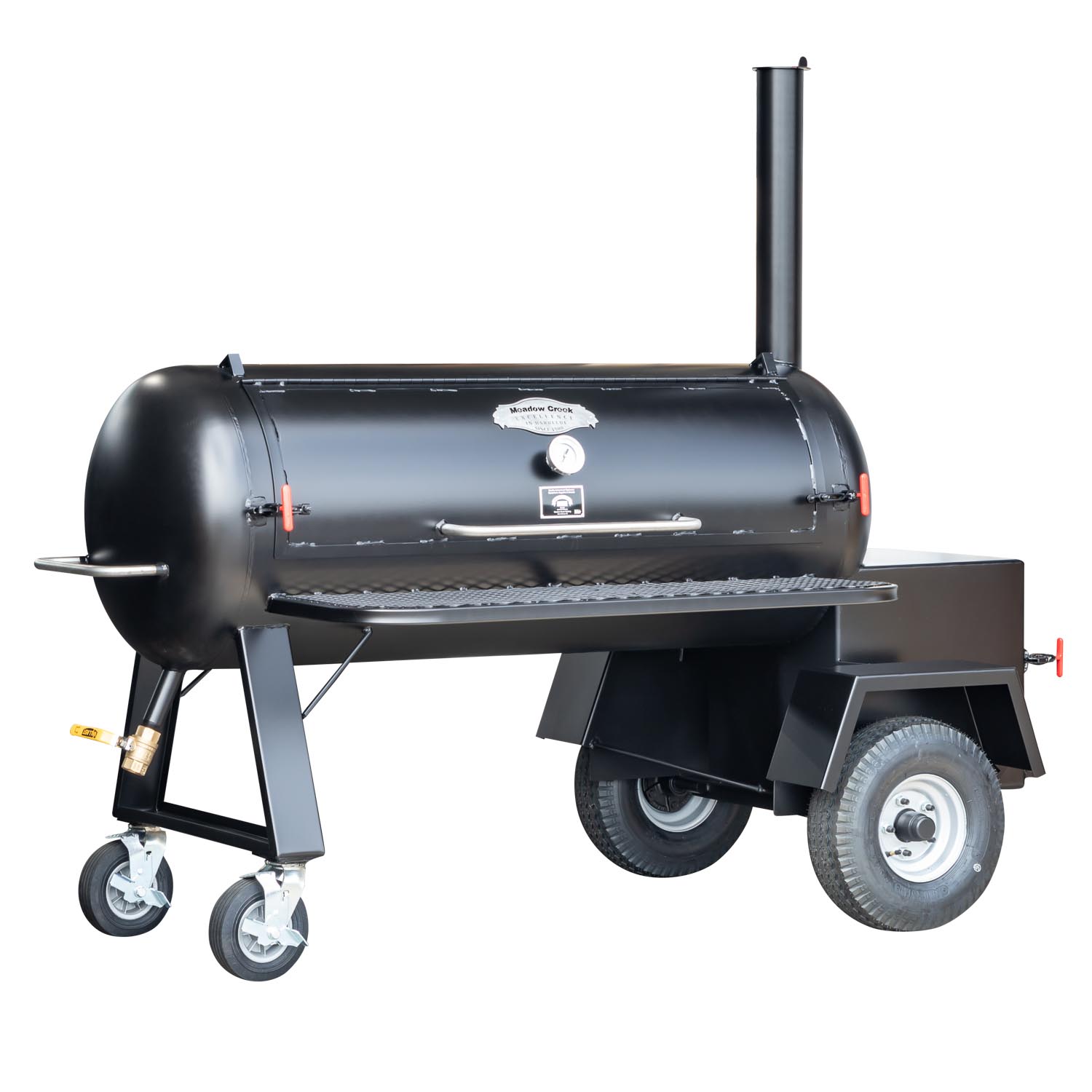

The TS120P BBQ Smoker is the TS120 BBQ Smoker without the trailer. If you want a Meadow Creek tank smoker with 11+ square feet of cooking area, but plan to keep your smoker on the patio or mostly in one area, this is a great choice for you. Reverse flow draft and rounded tank ends make it easy to maintain a steady temperature in this sweet smoker.

Options:

Customize

Note: Prices are manufacturer suggested retail and do not include tax or freight/local pickup fees. Prices may change without notice. Request a quote from your Meadow Creek dealer.

Categories: ,

Description

The TS120P BBQ Smoker is the TS120 BBQ Smoker without the trailer. If you want a Meadow Creek tank smoker with 11+ square feet of cooking area, but plan to keep your smoker on the patio or mostly in one area, this is a great choice for you. Reverse flow draft and rounded tank ends make it easy to maintain a steady temperature in this sweet smoker.

This smoker comes standard with “extras” such as food grade stainless steel grates and a slide-out ash pan. This innovative ash pan makes clean-up quick and easy and helps you get more heat out of the same amount of fuel since the ashes can fall away from the fire. 18″ tires and locking casters make it easy to move the smoker on hard surfaces and lock it into place.

Built by experts in welding and trailer manufacturing, this high end BBQ smoker is ready to help you enjoy easy and profitable barbecues for years to come.

Read more about Meadow Creek Smokers Spec Sheet Owner Manual

Additional information

Overall Dimensions

75”h x 90”l x 46”w

Cooking Area

13.93 sq. ft. (2,005 sq. in.)

Top Grate Dimensions

20” x 47.75”

Space Above Top Grate

4.25”

Bottom Grate Dimensions

22” x 47.75”

Space Between Grates

6.5”

Grate Style

Wire Grid With 1/2” Spacing

Tank Dimensions

24” x 68” (120-gallon)

Metal Thickness on Tank

0.1875”

Fire Box Dimensions

20.5” Cube (Inside: 20” x 20” x 15”)

Metal Thickness on Fire Box

0.25”

Optional Warming Box Dimensions

12” x 18” (Inside)

Warming Box Grate Dimensions

11.5” x 17.5”

Space Between Grates in Warming Box

8.5”

Net Weight

875 lbs.

Shipping Weight

1,000 lbs.

Capacity of Pork Butts

21-22

Capacity of Baby Back Ribs

15-18

Capacity of Spare Ribs

12-14

Capacity of Whole Briskets

13-14

Capacity of Whole Chickens

30-31

Capacity of Whole Pigs

100 lbs.

Features of the TS120P Push-Around BBQ Smoker

  • Reverse flow draft

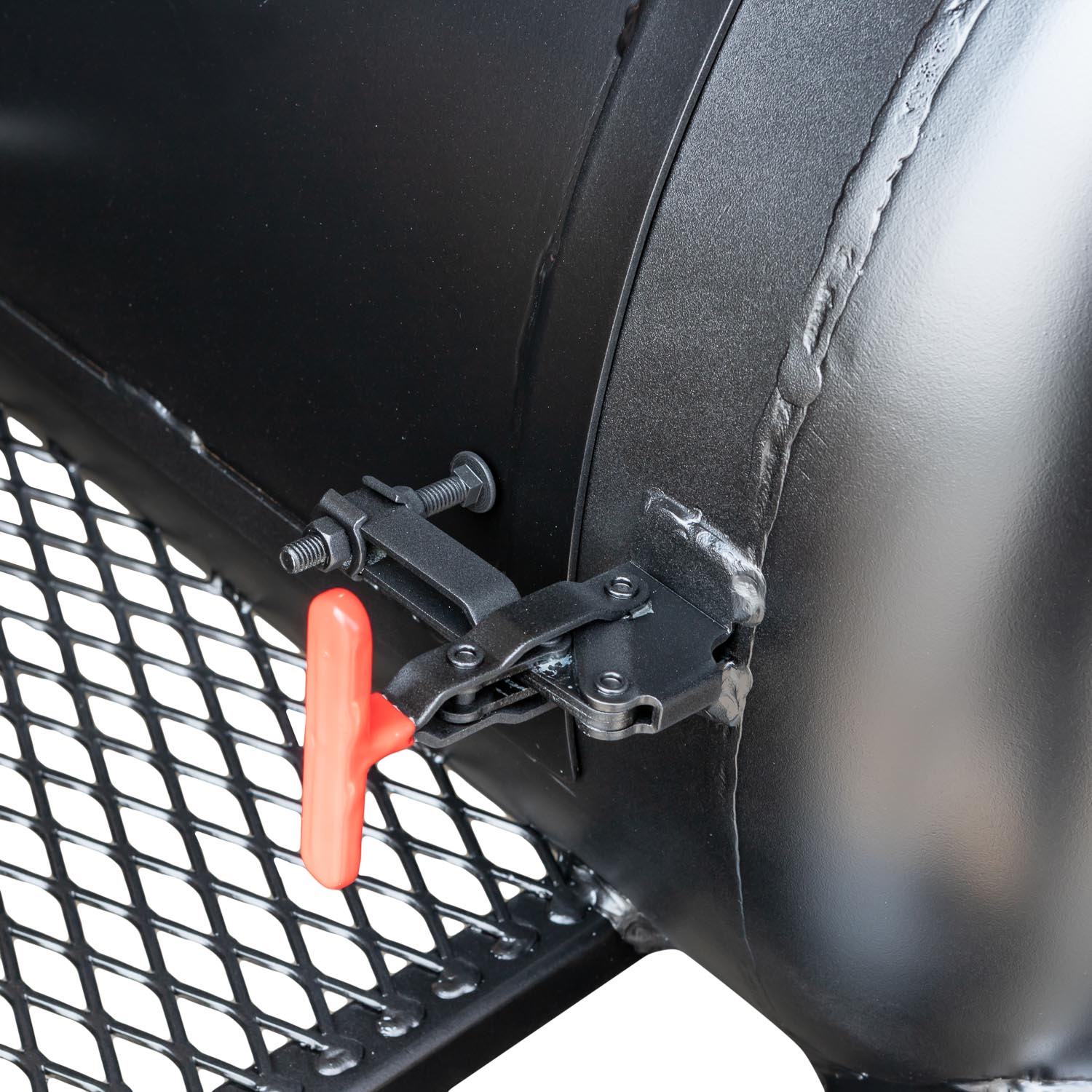

  • Positive-lock latches on all doors

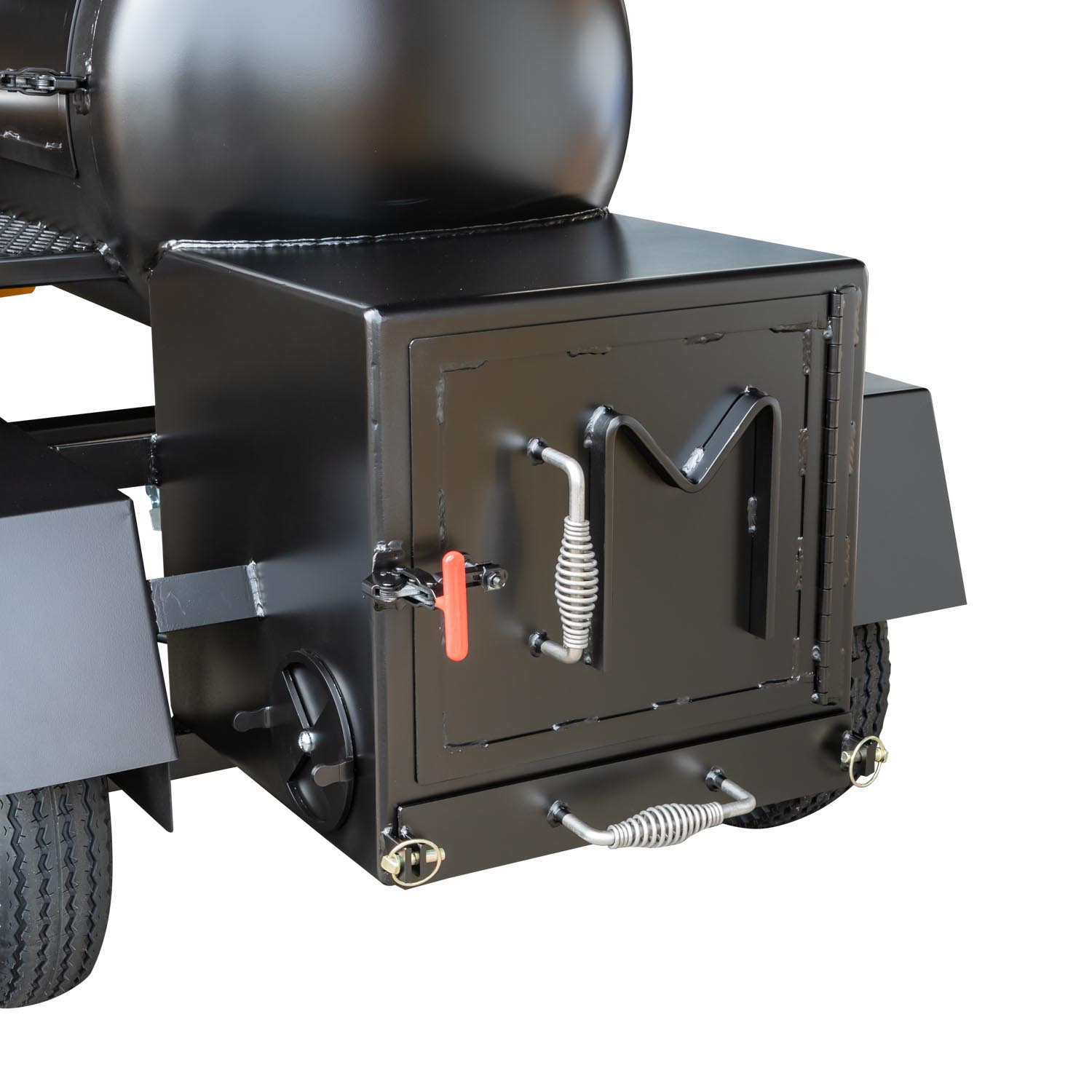

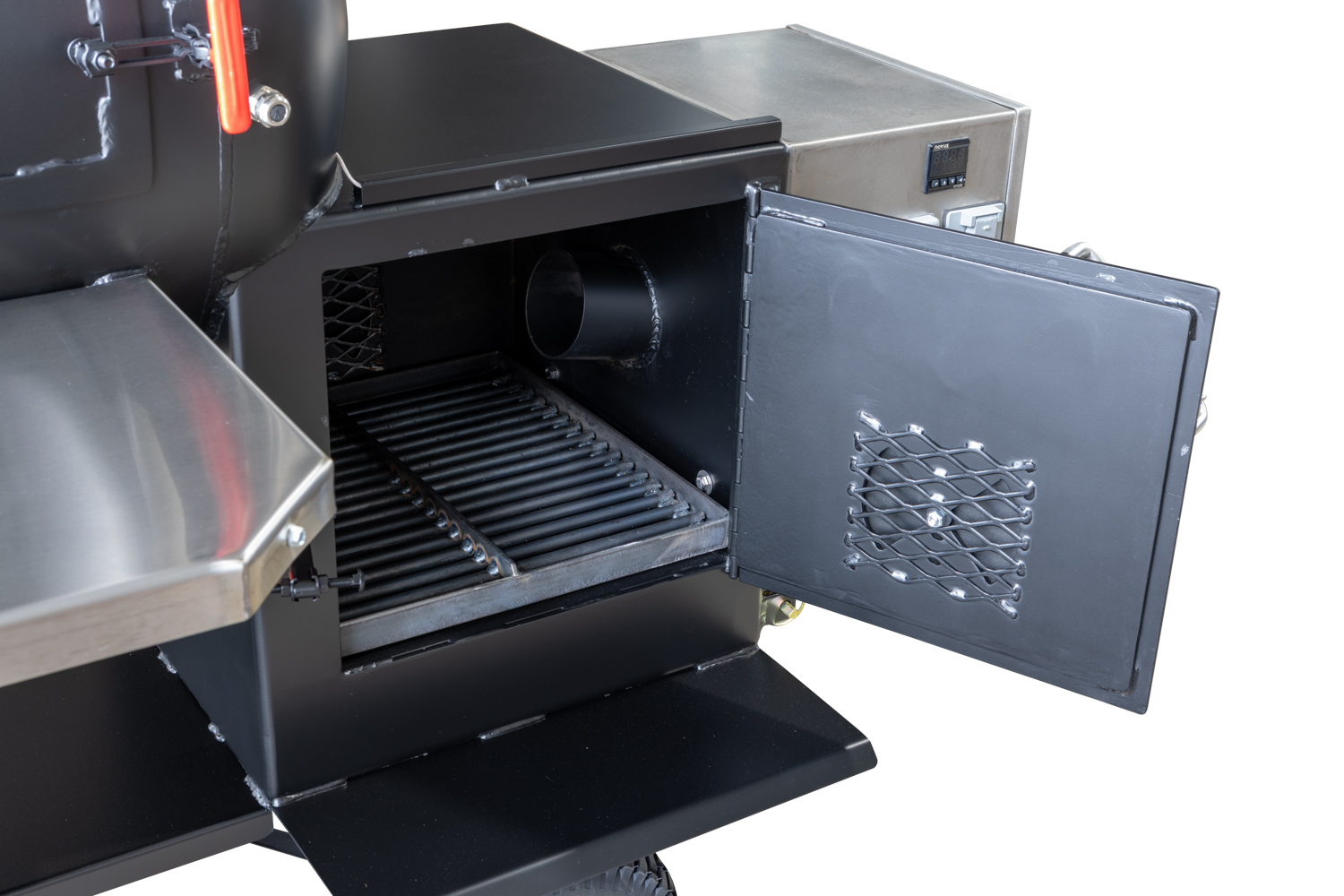

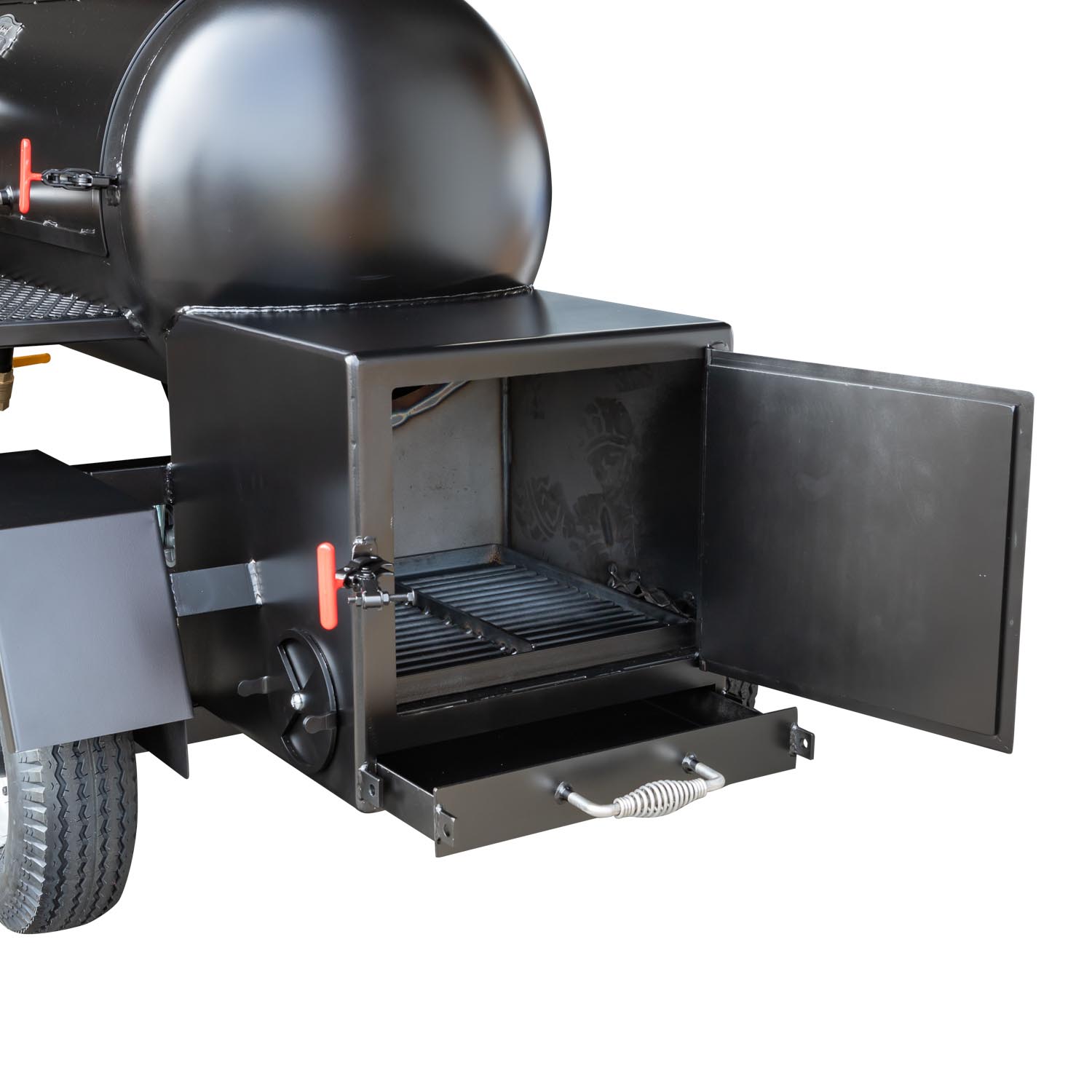

  • Grate in firebox with slide-out ash pan

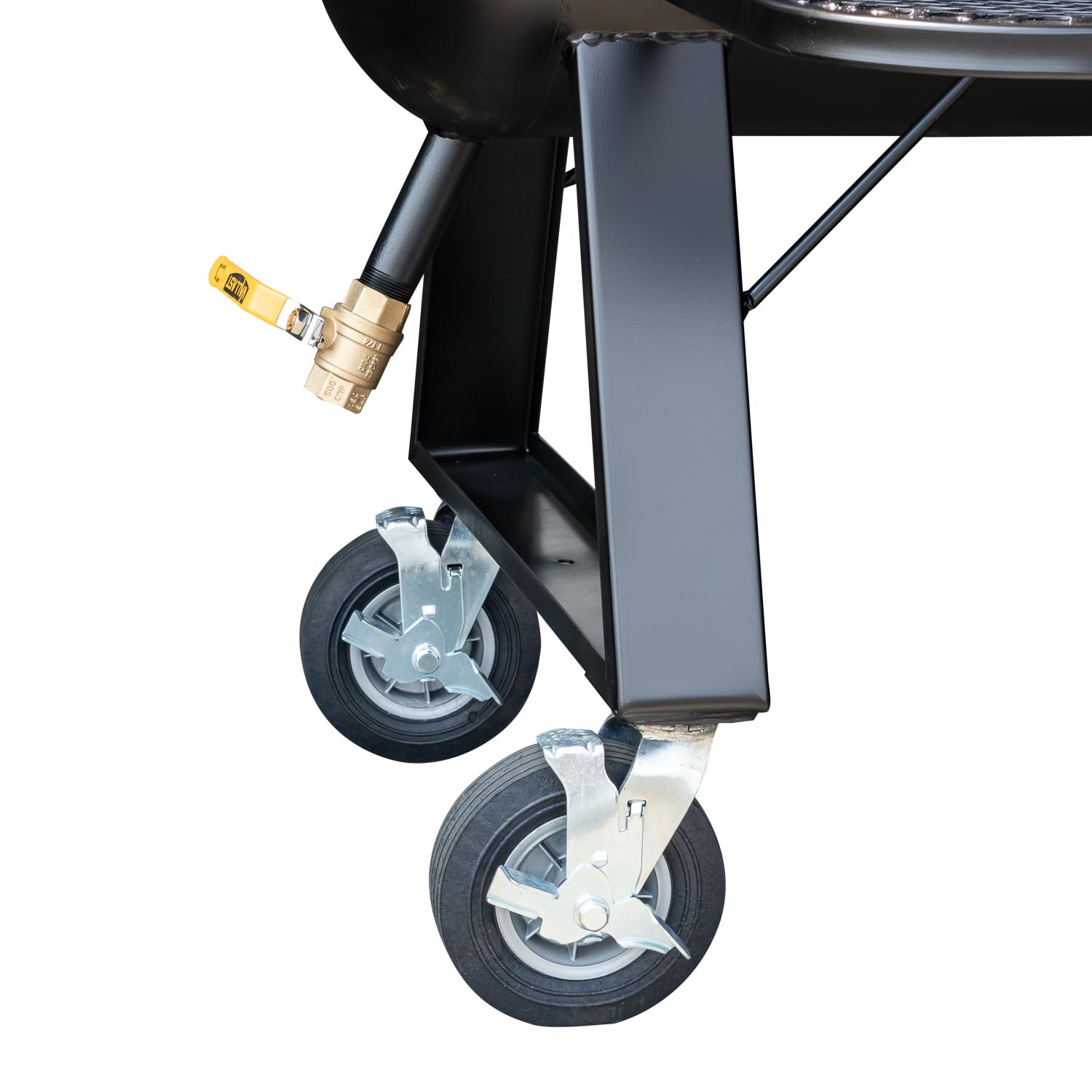

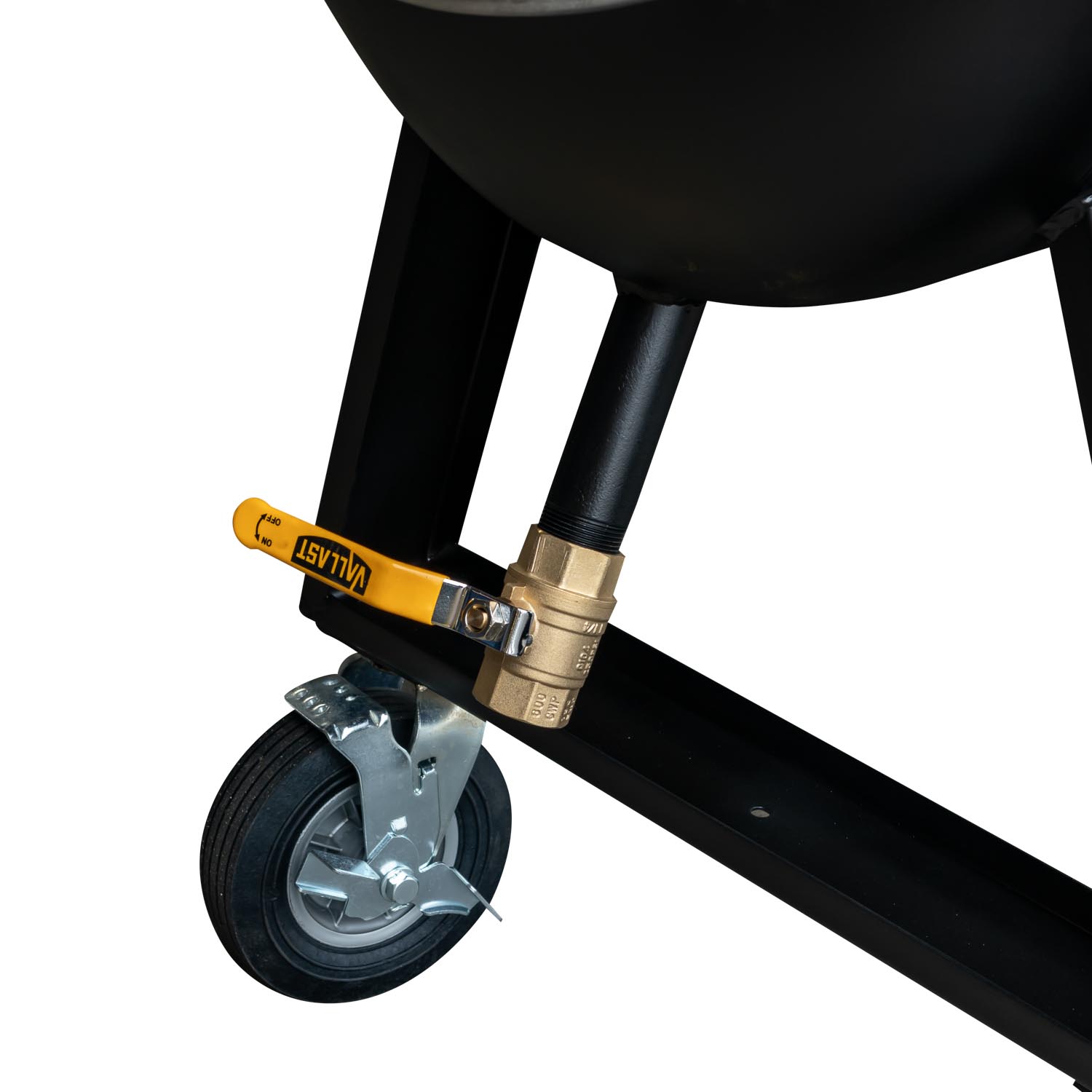

  • Drain with ball valve for draining the tank
  • Stainless steel handles
  • Door on one side of smoker

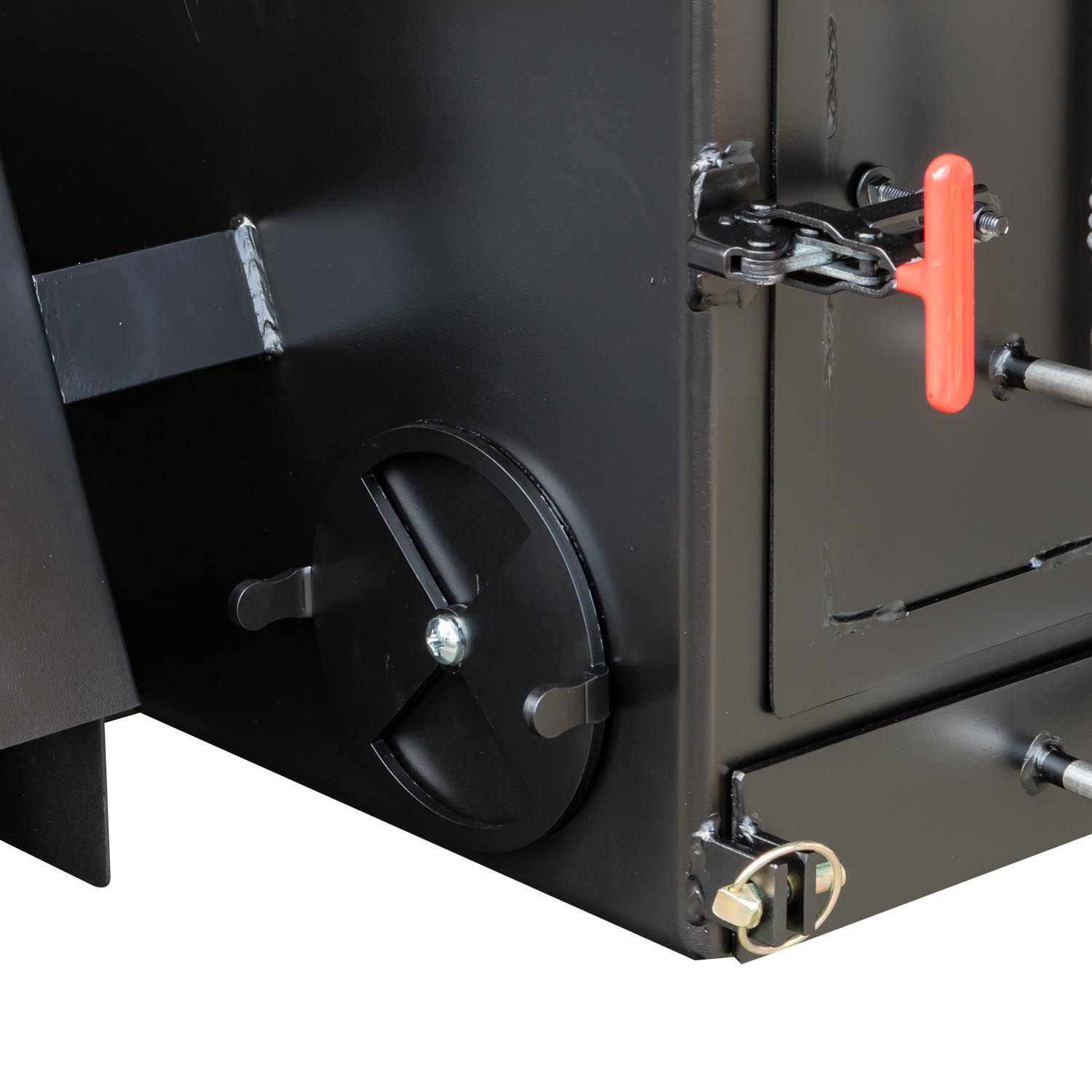

  • Stay cool handles on slide vents and firebox door
  • Exterior work shelf

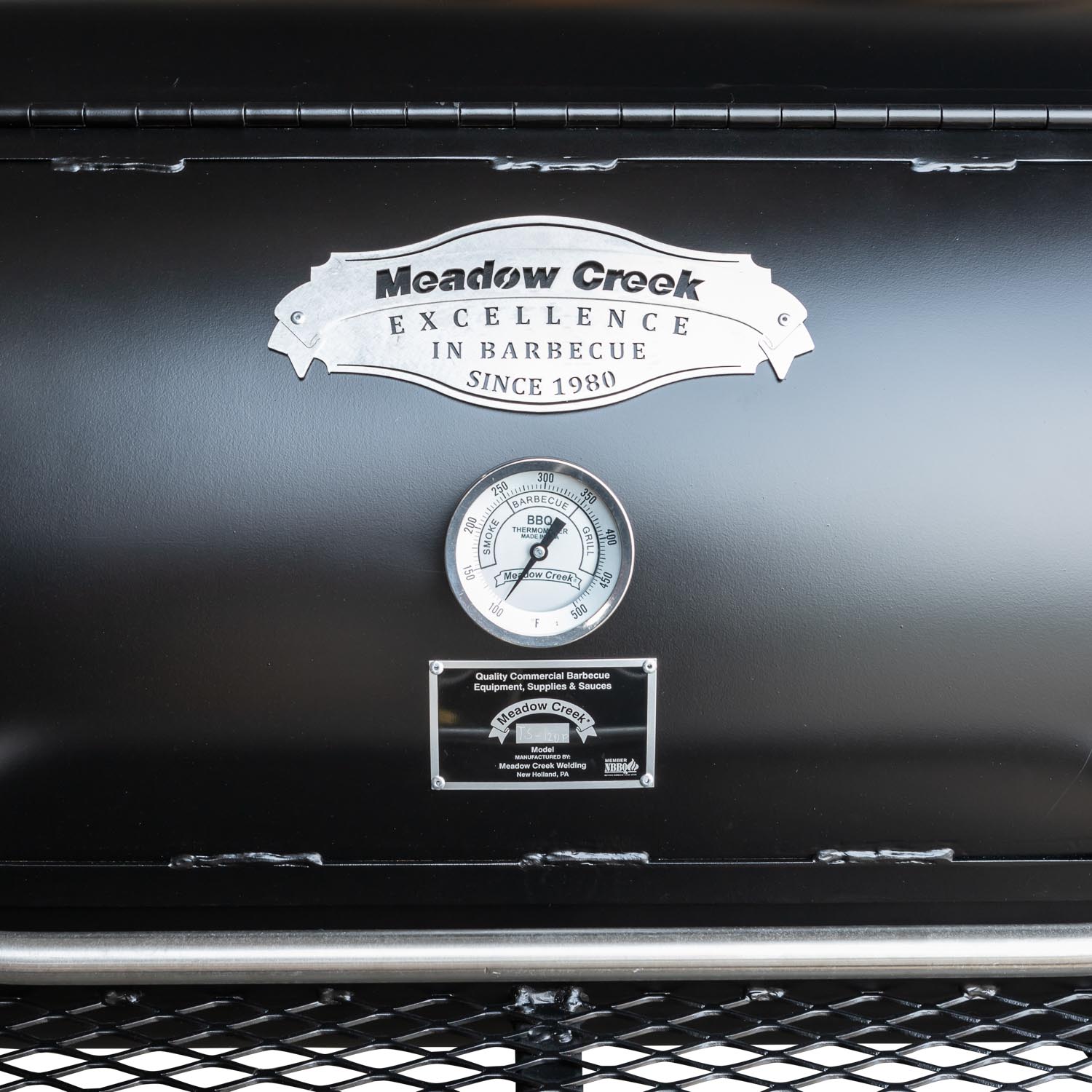

  • Stainless steel calibratable thermometer
  • 18" tires and heavy-duty locking casters
  • Heat baffles on firebox protect the tires from excessive heat.

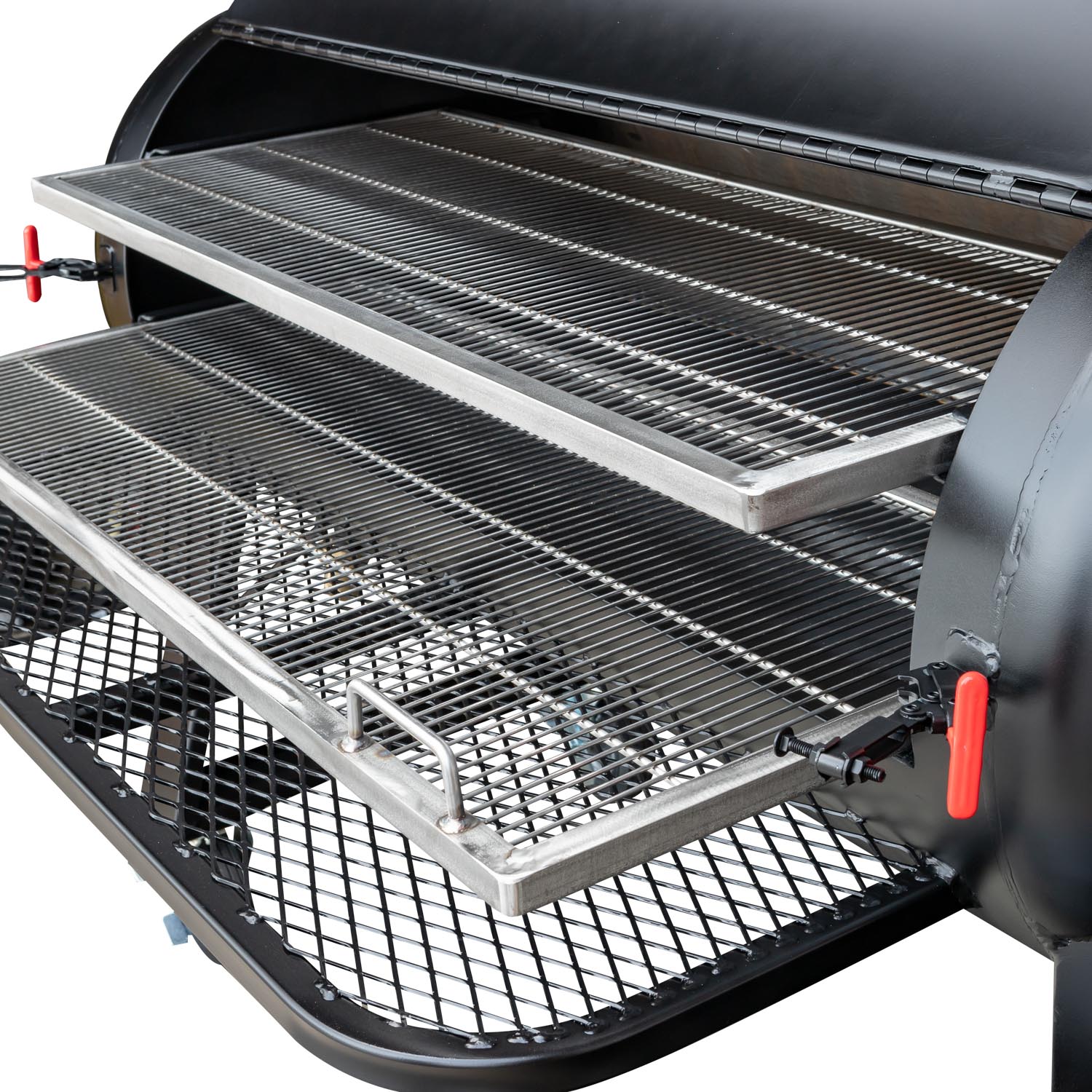

  • Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
  • Built in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
  • Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.

Related Stories and Photos

Usage Recommendations

For Smoking - we recommend using non petroleum based starters. Residue in the smoke from these starters can contaminate the cooking box with the potential to affect the flavor of the meat. The use of a torch or paper and kindling is most effective. Use approximately 25-30 lbs. of charcoal in fire box to get started. Once meat is placed in smoker, you can add wood in fire box for smoking. You can continue to use wood or charcoal (your choice). Add wood or charcoal as needed to maintain temperature where you want it. Optional charcoal basket holds approximately 40 lbs. of charcoal briquettes and ensures efficient, even temperatures.

For Grilling - remove bottom grate from smoker and slide in optional charcoal pan. Put in your desired amount of charcoal and slide top grate above charcoal pan.

1 review for Meadow Creek TS120P Barbeque Smoker

  1. Michael Elliott

    I’ve owned mine for about 3 or 4 years now. We use mostly for competitions. We’ve also do some vending. I absolutely love it!! I got the charcoal pan for mine too. Works great. Love the reverse flow. I think the reverse flow is far far better as far as smoke and temperature regulation. I’m thinking of replacing my Oklahoma Joe with the TS 70 on my deck. I highly recommend!! You won’t be sorry.
